ZRE181L-GEFDK (2014)
Toyota Corolla
(1401- )ZRE18#..SAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-02020 |
NDE180,NRE180,ZRE181..D..SA AIR CONDITIONER-WITHOUT |
1 | ||
| 88374-02020 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-02020 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 88374-02020 |
NDE180,NRE180,ZRE181..D..SA AIR CONDITIONER-WITHOUT |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-02140 |
NDE180,NRE180,ZRE181..D..SA AIR CONDITIONER-WITHOUT |
1 | ||
| 88375-02140 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-02150 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 88375-02150 |
NDE180,NRE180,ZRE181..D..SA AIR CONDITIONER-WITHOUT |
1 | ||
| 88450 - CONDENSER ASSY, W/RECEIVER | ||||
| 88450-02300 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 88450-02300 |
NDE180,NRE180,ZRE181..D..SA AIR CONDITIONER-WITHOUT |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 16716-28010 |
NDE180,NRE180,ZRE181..D..SA AIR CONDITIONER-WITHOUT |
4 | ||
| 16716-28010 |
NDE180,NRE180,ZRE18#..SAP |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 16716-28010 |
NDE180,NRE180,ZRE181..D..SA AIR CONDITIONER-WITHOUT |
4 | ||
| 16716-28010 |
NDE180,NRE180,ZRE18#..SAP |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 16716-28010 |
NDE180,NRE180,ZRE181..D..SA AIR CONDITIONER-WITHOUT |
4 | ||
| 16716-28010 |
NDE180,NRE180,ZRE18#..SAP |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 16716-28010 |
NDE180,NRE180,ZRE181..D..SA AIR CONDITIONER-WITHOUT |
4 | ||
| 16716-28010 |
NDE180,NRE180,ZRE18#..SAP |
4 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-02220 |
NDE180,NRE180,ZRE181..D..SA AIR CONDITIONER-WITHOUT |
1 | ||
| 88474-02220 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-02880 |
ZRE18#..SAP |
1 | ||
| 88703-02880 |
ZRE181..D..SA AIR CONDITIONER-WITHOUT |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-0Z190 |
ZRE18#..SAP |
1 | ||
| 88704-0Z190 |
ZRE181..D..SA AIR CONDITIONER-WITHOUT |
1 | ||
| 88707 - PIPE SUB-ASSY, SUCTION | ||||
| 88707-02250 |
NDE180,NRE180,ZRE181..D..SA AIR CONDITIONER-WITHOUT |
1 | ||
| 88707-02250 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-0Z500 |
ZRE18#..GEN..SAP |
1 | ||
| 88710-0Z480 |
NRE180,ZRE18#..SA |
1 | ||
| 88710-0Z480 |
NRE180,ZRE181..D..SA AIR CONDITIONER-WITHOUT |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-33020 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 88719-33020 |
NDE180,NRE180,ZRE181..D..SA AIR CONDITIONER-WITHOUT |
1 | ||
| Common parts | ||||
| 88688-0Z600 | ||||
| 88718-1E040 | ||||
| 88718-1E110 | ||||
| 88718-68020 | ||||
| 90068-14022 | ||||
| 90068-14023 | ||||
| 90068-14024 | ||||
| 91551-80625 | ||||
| 91551-A0618 | ||||
| 91671-80616 | ||||

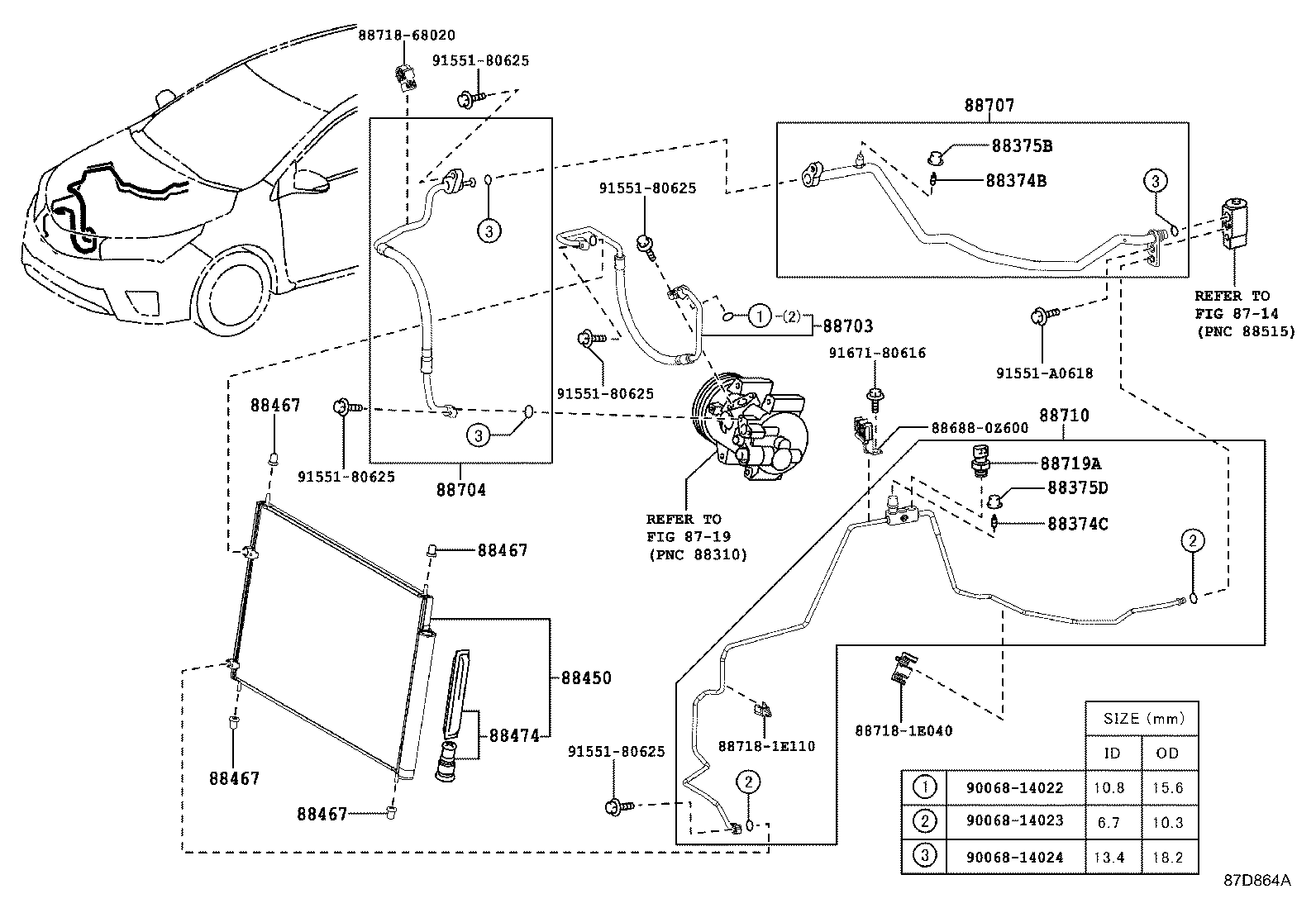

| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
