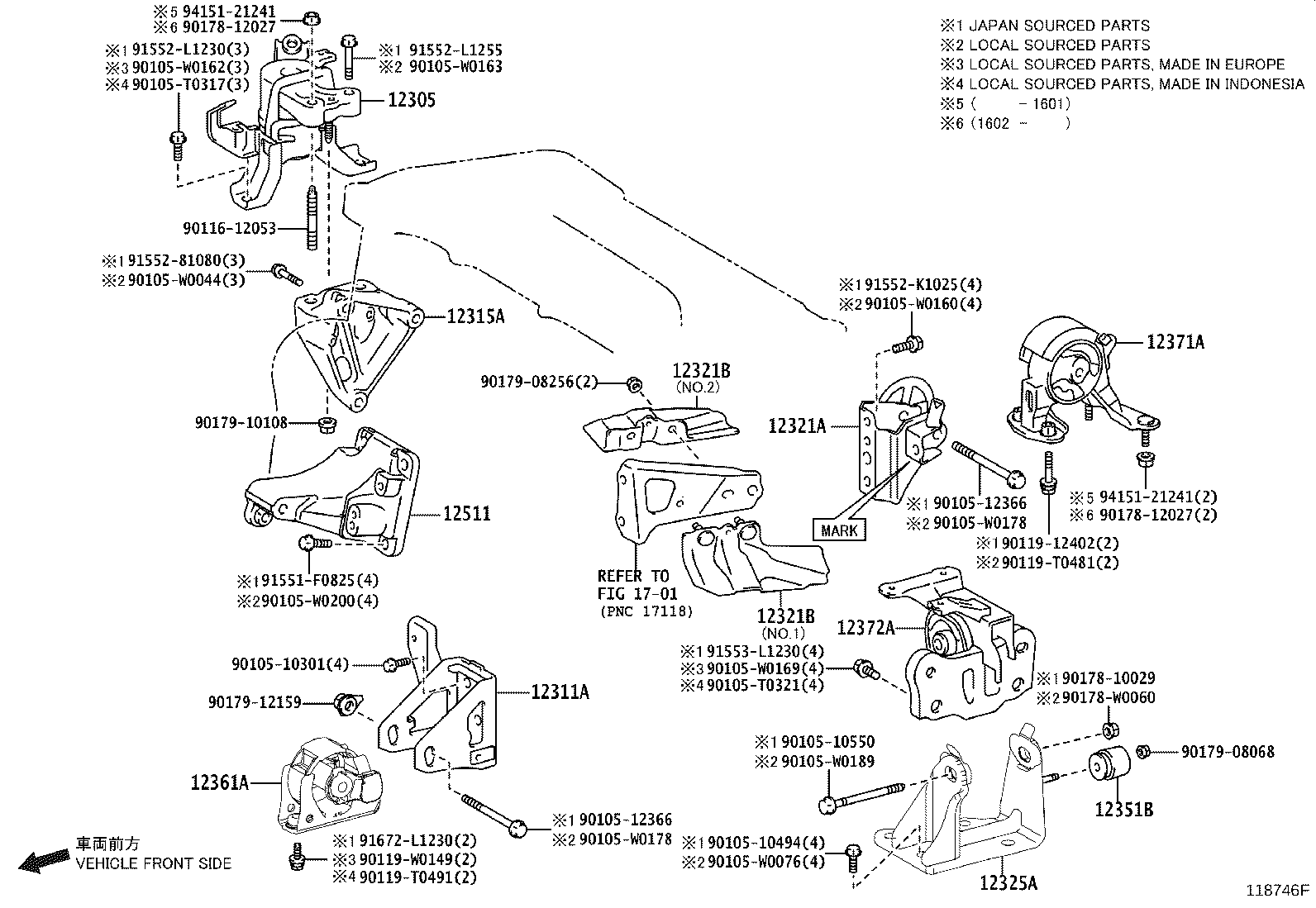

ZRE181L-GEFDK (2014)
Toyota Corolla
(1401-1606)1ZRFE,2ZRFE..6F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH | ||||
| 12305-0T150 |
1ZRFE,2ZRFE..ZRE18#..SAP |
1 | ||
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-0T340 |
1ZRFE,2ZRFE..ZRE18#..SAP MADE IN EUROPE |
1 | ||
| 12311-0T390 |
1ZRFE,2ZRFE..ZRE18#..SAP MADE IN SOUTH AFRICA |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-37030 |
1ZRFE,2ZRFE..ZRE18#..SAP |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-0T130 |
1ZRFE,2ZRFE..ZRE18#..6F..SAP MARK = AX |
1 | ||
| 12321-0T150 |
1ZRFE,2ZRFE..ZRE18#..6F..SAP MARK = NZ |
1 | ||
| 12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT | ||||
| 43409-12060 |
1ZRFE,2ZRFE..ZRE18#..SAP NO.1 |
1 | ||
| 43498-12051 |
1ZRFE,2ZRFE..ZRE18#..SAP NO.2 |
1 | ||
| 12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT | ||||
| 43409-12060 |
1ZRFE,2ZRFE..ZRE18#..SAP NO.1 |
1 | ||
| 43498-12051 |
1ZRFE,2ZRFE..ZRE18#..SAP NO.2 |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-0T140 |
1ZRFE,2ZRFE..ZRE18#..6F..SAP MARK = AX |
1 | ||
| 12325-0T160 |
1ZRFE,2ZRFE..ZRE18#..6F..SAP MARK=GD |
1 | ||
| 12351B - DAMPER, ENGINE MOUNTING | ||||
| 12351-0R010 |
1ZRFE,2ZRFE..ZRE18#..6F..SAP (L) |
1 | ||
| 12351-26010 |
1ZRFE,2ZRFE..ZRE18#..6F..SAP (J) |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-0T170 |
1ZRFE,2ZRFE..ZRE18#..6F |
1 | ||
| 12361-0T171 |
1ZRFE,2ZRFE..ZRE18#..6F..SAP |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-0T200 |
1ZRFE,2ZRFE..ZRE18#..6F..SAP |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-0T270 |
1ZRFE,2ZRFE..ZRE18#..6F..SAP |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-0T020 |
1ZRFE,2ZRFE..ZRE18#..SAP (L) |
1 | ||
| 12511-37010 |
1ZRFE,2ZRFE..ZRE18#..SAP (J) |
1 | ||
| Common parts | ||||
| 90105-10301 | ||||
| 90105-10494 | ||||
| 90105-10550 | ||||
| 90105-12366 | ||||
| 90105-T0317 | ||||
| 90105-T0321 | ||||
| 90105-W0044 | ||||
| 90105-W0076 | ||||
| 90105-W0160 | ||||
| 90105-W0162 | ||||
| 90105-W0163 | ||||
| 90105-W0169 | ||||
| 90105-W0178 | ||||
| 90105-W0189 | ||||
| 90105-W0200 | ||||
| 90116-12053 | ||||
| 90119-12402 | ||||
| 90119-T0481 | ||||
| 90119-T0491 | ||||
| 90119-W0149 | ||||
| 90178-10029 | ||||
| 90178-12027 | ||||
| 90178-W0060 | ||||
| 90179-08068 | ||||
| 90179-08256 | ||||
| 90179-10108 | ||||
| 90179-12159 | ||||
| 91551-F0825 | ||||
| 91552-81080 | ||||
| 91552-K1025 | ||||
| 91552-L1230 | ||||
| 91552-L1255 | ||||
| 91553-L1230 | ||||
| 91672-L1230 | ||||
| 94151-21241 | ||||
| Linked diagrams | ||||
| 1701 | ||||

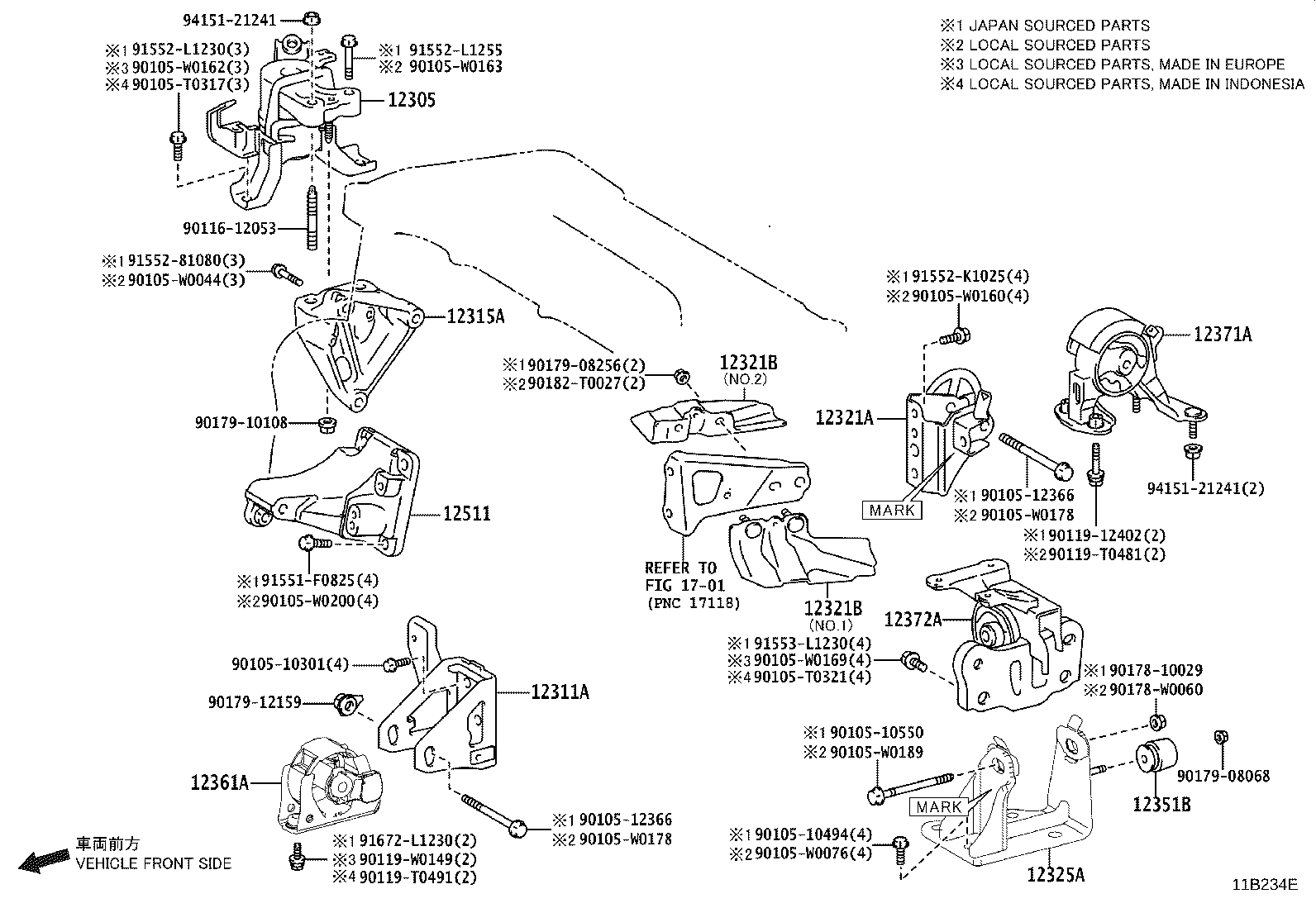

(1606- )1ZRFE,2ZRFE..6F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH | ||||
| 12305-0T150 |
1ZRFE,2ZRFE..ZRE18#..SAP |
1 | ||
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-0T340 |
1ZRFE,2ZRFE..ZRE18#..SAP MADE IN EUROPE |
1 | ||
| 12311-0T390 |
1ZRFE,2ZRFE..ZRE18#..SAP MADE IN SOUTH AFRICA |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-37030 |
1ZRFE,2ZRFE..ZRE18#..SAP |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-0T130 |
1ZRFE,2ZRFE..ZRE18#..6F..SAP MARK = AX |
1 | ||
| 12321-0T150 |
1ZRFE,2ZRFE..ZRE18#..6F..SAP MARK = NZ |
1 | ||
| 12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT | ||||
| 43409-12060 |
1ZRFE,2ZRFE..ZRE18#..SAP NO.1 |
1 | ||
| 43498-12051 |
1ZRFE,2ZRFE..ZRE18#..SAP NO.2 |
1 | ||
| 12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT | ||||
| 43409-12060 |
1ZRFE,2ZRFE..ZRE18#..SAP NO.1 |
1 | ||
| 43498-12051 |
1ZRFE,2ZRFE..ZRE18#..SAP NO.2 |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-0T140 |
1ZRFE,2ZRFE..ZRE18#..6F..SAP MARK = AX |
1 | ||
| 12325-0T160 |
1ZRFE,2ZRFE..ZRE18#..6F..SAP MARK=GD |
1 | ||
| 12351B - DAMPER, ENGINE MOUNTING | ||||
| 12351-0R010 |
1ZRFE,2ZRFE..ZRE18#..6F..SAP (L) |
1 | ||
| 12351-26010 |
1ZRFE,2ZRFE..ZRE18#..6F..SAP (J) |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-0T170 |
1ZRFE,2ZRFE..ZRE18#..6F |
1 | ||
| 12361-0T171 |
1ZRFE,2ZRFE..ZRE18#..6F..SAP |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-0T200 |
1ZRFE,2ZRFE..ZRE18#..6F..SAP |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-0T270 |
1ZRFE,2ZRFE..ZRE18#..6F..SAP |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-0T020 |
1ZRFE,2ZRFE..ZRE18#..SAP (L) |
1 | ||
| 12511-37010 |
1ZRFE,2ZRFE..ZRE18#..SAP (J) |
1 | ||
| Common parts | ||||
| 90105-10301 | ||||
| 90105-10494 | ||||
| 90105-10550 | ||||
| 90105-12366 | ||||
| 90105-T0317 | ||||
| 90105-T0321 | ||||
| 90105-W0044 | ||||
| 90105-W0076 | ||||
| 90105-W0160 | ||||
| 90105-W0162 | ||||
| 90105-W0163 | ||||
| 90105-W0169 | ||||
| 90105-W0178 | ||||
| 90105-W0189 | ||||
| 90105-W0200 | ||||
| 90116-12053 | ||||
| 90119-12402 | ||||
| 90119-T0481 | ||||
| 90119-T0491 | ||||
| 90119-W0149 | ||||
| 90178-10029 | ||||
| 90178-W0060 | ||||
| 90179-08068 | ||||
| 90179-08256 | ||||
| 90179-10108 | ||||
| 90179-12159 | ||||
| 90182-T0027 | ||||
| 91551-F0825 | ||||
| 91552-81080 | ||||
| 91552-K1025 | ||||
| 91552-L1230 | ||||
| 91552-L1255 | ||||
| 91553-L1230 | ||||
| 91672-L1230 | ||||
| 94151-21241 | ||||
| Linked diagrams | ||||
| 1701 | ||||
