ZRE181L-DEXDKV (2016)

Toyota Corolla

Production Jun 2016 - Jan 2019
Engine 1ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(1306- )LHD

Click highlighted areas on diagram

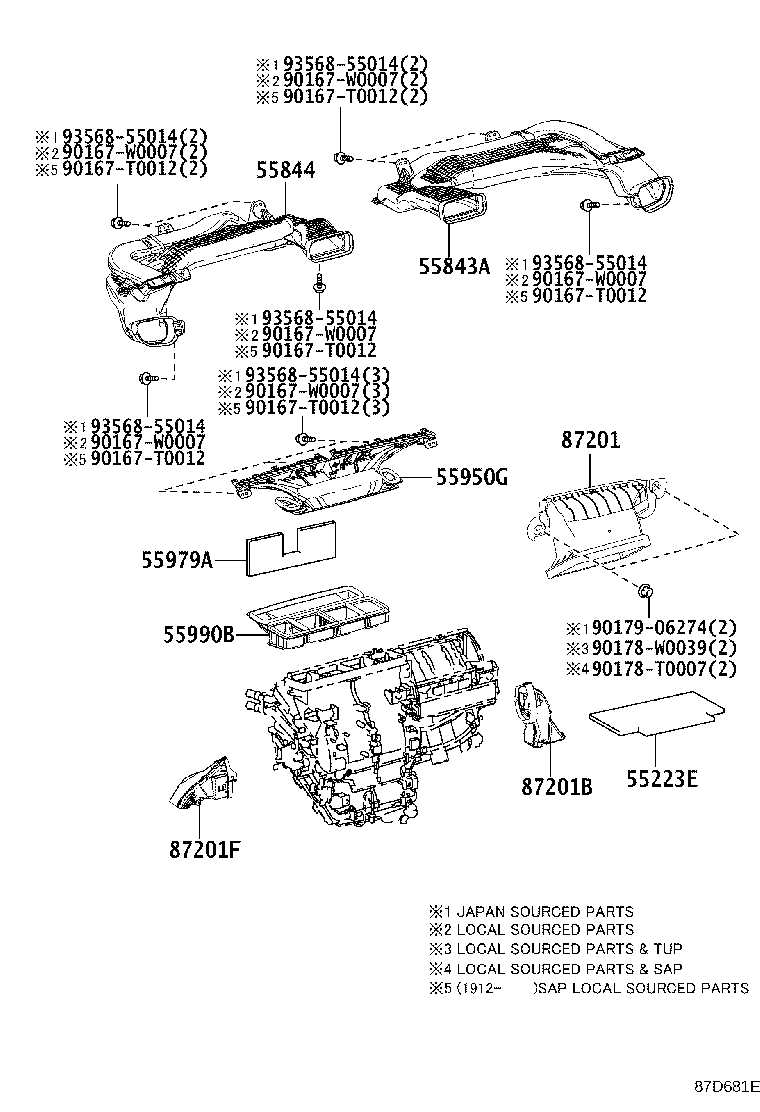

AIR DUCT

diagram 55223E 55843A 55844 55950G 55979A 55990B 87201 87201B 87201F 90167T0012 90167T0012 90167T0012 90167T0012 90167T0012 90167T0012 90167W0007 90167W0007 90167W0007 90167W0007 90167W0007 90167W0007 90178T0007 90178W0039 9017906274 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014
Part # Description Qty Price
55223E - INSULATOR, DASH PANEL HEAT, NO.1
55223-02310

NDE180,ZRE18#..TUP

 1
55843A - DUCT, HEATER TO REGISTER, NO.1
55086-02370

NDE180,ZRE18#..TUP

 1
55844 - DUCT, HEATER TO REGISTER, NO.2
55084-02390

NDE180,ZRE18#..TUP

 1
55950G - NOZZLE ASSY, DEFROSTER
55950-02270

NDE180,ZRE18#..TUP

 1
55979A - CUSHION, DEFROSTER NOZZLE
55979-02080

NDE180,ZRE18#..TUP

 1
55990B - NOZZLE ASSY, DEFROSTER, LOWER
55990-02160

NDE180,ZRE18#..TUP

 1
87201 - DUCT SUB-ASSY, AIR, NO.1
87220-02300

NDE180,ZRE18#..TUP

 1
87201B - DUCT SUB-ASSY, AIR, NO.2
87211-05070

NDE180,ZRE18#..TUP

 1
87201F - DUCT SUB-ASSY, AIR, NO.3
87211-02540

NDE180,ZRE18#..TUP

 1
Common parts
90167-T0012
90167-W0007
90178-T0007
90178-W0039
90179-06274
93568-55014

ILLUST NO. 3 OF 3(1306- )LHD

Click highlighted areas on diagram

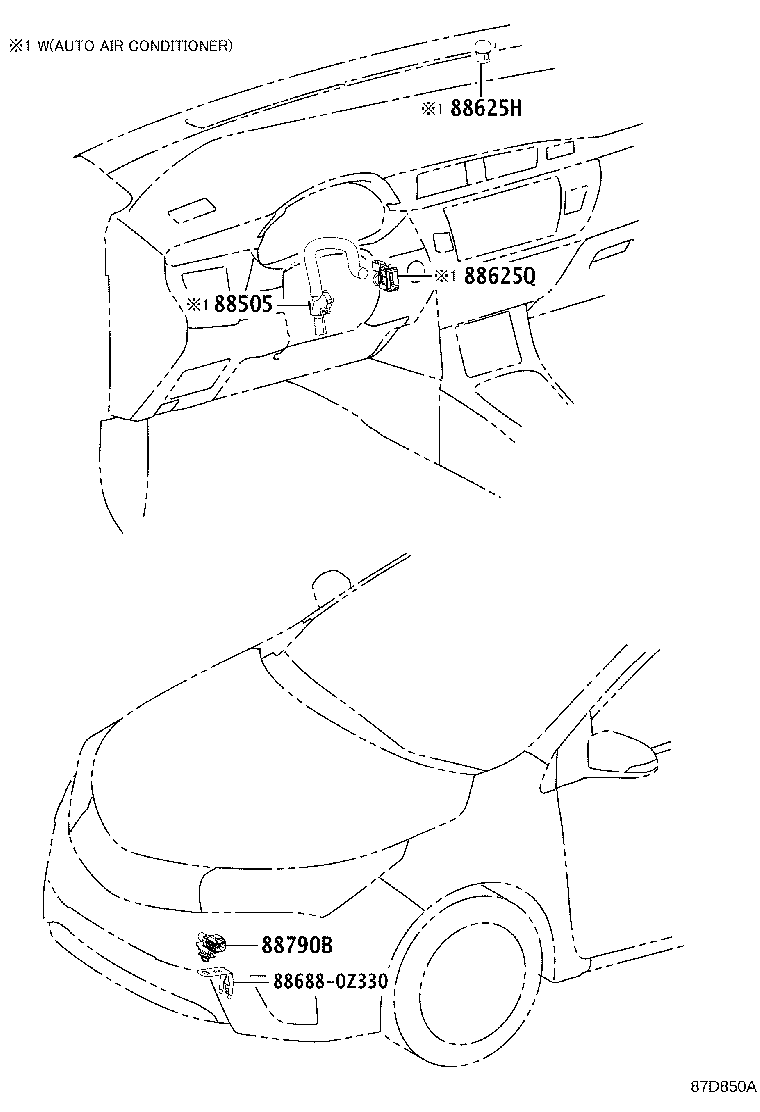

SENSOR

diagram 88505 88625H 88625Q 886880Z330 88790B
Part # Description Qty Price
88790B - THERMISTOR ASSY
88790-22131

NDE180,ZRE18#..TUP

 1
Common parts
88688-0Z330

ILLUST NO. 1 OF 3(1606- )TUP ; (1701- )GEN..SAP

Click highlighted areas on diagram

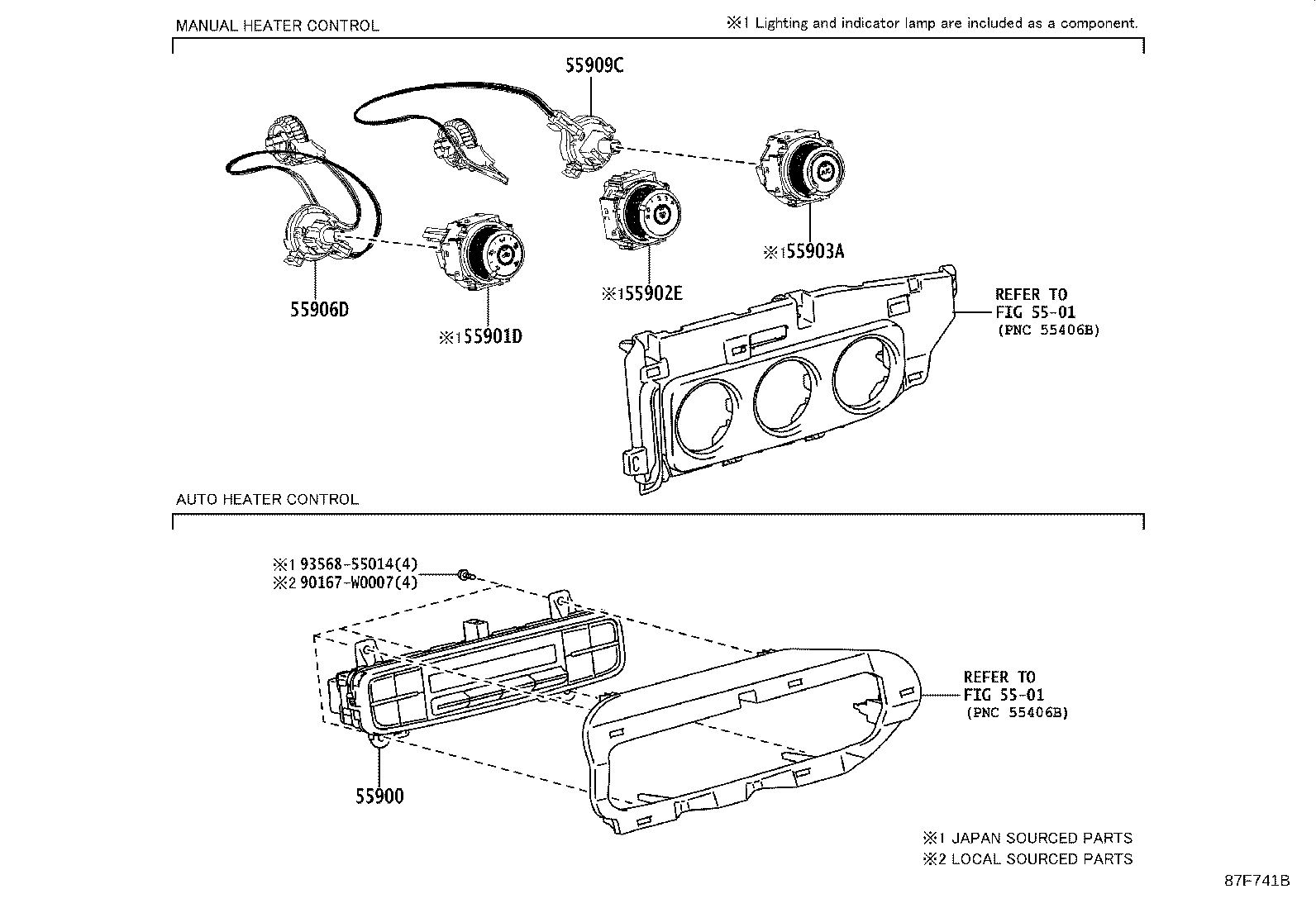

HEATER CONTROL PANEL

diagram 5501 5501 55900 55901D 55902E 55903A 55906D 55909C 90167W0007 9356855014
Part # Description Qty Price
55901D - CONTROL SUB-ASSY, HEATER, NO.1
55901-12310

NDE180,NRE180,ZRE18#..TUP

 1
55902E - CONTROL SUB-ASSY, HEATER, NO.2
55902-12320

NDE180,NRE180,ZRE18#..TUP

 1
55903A - CONTROL SUB-ASSY, HEATER, NO.3
55903-12360

ZRE18#..D..TUP

 1
55903-12300

ZRE18#..D..TUP

AIR CONDITIONER-MANUAL AIR CONDITIONER

 1
Common parts
90167-W0007
93568-55014
Linked diagrams
5501
