Toyota Corolla ZRE181 HEATING & AIR CONDITIONING - COOLER UNIT

Manufacturers Home
Toyota
GR
COROLLA
ZRE181L-DEXDKV (2016)
8714 - HEATING & AIR CONDITIONING - COOLER UNIT

ZRE181L-DEXDKV (2016)

Toyota Corolla

Production Jun 2016 - Jan 2019

Engine 1ZRFE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

(1306- )LHD

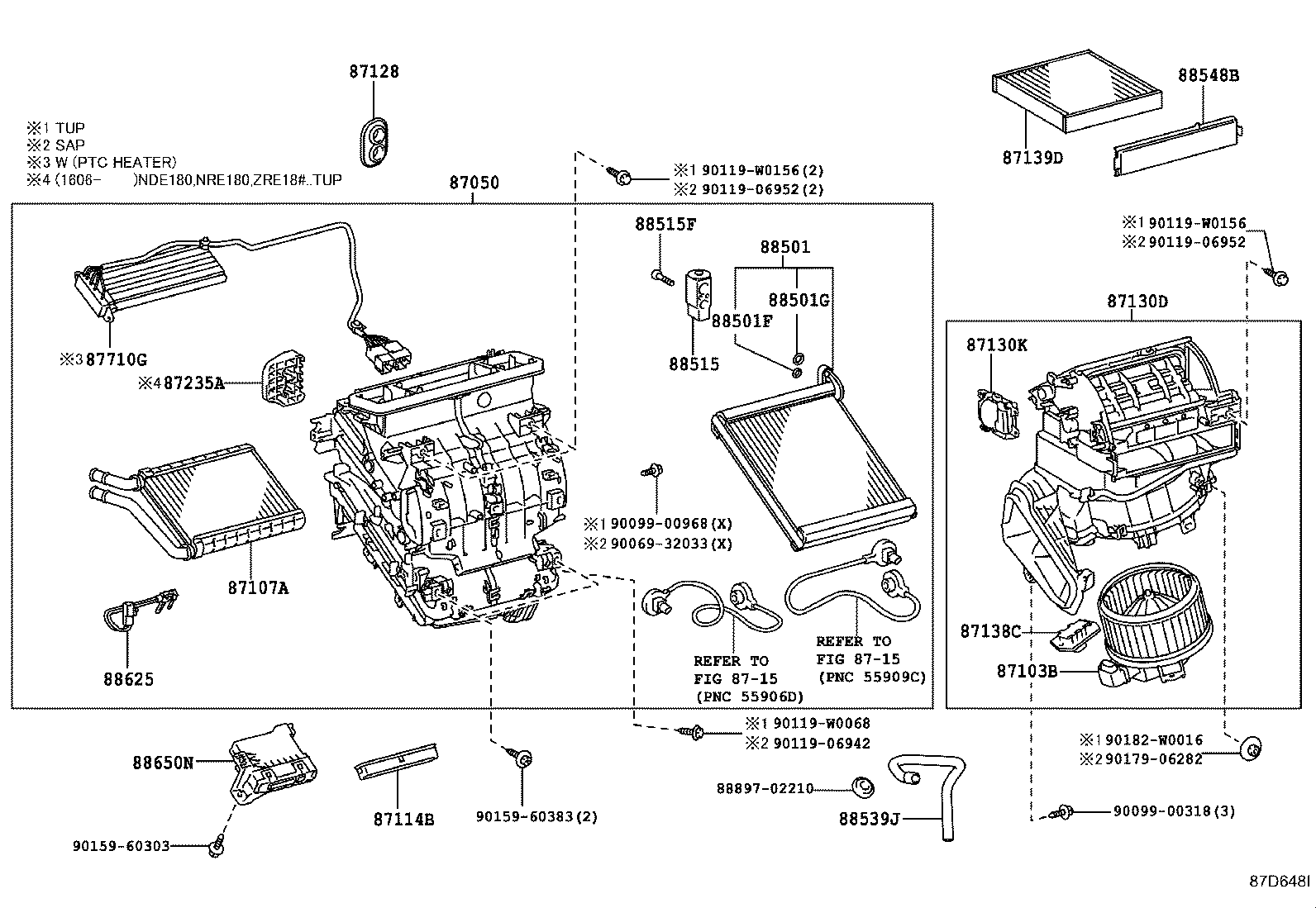

Click highlighted areas on diagram

AUTO AIR CONDITIONER

Part #	Description	Period	Qty
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-0F330	ZRE18#..D..TUP AIR CONDITIONER-MANUAL AIR CONDITIONER	06/2016 - 01/2019	1
87050-02A11	ZRE18#..D..TUP	06/2016 - 01/2019	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-02140	NDE180,ZRE18#..TUP	06/2016 - 01/2019	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-02150	NDE180,ZRE18#..TUP	06/2016 - 01/2019	1
87114B - COVER, HEATER
87114-02010	NDE180,ZRE18#..TUP	06/2016 - 01/2019	1
87128 - GROMMET, HEATER
87128-02010	NDE180,ZRE18#..TUP	06/2016 - 01/2019	1
87130D - BLOWER ASSY
87130-02291	ZRE18#..D..TUP AIR CONDITIONER-MANUAL AIR CONDITIONER	06/2016 - 01/2019	1
87130-02890	ZRE18#..D..TUP	06/2016 - 01/2019	1
87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1
87106-02260	NDE180,ZRE18#..TUP	06/2016 - 01/2019	1
87139D - ELEMENT, AIR REFINER
87139-0D070	NDE180,ZRE18#..TUP POLLEN FILTER	06/2016 - 01/2019	1
87139-50100	NDE180,ZRE18#..TUP *DPF	06/2016 - 01/2019	1
87235A - BRACKET, HEATER COVER
87235-05010	NDE180,ZRE18#..TUP	06/2016 - 01/2019	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-02202	ZRE18#..D..TUP AIR CONDITIONER-MANUAL AIR CONDITIONER	06/2016 - 01/2019	1
88515 - VALVE, COOLER EXPANSION
88515-68010	ZRE18#..D..TUP AIR CONDITIONER-MANUAL AIR CONDITIONER	06/2016 - 01/2019	1
88515F - BOLT(FOR COOLER EXPANSION VALVE)
90099-04542	ZRE18#..D..TUP AIR CONDITIONER-MANUAL AIR CONDITIONER	06/2016 - 01/2019	2
88539J - HOSE, DRAIN COOLER
88539-02260	NDE180,ZRE18#..TUP	06/2016 - 01/2019	1
88548B - CASE, AIR FILTER
88548-02070	NDE180,ZRE18#..TUP	06/2016 - 01/2019	1
88625 - THERMISTOR, COOLER, NO.1
88625-02110	ZRE18#..D..TUP AIR CONDITIONER-MANUAL AIR CONDITIONER	06/2016 - 01/2019	1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-02F50	ZRE18#..D..TUP AIR CONDITIONER-MANUAL AIR CONDITIONER	06/2016 - 11/2017	1
88650-0D360	ZRE18#..D..TUP	06/2016 - 01/2019	1
88650-02F51	ZRE18#..D..TUP AIR CONDITIONER-MANUAL AIR CONDITIONER	11/2017 - 01/2019	1
Common parts
88897-02210
90069-32033
90099-00318
90099-00968
90119-06942
90119-06952
90119-W0068
90119-W0156
90159-60303
90159-60383
90179-06282
90182-W0016

(1306- )LHD

Click highlighted areas on diagram

MANUAL AIR CONDITIONER

Part #	Description	Period	Qty
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-0F330	ZRE18#..D..TUP AIR CONDITIONER-MANUAL AIR CONDITIONER	06/2016 - 01/2019	1
87050-02A11	ZRE18#..D..TUP	06/2016 - 01/2019	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-02140	NDE180,ZRE18#..TUP	06/2016 - 01/2019	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-02150	NDE180,ZRE18#..TUP	06/2016 - 01/2019	1
87114B - COVER, HEATER
87114-02010	NDE180,ZRE18#..TUP	06/2016 - 01/2019	1
87128 - GROMMET, HEATER
87128-02010	NDE180,ZRE18#..TUP	06/2016 - 01/2019	1
87130D - BLOWER ASSY
87130-02291	ZRE18#..D..TUP AIR CONDITIONER-MANUAL AIR CONDITIONER	06/2016 - 01/2019	1
87130-02890	ZRE18#..D..TUP	06/2016 - 01/2019	1
87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1
87106-02260	NDE180,ZRE18#..TUP	06/2016 - 01/2019	1
87138C - RESISTOR, BLOWER
87138-02100	NDE180,ZRE18#..TUP	06/2016 - 01/2019	1
87139D - ELEMENT, AIR REFINER
87139-0D070	NDE180,ZRE18#..TUP POLLEN FILTER	06/2016 - 01/2019	1
87139-50100	NDE180,ZRE18#..TUP *DPF	06/2016 - 01/2019	1
87235A - BRACKET, HEATER COVER
87235-05010	NDE180,ZRE18#..TUP	06/2016 - 01/2019	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-02202	ZRE18#..D..TUP AIR CONDITIONER-MANUAL AIR CONDITIONER	06/2016 - 01/2019	1
88515 - VALVE, COOLER EXPANSION
88515-68010	ZRE18#..D..TUP AIR CONDITIONER-MANUAL AIR CONDITIONER	06/2016 - 01/2019	1
88515F - BOLT(FOR COOLER EXPANSION VALVE)
90099-04542	ZRE18#..D..TUP AIR CONDITIONER-MANUAL AIR CONDITIONER	06/2016 - 01/2019	2
88539J - HOSE, DRAIN COOLER
88539-02260	NDE180,ZRE18#..TUP	06/2016 - 01/2019	1
88548B - CASE, AIR FILTER
88548-02070	NDE180,ZRE18#..TUP	06/2016 - 01/2019	1
88625 - THERMISTOR, COOLER, NO.1
88625-02110	ZRE18#..D..TUP AIR CONDITIONER-MANUAL AIR CONDITIONER	06/2016 - 01/2019	1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-02F50	ZRE18#..D..TUP AIR CONDITIONER-MANUAL AIR CONDITIONER	06/2016 - 11/2017	1
88650-0D360	ZRE18#..D..TUP	06/2016 - 01/2019	1
88650-02F51	ZRE18#..D..TUP AIR CONDITIONER-MANUAL AIR CONDITIONER	11/2017 - 01/2019	1
Common parts
88897-02210
90069-32033
90099-00318
90099-00968
90119-06942
90119-06952
90119-W0068
90119-W0156
90159-60303
90159-60383
90179-06282
90182-W0016
Linked diagrams
8715

(1606- )TUP

Click highlighted areas on diagram

MANUAL HEATER

Part #	Description	Period	Qty
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-0F330	ZRE18#..D..TUP AIR CONDITIONER-MANUAL AIR CONDITIONER	06/2016 - 01/2019	1
87050-02A11	ZRE18#..D..TUP	06/2016 - 01/2019	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-02140	NDE180,ZRE18#..TUP	06/2016 - 01/2019	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-02150	NDE180,ZRE18#..TUP	06/2016 - 01/2019	1
87114B - COVER, HEATER
87114-02010	NDE180,ZRE18#..TUP	06/2016 - 01/2019	1
87128 - GROMMET, HEATER
87128-02010	NDE180,ZRE18#..TUP	06/2016 - 01/2019	1
87130D - BLOWER ASSY
87130-02291	ZRE18#..D..TUP AIR CONDITIONER-MANUAL AIR CONDITIONER	06/2016 - 01/2019	1
87130-02890	ZRE18#..D..TUP	06/2016 - 01/2019	1
87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1
87106-02260	NDE180,ZRE18#..TUP	06/2016 - 01/2019	1
87138C - RESISTOR, BLOWER
87138-02100	NDE180,ZRE18#..TUP	06/2016 - 01/2019	1
87139D - ELEMENT, AIR REFINER
87139-0D070	NDE180,ZRE18#..TUP POLLEN FILTER	06/2016 - 01/2019	1
87139-50100	NDE180,ZRE18#..TUP *DPF	06/2016 - 01/2019	1
87235A - BRACKET, HEATER COVER
87235-05010	NDE180,ZRE18#..TUP	06/2016 - 01/2019	1
88539J - HOSE, DRAIN COOLER
88539-02260	NDE180,ZRE18#..TUP	06/2016 - 01/2019	1
88548B - CASE, AIR FILTER
88548-02070	NDE180,ZRE18#..TUP	06/2016 - 01/2019	1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-02F50	ZRE18#..D..TUP AIR CONDITIONER-MANUAL AIR CONDITIONER	06/2016 - 11/2017	1
88650-0D360	ZRE18#..D..TUP	06/2016 - 01/2019	1
88650-02F51	ZRE18#..D..TUP AIR CONDITIONER-MANUAL AIR CONDITIONER	11/2017 - 01/2019	1
Common parts
90099-00318
90119-06952
90119-W0068
90119-W0156
90159-60303
90159-60383
90179-06282
90182-W0016
90480-26030
Linked diagrams
8715

ZRE181L-DEXDKV (2016)

(1306- )LHD

(1306- )LHD

(1606- )TUP
