ZRE181L-DEXDKV (2016)

Toyota Corolla

Production Jun 2016 - Jan 2019
Engine 1ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1306- )

Click highlighted areas on diagram

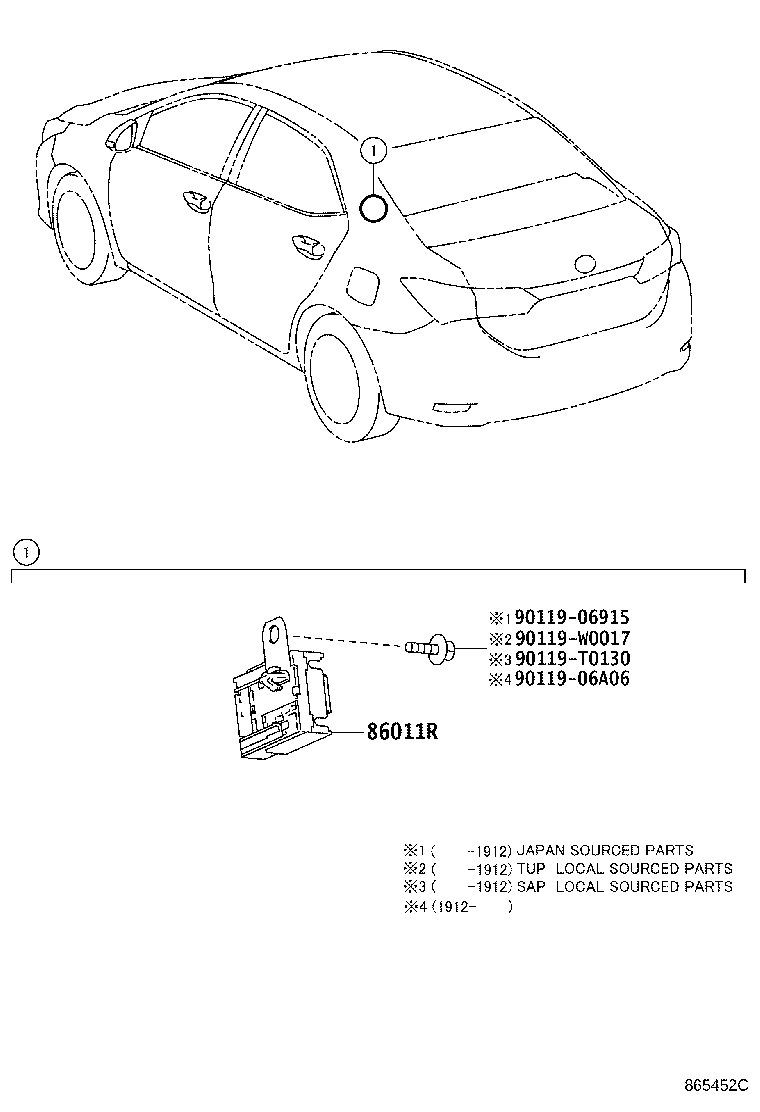

CONDENSER

diagram 86011R 9011906915 9011906A06 90119T0130 90119W0017
Part # Description Qty Price
86011R - CONDENSER, RADIO SETTING
90980-04204

NDE180,ZRE18#..TUP

 1
Common parts
90119-06915
90119-06A06
90119-T0130
90119-W0017

ILLUST NO. 1 OF 2(1606- )TUP ; (1701- )SAP

Click highlighted areas on diagram

diagram 86120 86145 86190C 86203 86211 86212 86250 90119W0030 90119W0030 9015350010 9015350010 90153W0001 90153W0001 9167180616 9167180616
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-02J80

NDE180,NRE180,ZRE18#..D..TUP

PANASONIC,ID=510186,AUDIO(OVERSEAS MARKET)-RADIOLESS 4SPEAKER

 1
86120-02J80

NDE180,NRE180,ZRE18#..D..TUP

PANASONIC,ID=510186

 1
86120-02J81

NDE180,ZRE18#..D..TUP

PANASONIC,ID=510322,AUDIO(OVERSEAS MARKET)-RADIOLESS 4SPEAKER

 1
86120-02J81

NDE180,ZRE18#..D..TUP

PANASONIC,ID=510322

 1
86145 - CONNECTOR, ANTENNA MALE
86145-52010

NDE180,ZRE18#..D..TUP

AUDIO(OVERSEAS MARKET)-RADIOLESS 4SPEAKER

 1
86211 - BRACKET, RADIO, NO.1
86211-02440

NDE180,ZRE18#..TUP

 1
86212 - BRACKET, RADIO, NO.2
86212-02430

NDE180,ZRE18#..TUP

 1
Common parts
90119-W0030
90153-50010
90153-W0001
91671-80616
