ZRE181L-DEXDKV (2016)

Toyota Corolla

Production Jun 2016 - Jan 2019
Engine 1ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1306- )

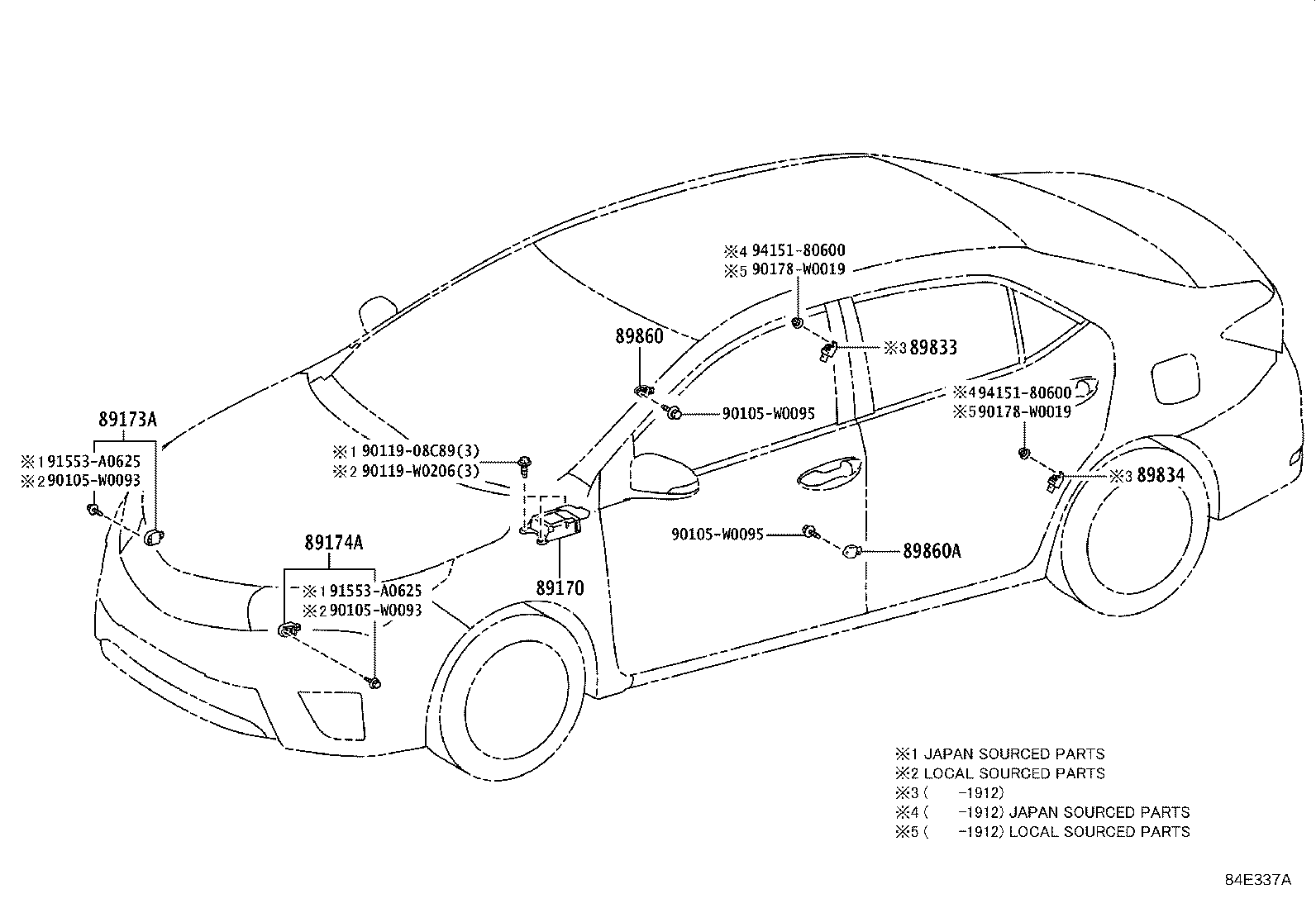

Click highlighted areas on diagram

diagram 89170 89173A 89174A 89833 89834 89860 89860A 90105W0093 90105W0093 90105W0095 90105W0095 9011908C89 90119W0206 90178W0019 90178W0019 91553A0625 91553A0625 9415180600 9415180600
Part # Description Qty Price
89170 - SENSOR ASSY, AIR BAG
89170-02K30

ZRE18#..CVT..TUP

SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA)

 1
89170-02K50

ZRE18#..CVT..D..TUP

SRS AIR BAG-WITH(*DRS & *PAS & SIDE)

 1
89170-02K70

ZRE18#..CVT..D..TUP

 1
89173A - SENSOR, AIR BAG, FRONT RH
89173-09A10

NDE180,ZRE18#..TUP

 1
89174A - SENSOR, AIR BAG, FRONT LH
89173-09A10

NDE180,ZRE18#..TUP

 1
89833 - SENSOR, AIR BAG, REAR RH
89831-02150

NDE180,ZRE18#..TUP

SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA)

 1
89834 - SENSOR, AIR BAG, REAR LH
89831-02150

NDE180,ZRE18#..TUP

SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA)

 1
89860 - SENSOR ASSY, SIDE AIR BAG, RH
89831-02130

NDE180,ZRE18#..D..TUP

SRS AIR BAG-WITH(*DRS & *PAS & SIDE)

 1
89831-02130

NDE180,ZRE18#..D..TUP

SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA)

 1
89860A - SENSOR ASSY, SIDE AIR BAG, LH
89831-02130

NDE180,ZRE18#..D..TUP

SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA)

 1
89831-02130

NDE180,ZRE18#..D..TUP

SRS AIR BAG-WITH(*DRS & *PAS & SIDE)

 1
Common parts
90105-W0093
90105-W0095
90119-08C89
90119-W0206
90178-W0019
91553-A0625
94151-80600
