ZRE181L-DEXDKV (2016)
Toyota Corolla

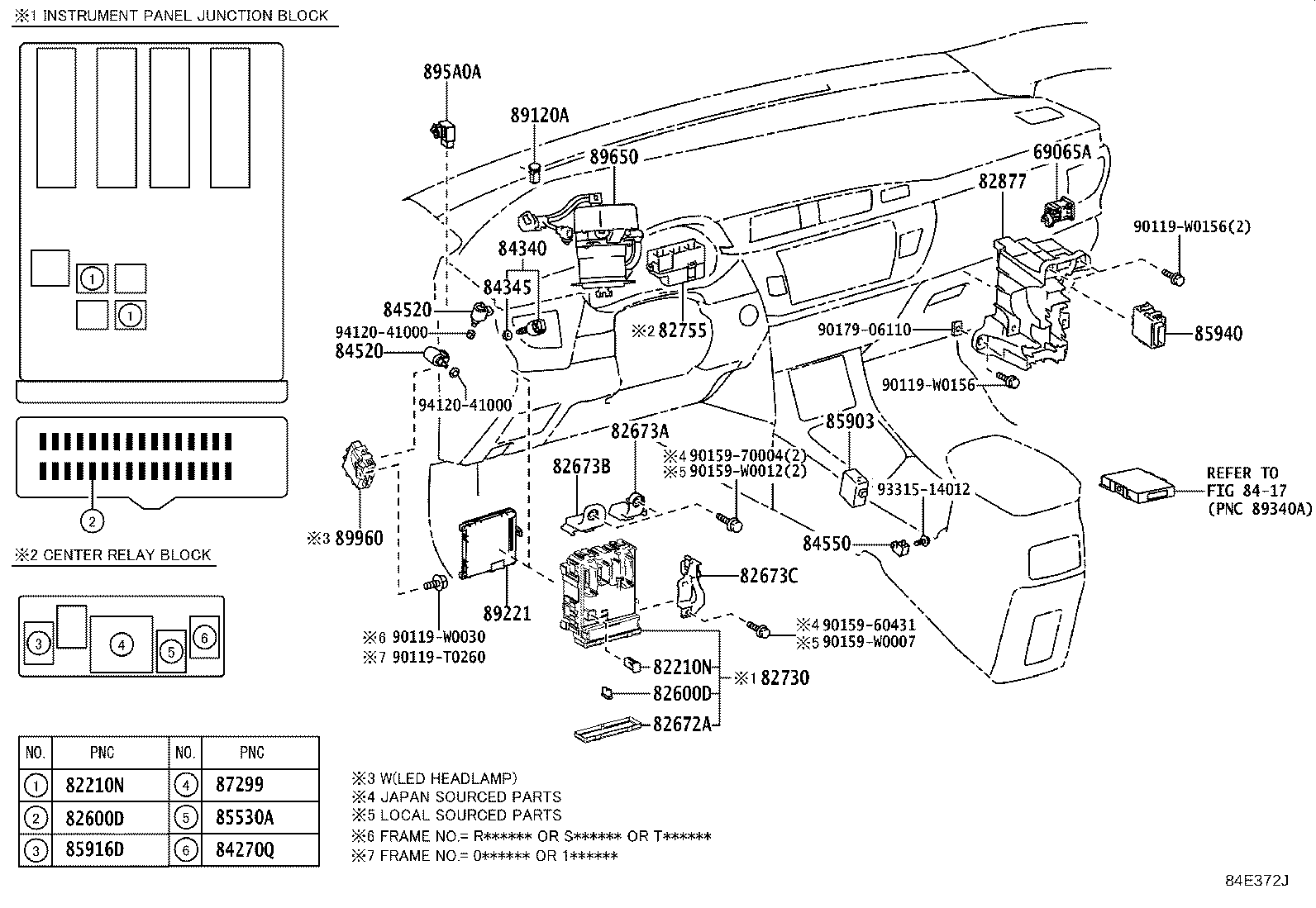

ILLUST NO. 4 OF 7(1306- )LHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69065A - CYLINDER SUB-ASSY, AIR BAG CUT OFF SWITCH | ||||
| 69065-02010 |
NDE180,ZRE18#..TUP |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
NDE180,ZRE18#..TUP 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
NDE180,ZRE18#..TUP 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09019 |
NDE180,ZRE18#..TUP 5A,MINI FUSE,TAN |
1 | ||
| 90982-09023 |
NDE180,ZRE18#..TUP 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
NDE180,ZRE18#..TUP 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
NDE180,ZRE18#..TUP 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
NDE180,ZRE18#..TUP 25A,MINI FUSE |
1 | ||
| 90982-09022 |
NDE180,ZRE18#..TUP 15A,MINI FUSE,BLUE |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09019 |
NDE180,ZRE18#..TUP 5A,MINI FUSE,TAN |
1 | ||
| 90982-09023 |
NDE180,ZRE18#..TUP 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
NDE180,ZRE18#..TUP 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
NDE180,ZRE18#..TUP 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
NDE180,ZRE18#..TUP 25A,MINI FUSE |
1 | ||
| 90982-09022 |
NDE180,ZRE18#..TUP 15A,MINI FUSE,BLUE |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-12450 |
NDE180,ZRE18#..TUP |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-02110 |
NDE180,ZRE18#..TUP |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-02120 |
NDE180,ZRE18#..TUP |
1 | ||
| 82673C - BRACKET, JUNCTION BLOCK | ||||
| 82673-02130 |
NDE180,ZRE18#..TUP |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-12X71 |
NDE180,ZRE18#..D..TUP |
1 | ||
| 82755 - BLOCK, CENTER RELAY | ||||
| 82755-02040 |
NDE180,ZRE18#..TUP |
1 | ||
| 84270Q - RELAY, LAMP CUT | ||||
| 90080-87021 |
NDE180,ZRE18#..TUP |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-F9010 |
NDE180,ZRE18#..TUP |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
NDE180,ZRE18#..TUP |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
NDE180,ZRE18#..TUP |
1 | ||
| 85530A - RELAY, POWER OUTLET SOCKET | ||||
| 90987-02027 |
NDE180,ZRE18#..D..TUP POWER OUTLETS-CIGARETTE LIGHTER & SOCKET(REAR ONLY) |
1 | ||
| 85903 - COMPUTER SUB-ASSY, SHIFT LOCK CONTROL | ||||
| 85903-52010 |
ZRE18#..CVT..TUP |
1 | ||
| 87299 - RELAY, HEATER | ||||
| 90080-87030 |
NDE180,NRE180,ZRE18#..TUP |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-02K10 |
ZRE18#..GCC |
1 | ||
| 89220-02G00 |
ZRE18#..GCC SUDAN,SYRIA SPEC |
1 | ||
| 895A0A - COMPUTER ASSY, STOP LAMP CONTROL | ||||
| 895A0-12030 |
NDE180,ZRE18#..D..TUP |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-12E00 |
NDE180,ZRE18#..TUP |
1 | ||
| Common parts | ||||
| 90119-T0260 | ||||
| 90119-W0030 | ||||
| 90119-W0156 | ||||
| 90159-60431 | ||||
| 90159-70004 | ||||
| 90159-W0007 | ||||
| 90159-W0012 | ||||
| 90179-06110 | ||||
| 93315-14012 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 8417 | ||||

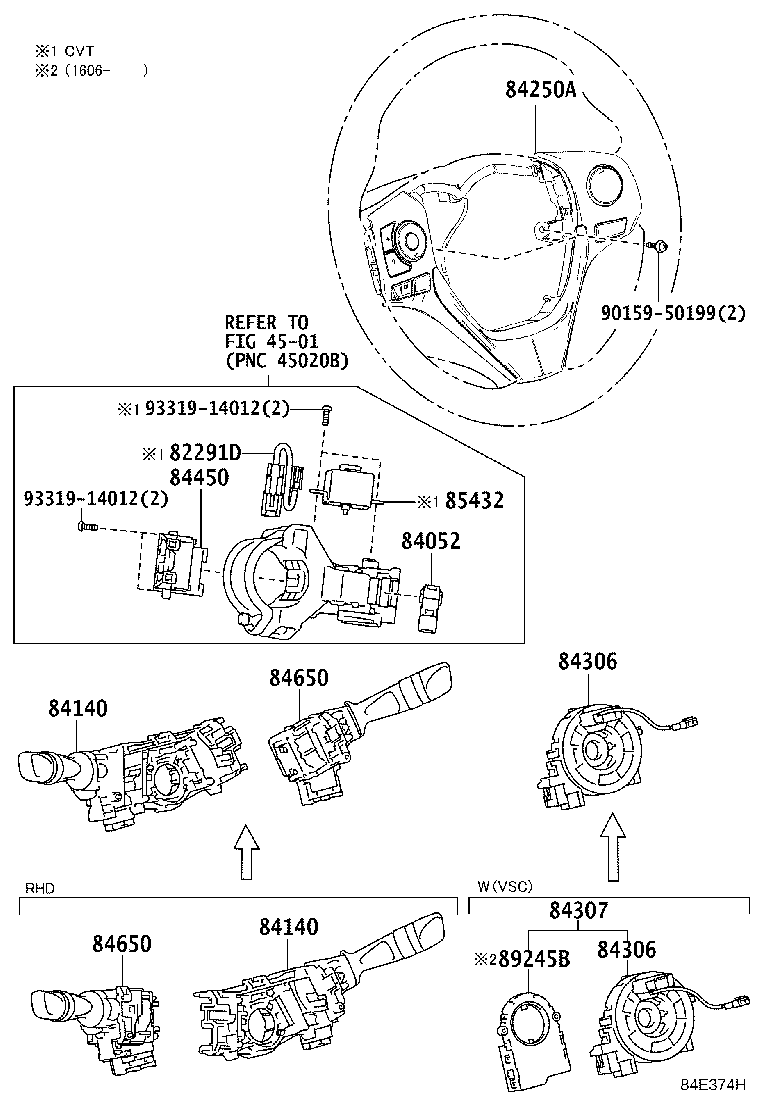

ILLUST NO. 6 OF 7(1306- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-02750 |
NDE180,ZRE18#..TUP REAR FOG LAMP-WITHOUT |
1 | ||
| 84140-02740 |
NDE180,ZRE18#..TUP |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-02750 |
NDE180,ZRE18#..TUP REAR FOG LAMP-WITHOUT |
1 | ||
| 84140-02740 |
NDE180,ZRE18#..TUP |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-02C30C0 |
NDE180,ZRE18#..D..TUP EU BLACK |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-02210 |
NDE180,ZRE18#..TUP |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-02210 |
NDE180,ZRE18#..TUP |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-02660 |
NDE180,ZRE18#..TUP |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-02660 |
NDE180,ZRE18#..TUP |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 93319-14012 | ||||
| Linked diagrams | ||||
| 4501 | ||||

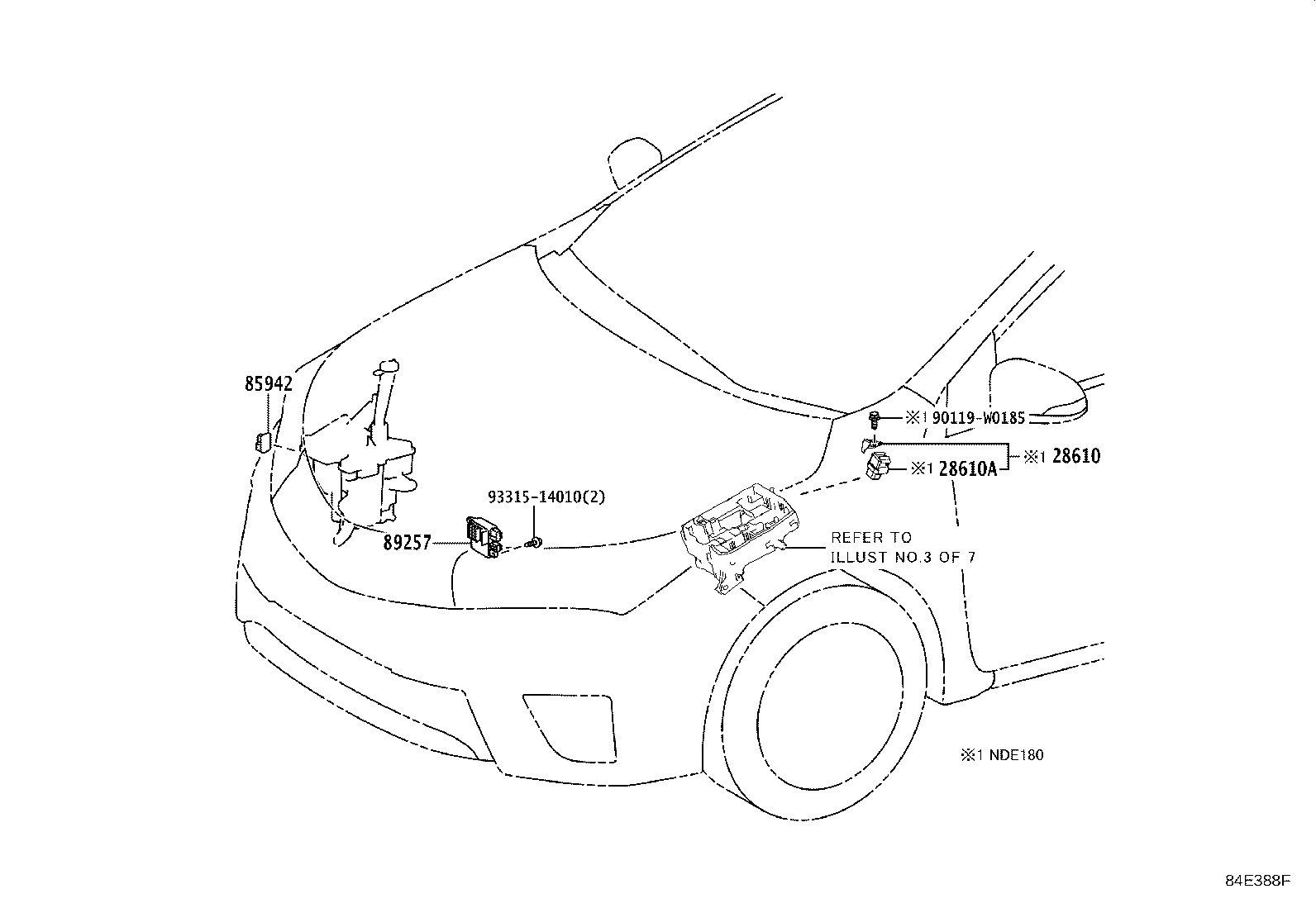

ILLUST NO. 2 OF 7(1306- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 85942-02060 |
NDE180..TUP;ZRE18#..N..TUP;ZRE18#..D..GCC HEADLAMP CLEANER-WITH |
1 | ||
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-12010 |
ZRE18#..TUP |
1 | ||
| Common parts | ||||
| 90119-W0185 | ||||
| 93315-14010 | ||||

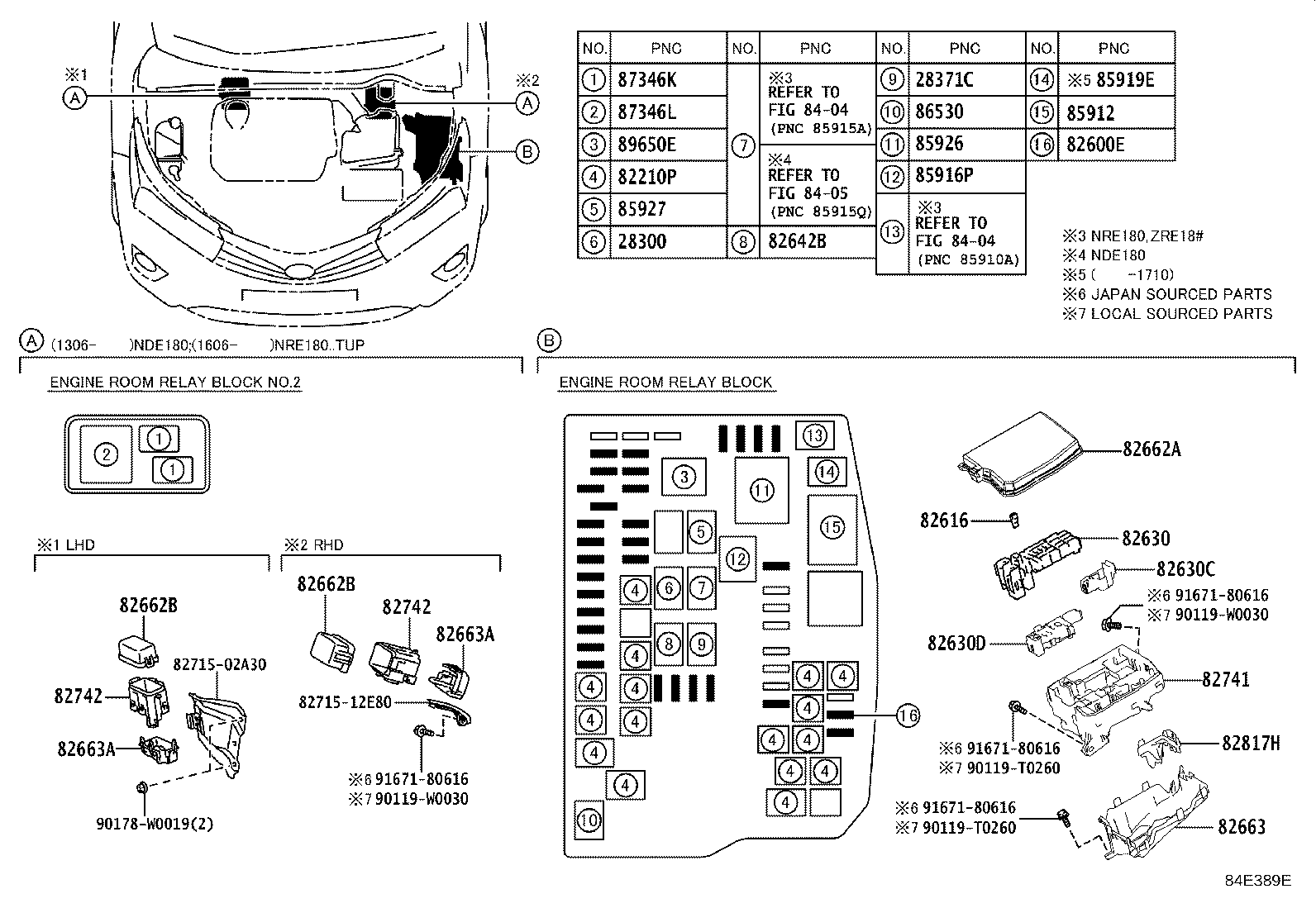

ILLUST NO. 3 OF 7(1306- )
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-21020 |
1NDTV,1ZRFE,2ZRFE..NDE180,ZRE18#..TUP |
1 | ||
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90080-87021 |
1NDTV,1ZRFE,2ZRFE..NDE180,ZRE18#..TUP |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08295 |
NDE180,ZRE18#..TUP 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08294 |
NDE180,ZRE18#..TUP 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08296 |
NDE180,ZRE18#..TUP 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08274 |
ZRE18#..TUP 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08305 |
NDE180,ZRE18#..TUP 80A,TERM.:FEMALE,BLK |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09023 |
NDE180,ZRE18#..TUP 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
NDE180,ZRE18#..TUP 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09019 |
NDE180,ZRE18#..TUP 5A,MINI FUSE,TAN |
1 | ||
| 90982-09024 |
NDE180,ZRE18#..TUP 25A,MINI FUSE |
1 | ||
| 90982-09020 |
NDE180,ZRE18#..TUP 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
NDE180,ZRE18#..TUP 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
NDE180,ZRE18#..TUP 30A,MINI FUSE,GRN |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
NDE180,ZRE18#..TUP |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82631-12040 |
ZRE18#..TUP |
1 | ||
| 82630C - HOLDER ASSY, FUSE | ||||
| 82631-12060 |
NDE180,ZRE18#..TUP |
1 | ||
| 82630D - HOLDER, FUSE | ||||
| 82631-12100 |
NDE180,ZRE18#..TUP |
1 | ||
| 82642B - RELAY, DAY TIME RUNNING LIGHT, NO.1 | ||||
| 90080-87021 |
NDE180,ZRE18#..TUP |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-02741 |
ZRE18#..TUP |
1 | ||
| 82662-02742 |
ZRE18#..TUP |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-02090 |
NDE180,ZRE18#..TUP |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-02090 |
NDE180,ZRE18#..TUP |
1 | ||
| 82817H - PROTECTOR, WIRING HARNESS | ||||
| 82817-02E00 |
NDE180,ZRE18#..TUP |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90080-87031 |
NDE180,NRE180,ZRE18#..TUP |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90080-87030 |
NDE180,ZRE18#..TUP |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90080-87030 |
NDE180,ZRE18#..TUP |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90080-87021 |
NDE180,ZRE18#..TUP |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90080-87021 |
NDE180,ZRE18#..TUP |
1 | ||
| 89650E - RELAY, ELECTRIC POWER STEERING | ||||
| 90080-87030 |
NDE180,ZRE18#..TUP |
1 | ||
| Common parts | ||||
| 82715-02A30 | ||||
| 82715-12E80 | ||||
| 90119-T0260 | ||||
| 90119-W0030 | ||||
| 90178-W0019 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 8404 | ||||
| 8405 | ||||

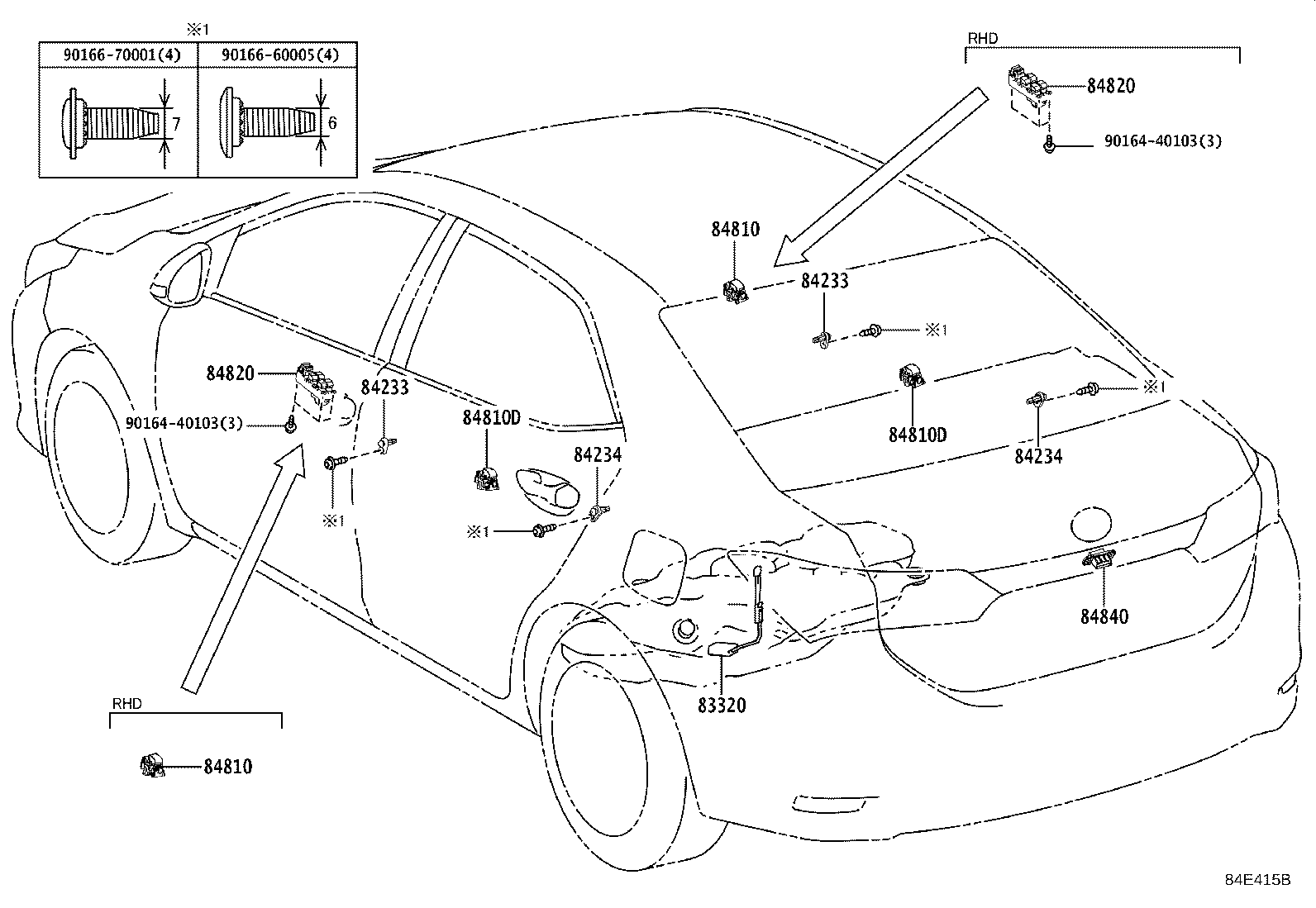

ILLUST NO. 7 OF 7(1306- )
DOOR,ROOF,FLOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-12730 |
ZRE18#..TUP |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-0D030 |
NDE180,ZRE18#..TUP (L) |
2 | ||
| 84231-60070 |
NDE180,ZRE18#..TUP (J) |
2 | ||
| 84231-60070 |
NDE180,NRE180,ZRE18# |
2 | ||
| 84231-0D030 |
NDE180,NRE180,ZRE18# |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-0D030 |
NDE180,ZRE18#..TUP (L) |
2 | ||
| 84231-60070 |
NDE180,ZRE18#..TUP (J) |
2 | ||
| 84231-60070 |
NDE180,NRE180,ZRE18# |
2 | ||
| 84231-0D030 |
NDE180,NRE180,ZRE18# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
NDE180,ZRE18#..TUP (J) |
2 | ||
| 84231-0D030 |
NDE180,ZRE18#..TUP (L) |
2 | ||
| 84231-60070 |
NDE180,NRE180,ZRE18# |
2 | ||
| 84231-0D030 |
NDE180,NRE180,ZRE18# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
NDE180,ZRE18#..TUP (J) |
2 | ||
| 84231-0D030 |
NDE180,ZRE18#..TUP (L) |
2 | ||
| 84231-60070 |
NDE180,NRE180,ZRE18# |
2 | ||
| 84231-0D030 |
NDE180,NRE180,ZRE18# |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-0D030 |
NDE180,ZRE18#..D..TUP |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-0D030 |
NDE180,ZRE18#..D..TUP |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-02340 |
NDE180,ZRE18#..D..TUP |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-02340 |
NDE180,ZRE18#..D..TUP |
1 | ||
| 84840 - SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING | ||||
| 84945-12030 |
NDE180,ZRE18#..TUP |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90166-60005 | ||||
| 90166-70001 | ||||

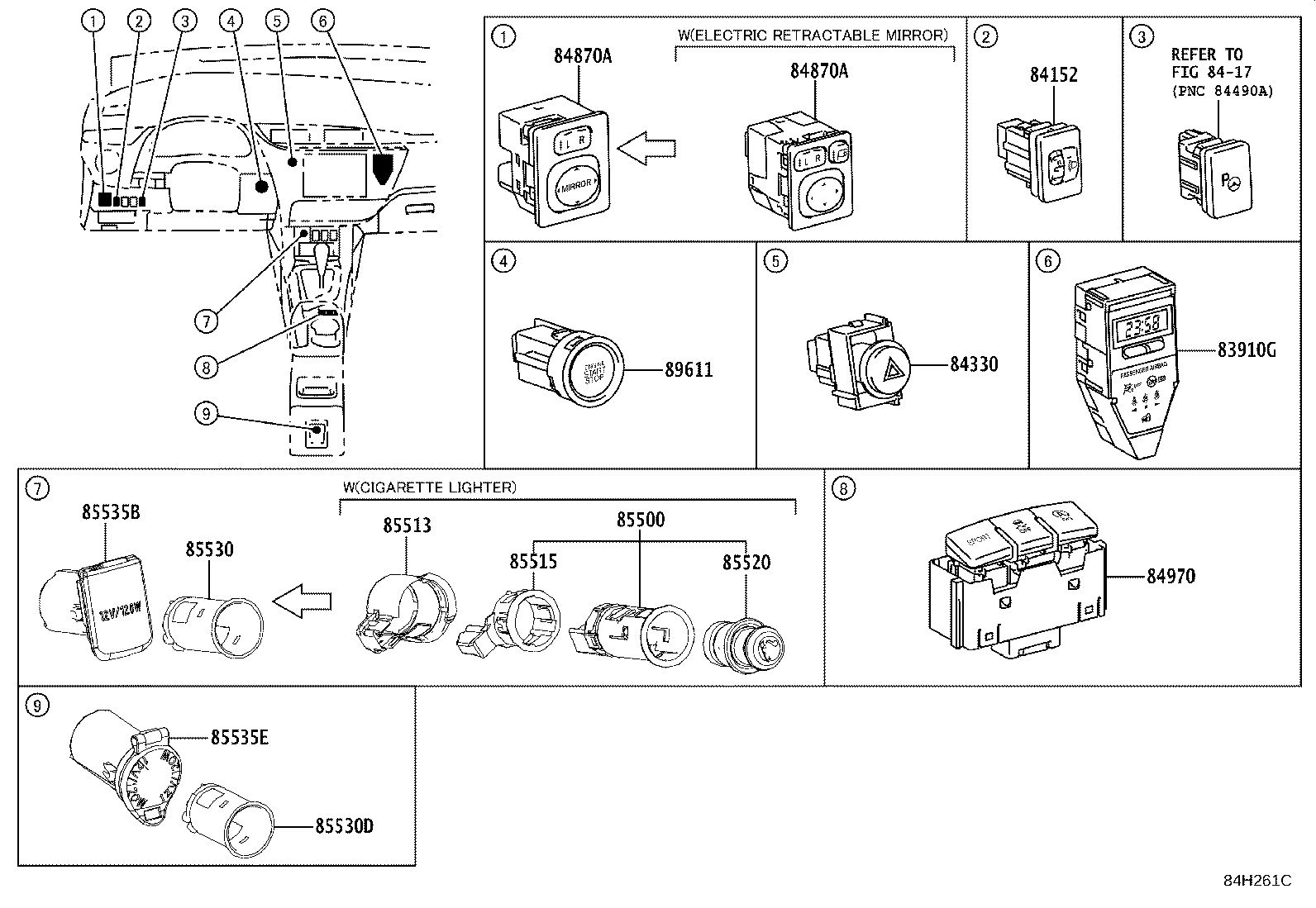

ILLUST NO. 5 OF 7(1606- )TUP ; (1701- )GEN..SAP
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910G - CLOCK ASSY | ||||
| 83910-02210 |
NDE180,ZRE18#..TUP |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-02300 |
NDE180,ZRE18#..TUP |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-02090C0 |
NDE180,ZRE18#..TUP BLACK |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-02090C0 |
NDE180,ZRE18#..TUP BLACK |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-02140 |
ZRE18#..CVT..TUP |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-59015 |
NDE180,ZRE18#..TUP POWER OUTLETS-CIGARETTE LIGHTER & SOCKET(REAR ONLY) |
1 | ||
| 85500-59015 |
NDE180,ZRE18#..TUP POWER OUTLETS-CIGARETTE LIGHTER ONLY |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12030 |
NDE180,ZRE18#..TUP POWER OUTLETS-CIGARETTE LIGHTER ONLY |
1 | ||
| 85513-12030 |
NDE180,ZRE18#..TUP POWER OUTLETS-CIGARETTE LIGHTER & SOCKET(REAR ONLY) |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-12140 |
NDE180,ZRE18#..TUP POWER OUTLETS-CIGARETTE LIGHTER ONLY |
1 | ||
| 85515-12140 |
NDE180,ZRE18#..TUP POWER OUTLETS-CIGARETTE LIGHTER & SOCKET(REAR ONLY) |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
NDE180,ZRE18#..TUP POWER OUTLETS-CIGARETTE LIGHTER & SOCKET(REAR ONLY) |
1 | ||
| 85520-28010 |
NDE180,ZRE18#..TUP POWER OUTLETS-CIGARETTE LIGHTER ONLY |
1 | ||
| 85530D - SOCKET ASSY, POWER OUTLET, NO.2 | ||||
| 85530-42010 |
NDE180,ZRE18#..D..TUP POWER OUTLETS-CIGARETTE LIGHTER & SOCKET(REAR ONLY) |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-30020 |
NDE180,ZRE18#..D..TUP POWER OUTLETS-CIGARETTE LIGHTER & SOCKET(REAR ONLY) |
1 | ||
| Linked diagrams | ||||
| 8417 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
