ZRE181L-DEXDKV (2016)

Toyota Corolla

Production Jun 2016 - Jan 2019
Engine 1ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1306- )

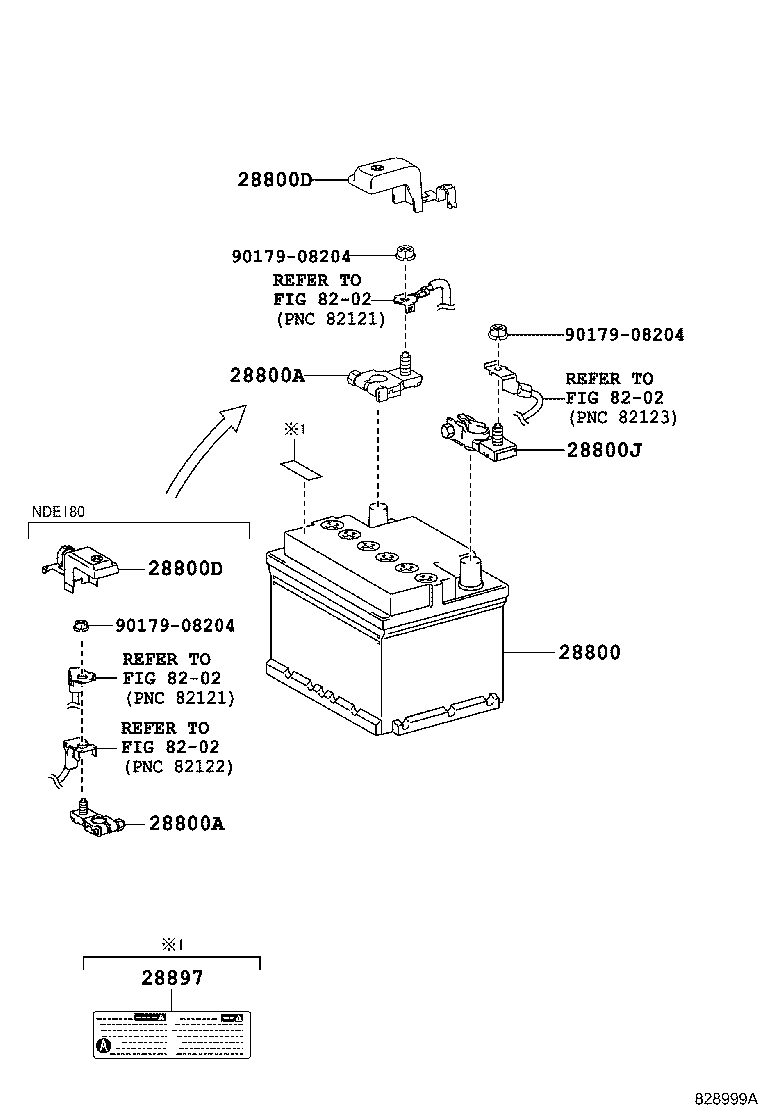

Click highlighted areas on diagram

diagram 28800 28800A 28800A 28800D 28800D 28800J 28897 8202 8202 8202 8202 9017908204 9017908204 9017908204
Part # Description Qty Price
28800 - BATTERY
28800-0D140

1NDTV..NDE180;1ZRFE,2ZRFE..ZRE18#..TUP

LN2

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05054

1ZRFE,2ZRFE..ZRE18#..TUP

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05054

1ZRFE,2ZRFE..ZRE18#..TUP

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-12490

1ZRFE,2ZRFE..ZRE18#..TUP

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-12490

1ZRFE,2ZRFE..ZRE18#..TUP

 1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06070

1NDTV,1ZRFE,2ZRFE..NDE180,ZRE18#..TUP

 1
28897 - PLATE, BATTERY CAUTION
28897-36030

1ZRFE,2ZRFE..ZRE18#..GCC

 1
Common parts
90179-08204
Linked diagrams
8202
