ZRE181L-DEXDKV (2016)

Toyota Corolla

Production Jun 2016 - Jan 2019
Engine 1ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1306- )

Click highlighted areas on diagram

diagram 81080J 81240 81240B 81260 81260 81330 81330B 81340 81340B 8202 9356855014 9356855014
Part # Description Qty Price
81080J - LAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080-0D010

NDE180,ZRE18#..TUP

 1
81240 - LAMP ASSY, ROOM, NO.1
81240-02080B0

NDE180,ZRE18#..TUP

LT.GRAY,TRIM2#

 1
81240-02080A1

NDE180,ZRE18#..TUP

FLAXEN,TRIM0#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-14011

NDE180,ZRE18#..TUP

12V 8W

 1
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330-02041

NDE180,ZRE18#..TUP

 1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
90981-11020

NDE180,ZRE18#..TUP

12V 3.8W

 1
Common parts
93568-55014
Linked diagrams
8202

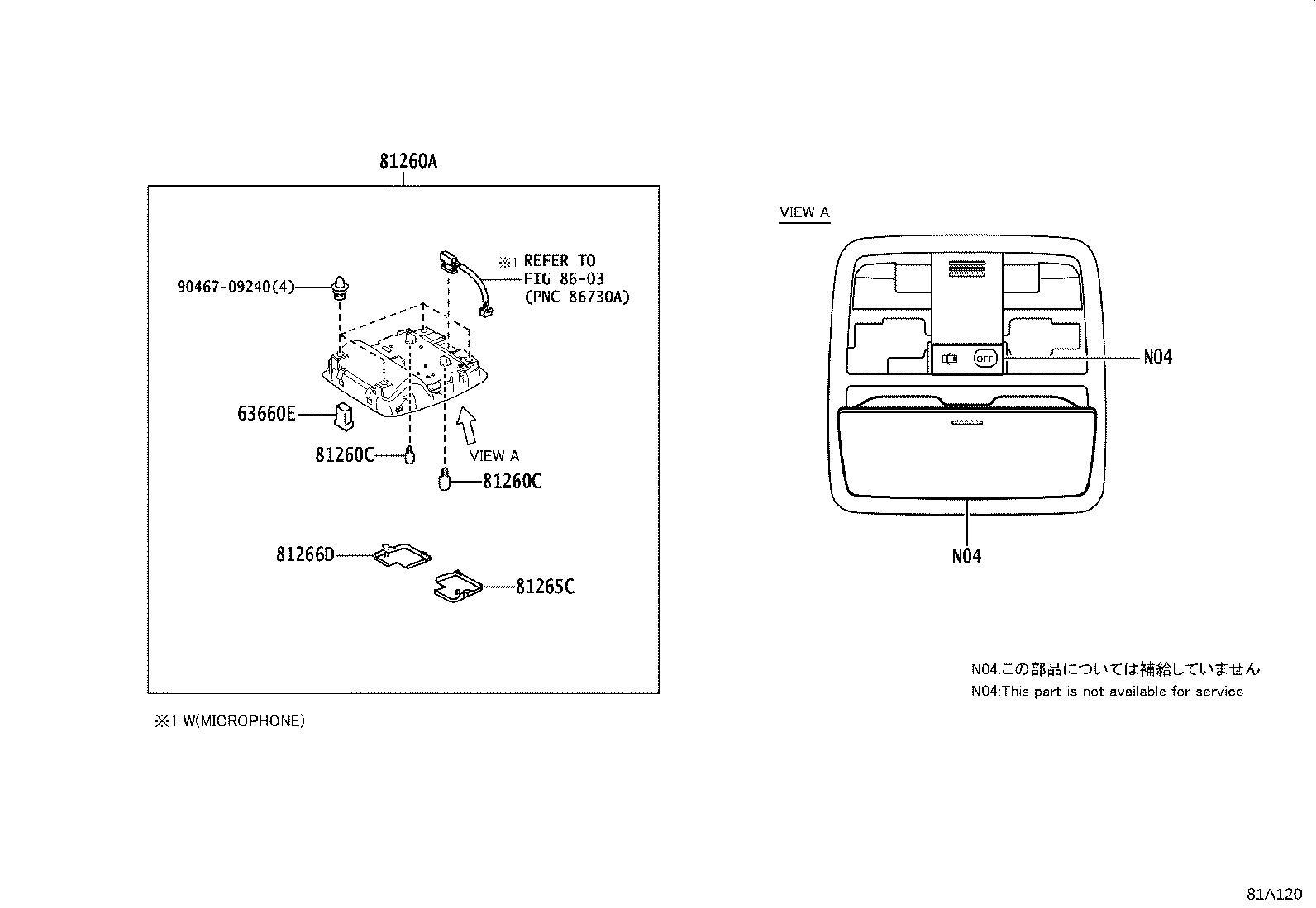

ILLUST NO. 2 OF 2(1306- )

Click highlighted areas on diagram

diagram 63660E 81260A 81260C 81260C 81265C 81266D 8603 9046709240
Part # Description Qty Price
63660E - LOCK ASSY, ROOF CONSOLE
63660-02010

NDE180,ZRE18#..TUP

 1
81260A - LAMP ASSY, MAP
81260-02460A1

NDE180,ZRE18#..D..TUP

FLAXEN,TRIM0#

 1
81260-02460B0

NDE180,ZRE18#..D..TUP

LT.GRAY,TRIM2#

 1
81260C - BULB(FOR MAP LAMP)
90981-11062

NDE180,ZRE18#..TUP

12V 8W

 2
81260C - BULB(FOR MAP LAMP)
90981-11062

NDE180,ZRE18#..TUP

12V 8W

 2
81265C - LENS, MAP LAMP, NO.1
81265-02460

NDE180,ZRE18#..D..TUP

 1
81266D - LENS, MAP LAMP, NO.2
81266-02460

NDE180,ZRE18#..D..TUP

 1
Common parts
90467-09240
Linked diagrams
8603
