ZRE181L-DEXDKV (2016)
Toyota Corolla
(1606- )TUP ; (1701- )SAP

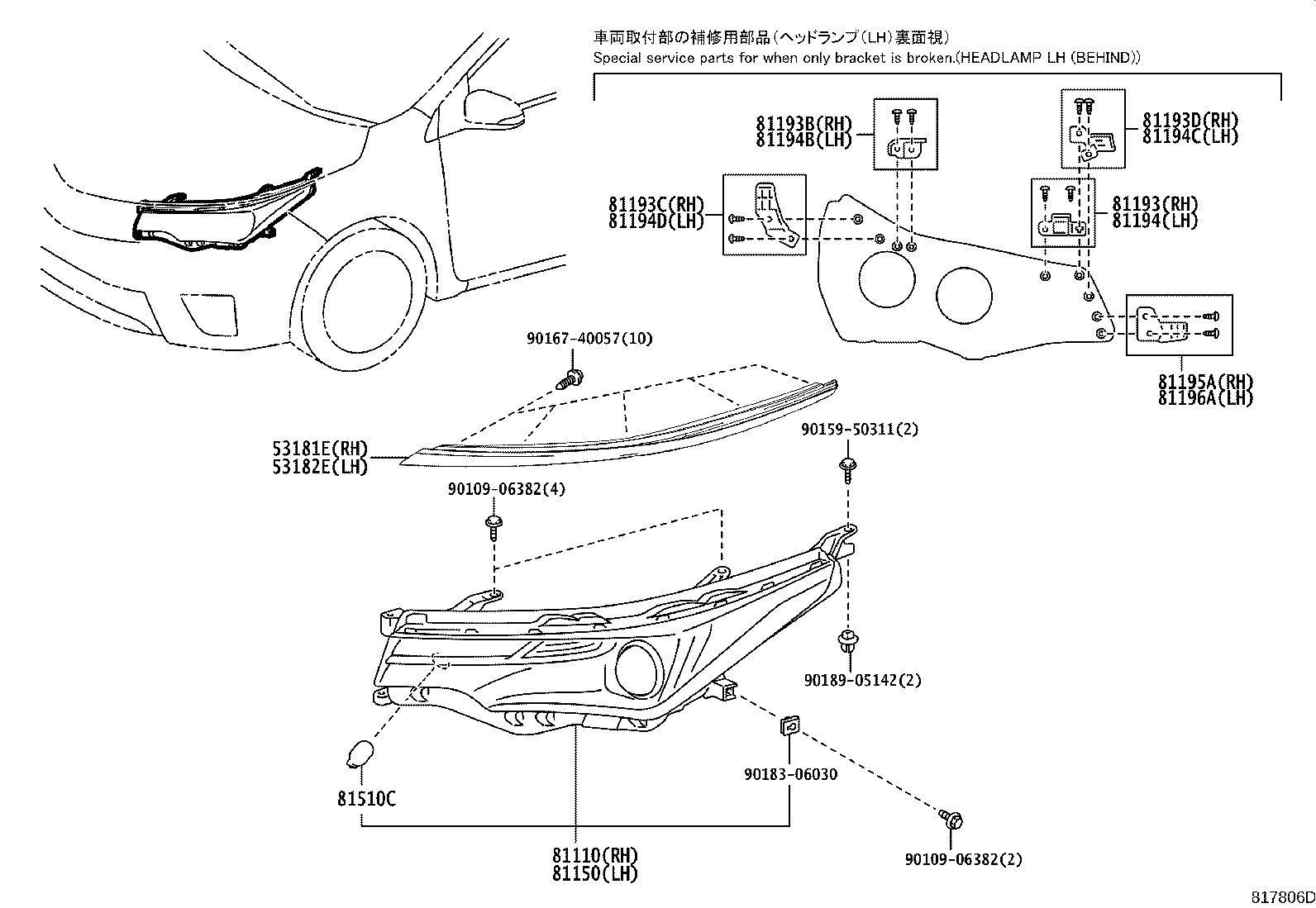

LED HEADLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53181E - COVER, HEADLAMP, RH | ||||
| 53181-02010 |
NDE180,ZRE18#..TUP |
1 | ||
| 53182E - COVER, HEADLAMP, LH | ||||
| 53182-02010 |
NDE180,ZRE18#..TUP |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-02270 |
NDE180,ZRE18#..TUP |
1 | ||
| 81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2 | ||||
| 81193-02260 |
NDE180,ZRE18#..TUP |
1 | ||
| 81193C - RETAINER, RH HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-02250 |
NDE180,ZRE18#..TUP |
1 | ||
| 81193D - RETAINER, RH HEADLAMP PROTECTOR, UPPER LH | ||||
| 81193-02280 |
NDE180,ZRE18#..TUP |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-02270 |
NDE180,ZRE18#..TUP |
1 | ||
| 81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2 | ||||
| 81194-02260 |
NDE180,ZRE18#..TUP |
1 | ||
| 81194C - RETAINER, LH HEADLAMP PROTECTOR, UPPER RH | ||||
| 81194-02280 |
NDE180,ZRE18#..TUP |
1 | ||
| 81194D - RETAINER, LH HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-02250 |
NDE180,ZRE18#..TUP |
1 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81193-02290 |
NDE180,ZRE18#..TUP |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81194-02290 |
NDE180,ZRE18#..TUP |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 |
NDE180,ZRE18#..TUP 12V 21W,AMBER |
2 | ||
| Common parts | ||||
| 90109-06382 | ||||
| 90159-50311 | ||||
| 90167-40057 | ||||
| 90183-06030 | ||||
| 90189-05142 | ||||
(1606- )TUP ; (1701- )SAP

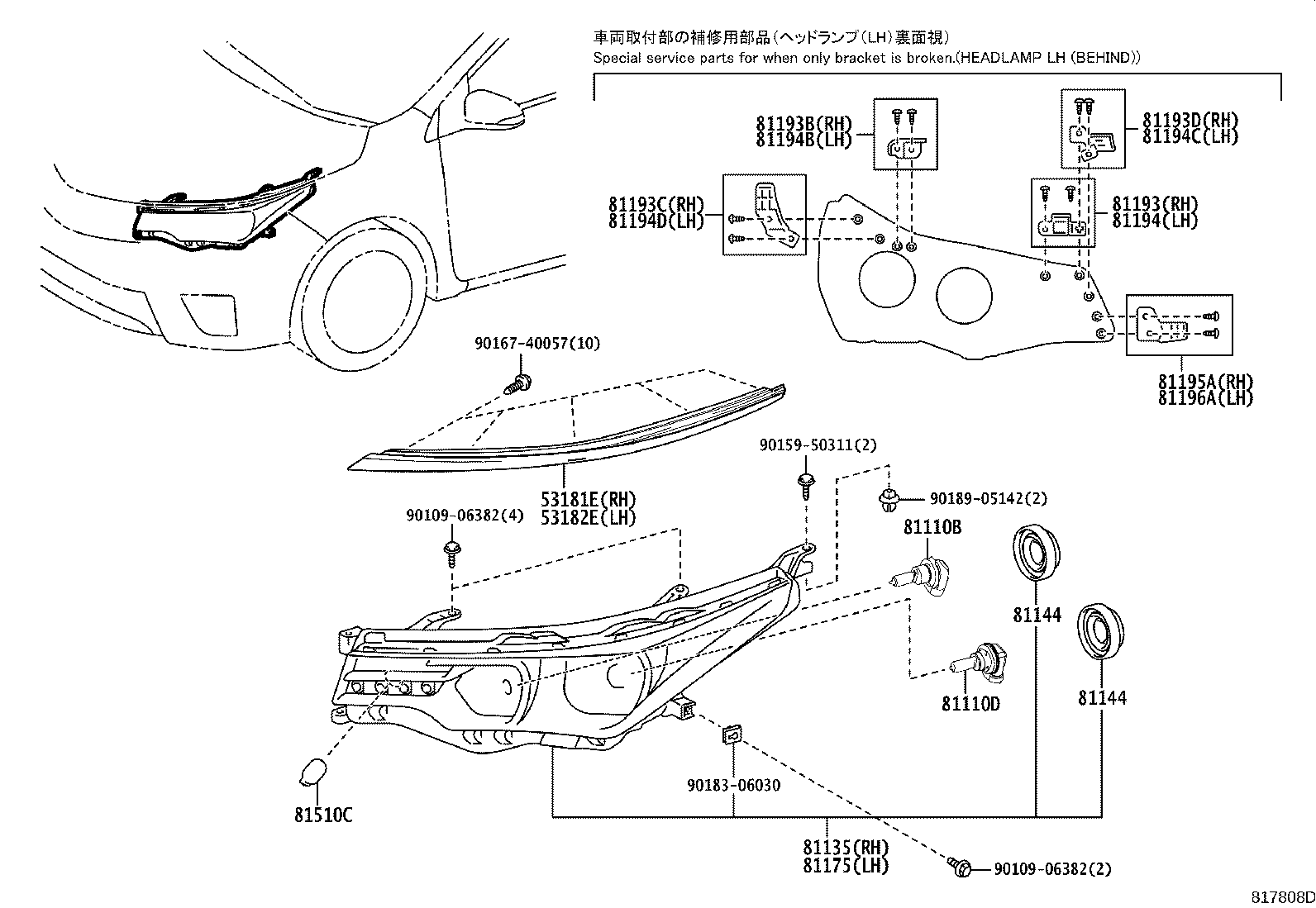

HALOGEN HEADLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53181E - COVER, HEADLAMP, RH | ||||
| 53181-02010 |
NDE180,ZRE18#..TUP |
1 | ||
| 53182E - COVER, HEADLAMP, LH | ||||
| 53182-02010 |
NDE180,ZRE18#..TUP |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13046 |
NDE180,ZRE18#..TUP 12V65W(SAE),60W(ECE) |
2 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90981-13075 |
NDE180,ZRE18#..TUP 12V 55W,HALOGEN |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-02L50 |
NDE180,ZRE18#..TUP |
1 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 90075-65006 |
NDE180,ZRE18#..TUP |
4 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 90075-65006 |
NDE180,ZRE18#..TUP |
4 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-02L50 |
NDE180,ZRE18#..TUP |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-02270 |
NDE180,ZRE18#..TUP |
1 | ||
| 81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2 | ||||
| 81193-02260 |
NDE180,ZRE18#..TUP |
1 | ||
| 81193C - RETAINER, RH HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-02250 |
NDE180,ZRE18#..TUP |
1 | ||
| 81193D - RETAINER, RH HEADLAMP PROTECTOR, UPPER LH | ||||
| 81193-02280 |
NDE180,ZRE18#..TUP |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-02270 |
NDE180,ZRE18#..TUP |
1 | ||
| 81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2 | ||||
| 81194-02260 |
NDE180,ZRE18#..TUP |
1 | ||
| 81194C - RETAINER, LH HEADLAMP PROTECTOR, UPPER RH | ||||
| 81194-02280 |
NDE180,ZRE18#..TUP |
1 | ||
| 81194D - RETAINER, LH HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-02250 |
NDE180,ZRE18#..TUP |
1 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81193-02290 |
NDE180,ZRE18#..TUP |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81194-02290 |
NDE180,ZRE18#..TUP |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 |
NDE180,ZRE18#..TUP 12V 21W,AMBER |
2 | ||
| Common parts | ||||
| 90109-06382 | ||||
| 90159-50311 | ||||
| 90167-40057 | ||||
| 90183-06030 | ||||
| 90189-05142 | ||||
