ZRE181L-DEXDKV (2016)

Toyota Corolla

Production Jun 2016 - Jan 2019
Engine 1ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

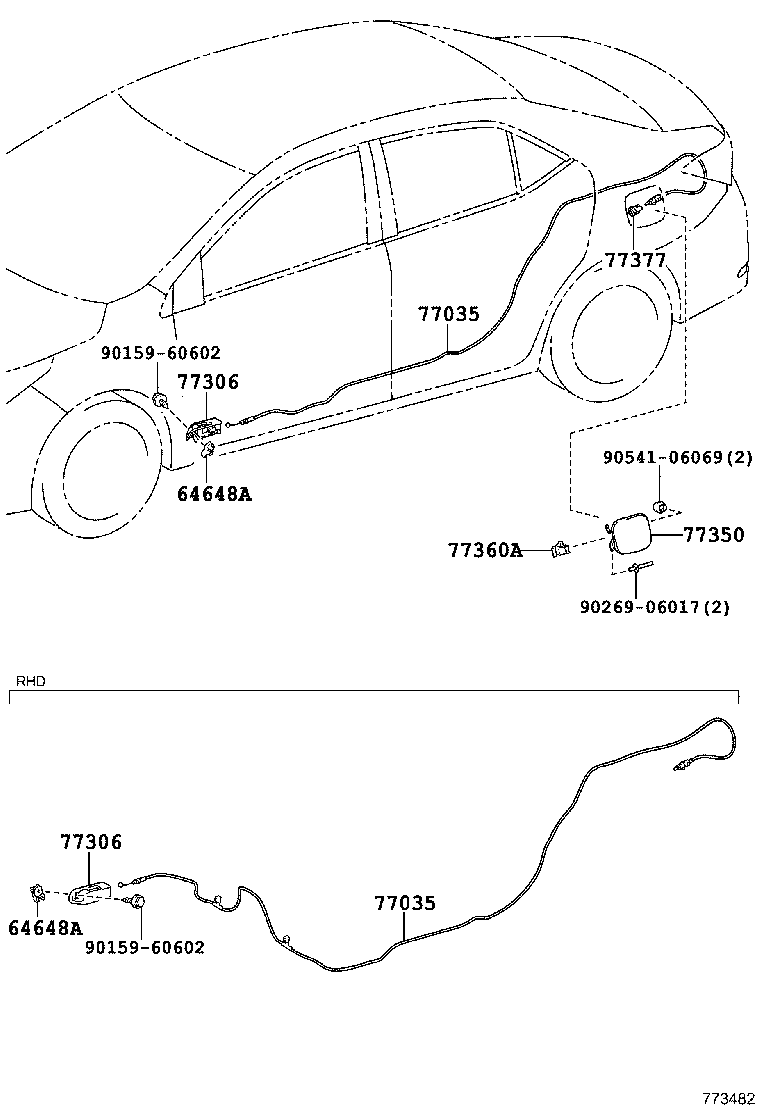

ILLUST NO. 3 OF 3(1306- )

Click highlighted areas on diagram

FUEL LID OPENER

diagram 64648A 64648A 77035 77035 77306 77306 77350 77360A 77377 9015960602 9015960602 9026906017 9054106069
Part # Description Qty Price
64648A - GROMMET, LUGGAGE DOOR LOCK OPENER
64648-12020

NDE180,ZRE18#..TUP

 1
64648A - GROMMET, LUGGAGE DOOR LOCK OPENER
64648-12020

NDE180,ZRE18#..TUP

 1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-02404

NDE180,ZRE18#..TUP

 1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-02404

NDE180,ZRE18#..TUP

 1
77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN
64606-02130

NDE180,ZRE18#..TUP

 1
77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN
64606-02130

NDE180,ZRE18#..TUP

 1
77350 - LID ASSY, FUEL FILLER OPENING
77350-12560

NDE180,ZRE18#..TUP

 1
77360A - SPRING ASSY, FUEL FILLER OPENING LID
77360-02010

NDE180,ZRE18#..TUP

 1
77377 - RETAINER, FUEL FILLER OPENING LID LOCK
77377-0D060

NDE180,ZRE18#..TUP

 1
Common parts
90159-60602
90269-06017
90541-06069
