ZRE181L-DEXDKV (2016)
Toyota Corolla

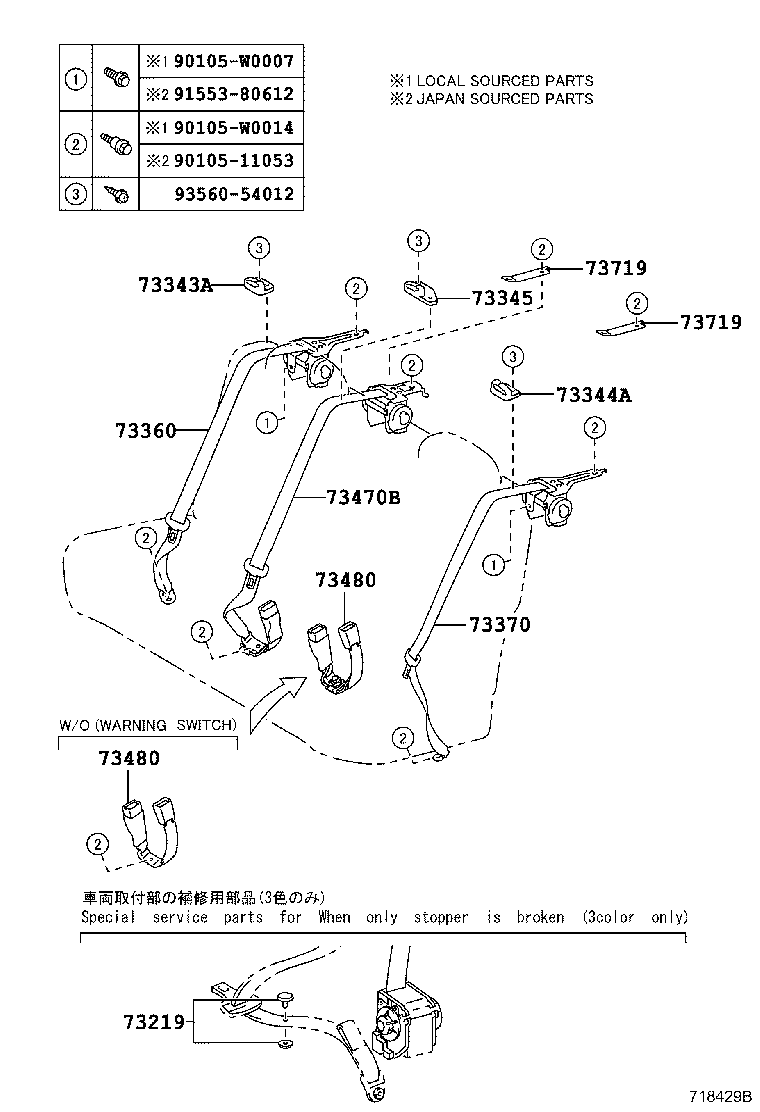

ILLUST NO. 2 OF 3(1306- )
REAR(FOLDING SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33010 |
NDE180,ZRE18#..TUP BLACK |
1 | ||
| 73219-33030 |
NDE180,ZRE18#..TUP BEIGE |
1 | ||
| 73219-33020 |
NDE180,ZRE18#..TUP GRAY |
1 | ||
| 73343A - GUIDE, REAR SEAT SHOULDER BELT, RH | ||||
| 73343-02080C0 |
NDE180,ZRE18#..TUP BLACK,TRIM2# |
1 | ||
| 73343-02080A1 |
NDE180,ZRE18#..TUP FLAXEN,TRIM0# |
1 | ||
| 73344A - GUIDE, REAR SEAT SHOULDER BELT, LH | ||||
| 73344-02040C0 |
NDE180,ZRE18#..TUP BLACK,TRIM2# |
1 | ||
| 73344-02040A1 |
NDE180,ZRE18#..TUP FLAXEN,TRIM0# |
1 | ||
| 73345 - GUIDE, REAR SEAT SHOULDER BELT, CENTER | ||||
| 73345-02030A1 |
NDE180,ZRE18#..TUP FLAXEN,TRIM0# |
1 | ||
| 73345-02030C0 |
NDE180,ZRE18#..TUP BLACK,TRIM2# |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-02570A1 |
NDE180,ZRE18#..TUP FLAXEN,TRIM0# |
1 | ||
| 73360-02570C0 |
NDE180,ZRE18#..TUP BLACK,TRIM2# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73370-02150C0 |
NDE180,ZRE18#..TUP BLACK,TRIM2# |
1 | ||
| 73370-02150A1 |
NDE180,ZRE18#..TUP FLAXEN,TRIM0# |
1 | ||
| 73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH | ||||
| 73470-02401C1 |
NDE180,ZRE18#..TUP BLACK,TRIM2# |
1 | ||
| 73470-02401A2 |
NDE180,ZRE18#..TUP FLAXEN,TRIM0# |
1 | ||
| 73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH | ||||
| 73480-02571A2 |
NDE180,ZRE18#..TUP FLAXEN,TRIM0# |
1 | ||
| 73480-02571C1 |
NDE180,ZRE18#..TUP BLACK,TRIM2# |
1 | ||
| 73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH | ||||
| 73480-02571A2 |
NDE180,ZRE18#..TUP FLAXEN,TRIM0# |
1 | ||
| 73480-02571C1 |
NDE180,ZRE18#..TUP BLACK,TRIM2# |
1 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-02060 |
NDE180,ZRE18#..TUP CHILD RESTRAINT SYSTEM-WITH |
2 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-02060 |
NDE180,ZRE18#..TUP CHILD RESTRAINT SYSTEM-WITH |
2 | ||
| Common parts | ||||
| 90105-11053 | ||||
| 90105-W0007 | ||||
| 90105-W0014 | ||||
| 91553-80612 | ||||
| 93560-54012 | ||||

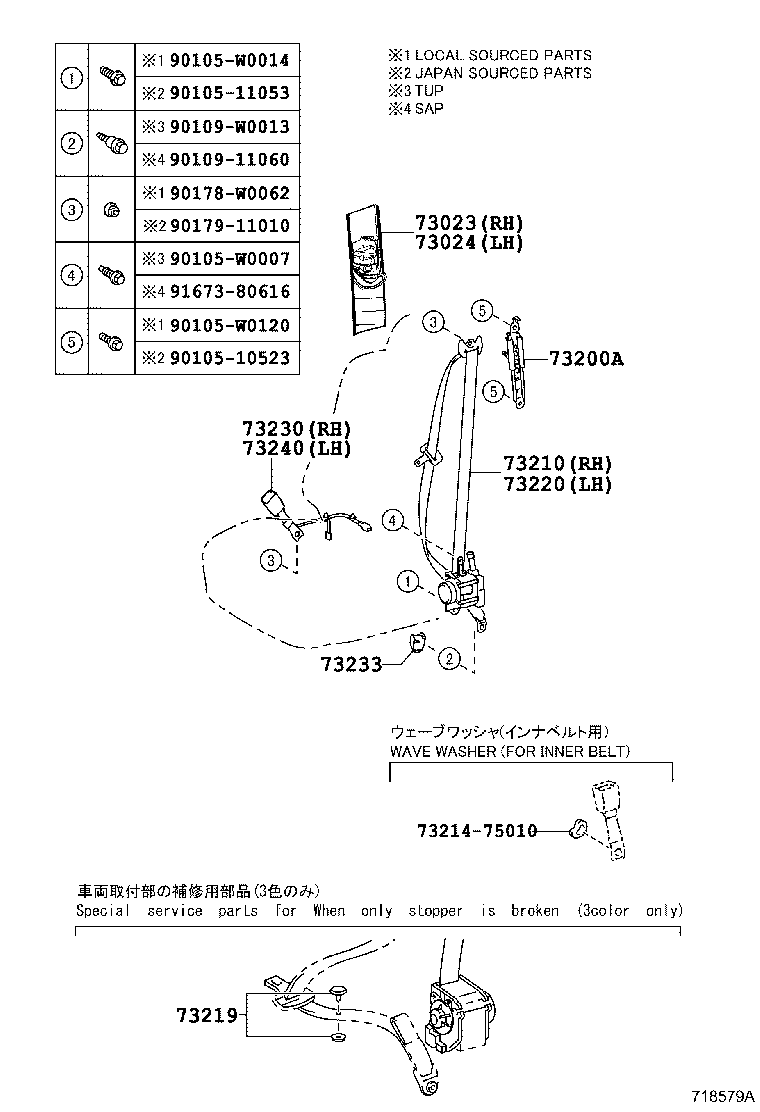

ILLUST NO. 1 OF 2(1306- )
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH | ||||
| 73023-02060A1 |
NDE180,ZRE18#..TUP FLAXEN,TRIM0# |
1 | ||
| 73023-02060B0 |
NDE180,ZRE18#..TUP LT.GRAY,TRIM2# |
1 | ||
| 73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH | ||||
| 73024-02060A1 |
NDE180,ZRE18#..TUP FLAXEN,TRIM0# |
1 | ||
| 73024-02060B0 |
NDE180,ZRE18#..TUP LT.GRAY,TRIM2# |
1 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-F4010 |
NDE180,ZRE18#..TUP |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-02590C0 |
NDE180,ZRE18#..TUP BLACK,TRIM2# |
1 | ||
| 73210-02590A1 |
NDE180,ZRE18#..TUP FLAXEN,TRIM0# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33010 |
NDE180,ZRE18#..TUP BLACK |
1 | ||
| 73219-33030 |
NDE180,ZRE18#..TUP BEIGE |
1 | ||
| 73219-33020 |
NDE180,ZRE18#..TUP GRAY |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-02540C0 |
NDE180,ZRE18#..TUP BLACK,TRIM2# |
1 | ||
| 73220-02540A1 |
NDE180,ZRE18#..TUP FLAXEN,TRIM0# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-02820C0 |
NDE180,ZRE18#..TUP BLACK,TRIM2# |
1 | ||
| 73230-02820A1 |
NDE180,ZRE18#..TUP FLAXEN,TRIM0# |
1 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-02040C1 |
NDE180,ZRE18#..TUP EU BLACK,TRIM0#,2# |
2 | ||
| 73233-02040C0 |
NDE180,NRE180,ZRE18#..TUP BLACK,TRIM0#,2# |
2 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-02810C0 |
NDE180,ZRE18#..TUP BLACK,TRIM2# |
1 | ||
| 73230-02810A1 |
NDE180,ZRE18#..TUP FLAXEN,TRIM0# |
1 | ||
| Common parts | ||||
| 73214-75010 | ||||
| 90105-10523 | ||||
| 90105-11053 | ||||
| 90105-W0007 | ||||
| 90105-W0014 | ||||
| 90105-W0120 | ||||
| 90109-11060 | ||||
| 90109-W0013 | ||||
| 90178-W0062 | ||||
| 90179-11010 | ||||
| 91673-80616 | ||||
