ZRE181L-DEXDKV (2016)
Toyota Corolla

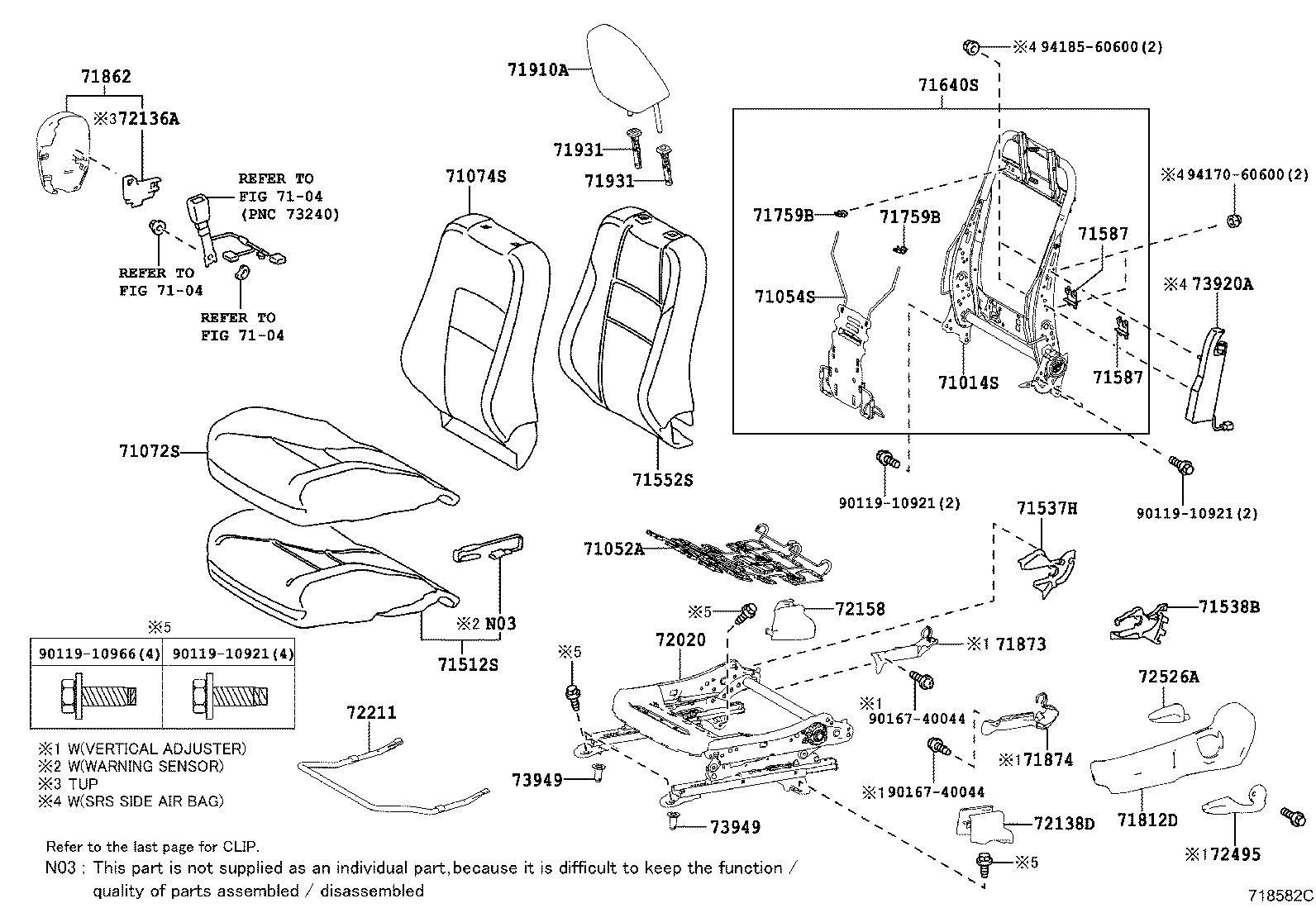

ILLUST NO. 1 OF 2(1306- )
LH SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-02080 |
NDE180,ZRE18#..D..TUP SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA) |
1 | ||
| 71014-02080 |
NDE180,ZRE18#..D..TUP SRS AIR BAG-WITH(*DRS & *PAS & SIDE) |
1 | ||
| 71014-02080 |
NDE180,ZRE18#..D..TUP CHILD RESTRAINT SYSTEM-WITH&SRS AIR BAG-WITH(*DRS & *PAS & SIDE) |
1 | ||
| 71014-02080 |
NDE180,ZRE18#..D..TUP CHILD RESTRAINT SYSTEM-WITH&SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA) |
1 | ||
| 71014-02090 |
NDE180,ZRE18#..D..TUP |
1 | ||
| 71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71051-0D060 |
NDE180,ZRE18#..TUP |
1 | ||
| 71054S - SPRING SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71053-02090 |
NDE180,ZRE18#..TUP |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-0Z421A3 |
NDE180,NRE180,ZRE18#..D..TUP FLAXEN,TRIM0# |
1 | ||
| 71072-0Z421C3 |
NDE180,NRE180,ZRE18#..D..TUP BLACK,TRIM2# |
1 | ||
| 71072-0Z421A4 |
NDE180,ZRE18#..D..TUP FLAXEN,TRIM0# |
1 | ||
| 71072-0Z421C4 |
NDE180,ZRE18#..D..TUP BLACK,TRIM2# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-0ZC21A4 |
NDE180,ZRE18#..D..TUP SRS AIR BAG-WITH(*DRS & *PAS & SIDE),FLAXEN,TRIM0# |
1 | ||
| 71074-0ZC21C4 |
NDE180,ZRE18#..D..TUP SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71074-0ZC21A4 |
NDE180,ZRE18#..D..TUP CHILD RESTRAINT SYSTEM-WITH&SRS AIR BAG-WITH(*DRS & *PAS & SIDE),FLAXEN,TRIM0# |
1 | ||
| 71074-0ZC21C4 |
NDE180,ZRE18#..D..TUP CHILD RESTRAINT SYSTEM-WITH&SRS AIR BAG-WITH(*DRS & *PAS & SIDE),BLACK,TRIM2# |
1 | ||
| 71074-0ZC21C4 |
NDE180,ZRE18#..D..TUP SRS AIR BAG-WITH(*DRS & *PAS & SIDE),BLACK,TRIM2# |
1 | ||
| 71074-0ZC21A4 |
NDE180,ZRE18#..D..TUP CHILD RESTRAINT SYSTEM-WITH&SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA),FLAXEN,TRIM0# |
1 | ||
| 71074-0ZC11C4 |
NDE180,ZRE18#..D..TUP BLACK,TRIM2# |
1 | ||
| 71074-0ZC21A4 |
NDE180,ZRE18#..D..TUP SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA),FLAXEN,TRIM0# |
1 | ||
| 71074-0ZC21C4 |
NDE180,ZRE18#..D..TUP CHILD RESTRAINT SYSTEM-WITH&SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71074-0ZC11A4 |
NDE180,ZRE18#..D..TUP FLAXEN,TRIM0# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-02500 |
NDE180,ZRE18#..TUP |
1 | ||
| 71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT) | ||||
| 71537-02140C0 |
NDE180,ZRE18#..TUP BLACK,TRIM0#,2# |
1 | ||
| 71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT) | ||||
| 71538-02090C0 |
NDE180,ZRE18#..TUP BLACK,TRIM0#,2# |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-02880 |
NDE180,ZRE18#..D..TUP |
1 | ||
| 71552-02710 |
NDE180,ZRE18#..D..TUP CHILD RESTRAINT SYSTEM-WITH&SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA) |
1 | ||
| 71552-02710 |
NDE180,ZRE18#..D..TUP SRS AIR BAG-WITH(*DRS & *PAS & SIDE) |
1 | ||
| 71552-02710 |
NDE180,ZRE18#..D..TUP SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA) |
1 | ||
| 71552-02710 |
NDE180,ZRE18#..D..TUP CHILD RESTRAINT SYSTEM-WITH&SRS AIR BAG-WITH(*DRS & *PAS & SIDE) |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-02020 |
NDE180,ZRE18#..TUP |
4 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-02020 |
NDE180,ZRE18#..TUP |
4 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-02600 |
NDE180,ZRE18#..D..TUP CHILD RESTRAINT SYSTEM-WITH&SRS AIR BAG-WITH(*DRS & *PAS & SIDE) |
1 | ||
| 71640-02610 |
NDE180,ZRE18#..D..TUP |
1 | ||
| 71640-02600 |
NDE180,ZRE18#..D..TUP SRS AIR BAG-WITH(*DRS & *PAS & SIDE) |
1 | ||
| 71640-02600 |
NDE180,ZRE18#..D..TUP SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA) |
1 | ||
| 71640-02600 |
NDE180,ZRE18#..D..TUP CHILD RESTRAINT SYSTEM-WITH&SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA) |
1 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-47011 |
NDE180,ZRE18#..TUP |
4 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-47011 |
NDE180,ZRE18#..TUP |
4 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-02610C0 |
NDE180,ZRE18#..D..TUP BLACK,TRIM0#,2# |
1 | ||
| 71812-02620C0 |
NDE180,ZRE18#..D..TUP SRS AIR BAG-WITH(*DRS & *PAS & SIDE),BLACK,TRIM0#,2# |
1 | ||
| 71812-02620C0 |
NDE180,ZRE18#..D..TUP CHILD RESTRAINT SYSTEM-WITH&SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA),BLACK,TRIM0#,2# |
1 | ||
| 71812-02620C0 |
NDE180,ZRE18#..D..TUP CHILD RESTRAINT SYSTEM-WITH&SRS AIR BAG-WITH(*DRS & *PAS & SIDE),BLACK,TRIM0#,2# |
1 | ||
| 71812-02620C0 |
NDE180,ZRE18#..D..TUP SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA),BLACK,TRIM0#,2# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-02230C0 |
NDE180,ZRE18#..TUP BLACK,TRIM0#,2# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-02140 |
NDE180,ZRE18#..TUP |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-02130 |
NDE180,ZRE18#..TUP |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-02K71A4 |
NDE180,ZRE18#..D..TUP FLAXEN,TRIM0# |
2 | ||
| 71910-02K71C4 |
NDE180,ZRE18#..D..TUP BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020C0 |
NDE180,NRE180,ZRE18#..TUP W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-47020A7 |
NDE180,ZRE18#..TUP W(LOCK),FLAXEN,TRIM0# |
2 | ||
| 71931-47020A7 |
NDE180,ZRE18#..TUP W/O(LOCK),FLAXEN,TRIM0# |
2 | ||
| 71930-47020C4 |
NDE180,ZRE18#..TUP W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47020C0 |
NDE180,NRE180,ZRE18#..TUP W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47020C4 |
NDE180,ZRE18#..TUP W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020C0 |
NDE180,NRE180,ZRE18#..TUP W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-47020A7 |
NDE180,ZRE18#..TUP W(LOCK),FLAXEN,TRIM0# |
2 | ||
| 71931-47020A7 |
NDE180,ZRE18#..TUP W/O(LOCK),FLAXEN,TRIM0# |
2 | ||
| 71930-47020C4 |
NDE180,ZRE18#..TUP W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47020C0 |
NDE180,NRE180,ZRE18#..TUP W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47020C4 |
NDE180,ZRE18#..TUP W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 72020 - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-02521 |
NDE180,ZRE18#..TUP |
1 | ||
| 72136A - SPACER, SEAT TRACK, LOWER NO.2 | ||||
| 72136-02210 |
NDE180,ZRE18#..TUP |
1 | ||
| 72138D - COVER, SEAT TRACK, OUTER, LH | ||||
| 72138-02240C0 |
NDE180,ZRE18#..TUP BLACK,TRIM0#,2# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-02250C0 |
NDE180,ZRE18#..TUP BLACK,TRIM0#,2# |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-02130 |
NDE180,ZRE18#..TUP |
2 | ||
| 72495 - HANDLE, VERTICAL ADJUSTING, LH | ||||
| 72494-02160C0 |
NDE180,ZRE18#..TUP BLACK,TRIM0#,2# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72525-02200C0 |
NDE180,ZRE18#..TUP BLACK,TRIM0#,2# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-02090 |
NDE180,ZRE18#..D..TUP SRS AIR BAG-WITH(*DRS & *PAS & SIDE) |
1 | ||
| 73920-02090 |
NDE180,ZRE18#..D..TUP CHILD RESTRAINT SYSTEM-WITH&SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA) |
1 | ||
| 73920-02090 |
NDE180,ZRE18#..D..TUP SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA) |
1 | ||
| 73920-02090 |
NDE180,ZRE18#..D..TUP CHILD RESTRAINT SYSTEM-WITH&SRS AIR BAG-WITH(*DRS & *PAS & SIDE) |
1 | ||
| 73949 - CAP | ||||
| 71848-02040 |
NDE180,ZRE18#..TUP |
4 | ||
| 73949 - CAP | ||||
| 71848-02040 |
NDE180,ZRE18#..TUP |
4 | ||
| Common parts | ||||
| 90119-10921 | ||||
| 90119-10966 | ||||
| 90167-40044 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||

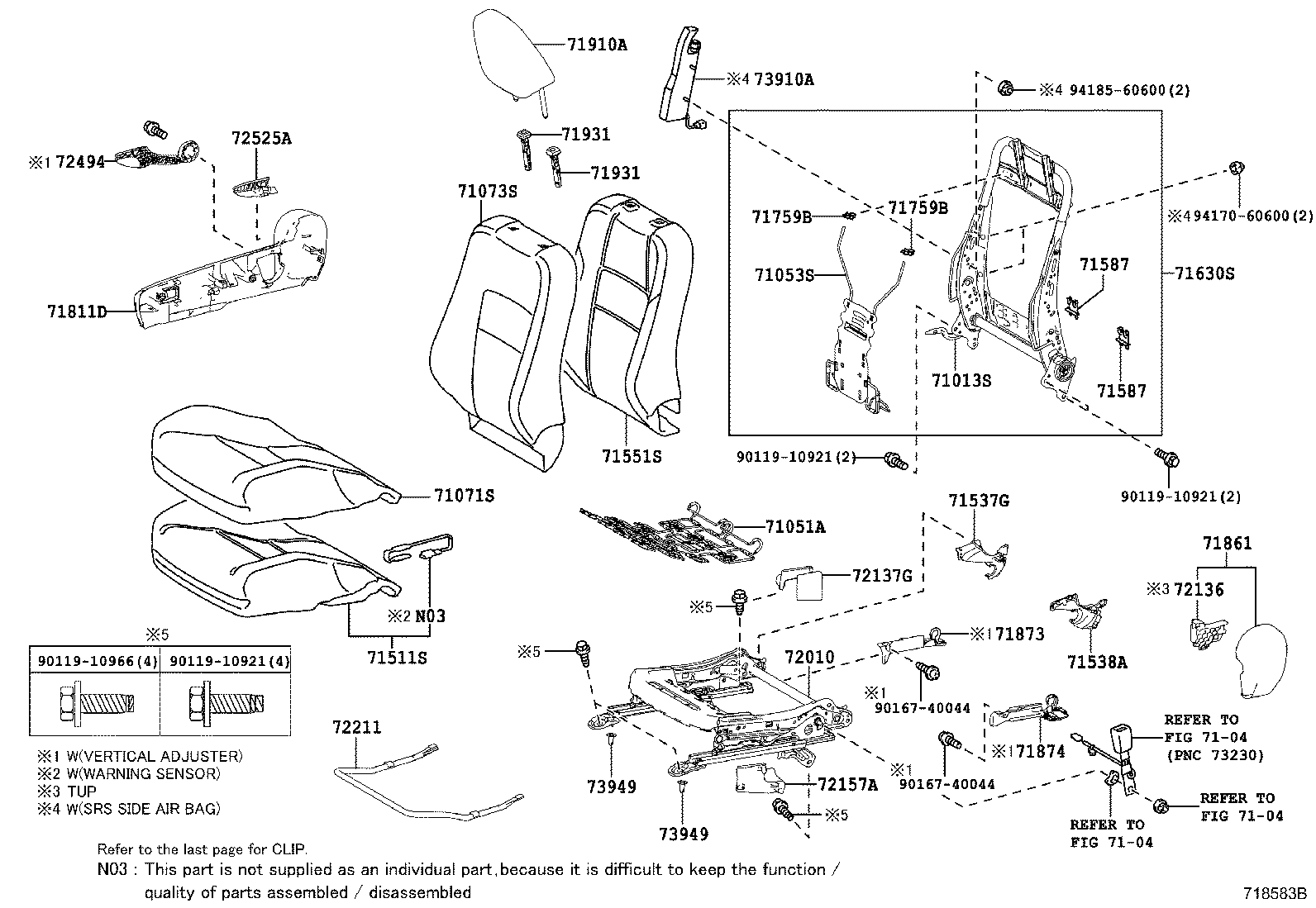

ILLUST NO. 2 OF 2(1306- )
RH SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-02150 |
NDE180,ZRE18#..D..TUP SRS AIR BAG-WITH(*DRS & *PAS & SIDE) |
1 | ||
| 71013-02150 |
NDE180,ZRE18#..D..TUP SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA) |
1 | ||
| 71013-02160 |
NDE180,ZRE18#..D..TUP |
1 | ||
| 71013-02150 |
NDE180,ZRE18#..D..TUP CHILD RESTRAINT SYSTEM-WITH&SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA) |
1 | ||
| 71013-02150 |
NDE180,ZRE18#..D..TUP CHILD RESTRAINT SYSTEM-WITH&SRS AIR BAG-WITH(*DRS & *PAS & SIDE) |
1 | ||
| 71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71051-0D060 |
NDE180,ZRE18#..TUP |
1 | ||
| 71053S - SPRING SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71053-02090 |
NDE180,ZRE18#..TUP |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-0ZD21C3 |
NDE180,NRE180,ZRE18#..D..TUP BLACK,TRIM2# |
1 | ||
| 71071-0ZD21A4 |
NDE180,NRE180,ZRE18#..D..TUP FLAXEN,TRIM0# |
1 | ||
| 71071-0ZD21C4 |
NDE180,ZRE18#..D..TUP BLACK,TRIM2# |
1 | ||
| 71071-0ZD21A5 |
NDE180,ZRE18#..D..TUP FLAXEN,TRIM0# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-0ZD31A4 |
NDE180,ZRE18#..D..TUP SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA),FLAXEN,TRIM0# |
1 | ||
| 71073-0ZD31C4 |
NDE180,ZRE18#..D..TUP CHILD RESTRAINT SYSTEM-WITH&SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71073-0ZD11A4 |
NDE180,ZRE18#..D..TUP FLAXEN,TRIM0# |
1 | ||
| 71073-0ZD11C4 |
NDE180,ZRE18#..D..TUP BLACK,TRIM2# |
1 | ||
| 71073-0ZD31A4 |
NDE180,ZRE18#..D..TUP SRS AIR BAG-WITH(*DRS & *PAS & SIDE),FLAXEN,TRIM0# |
1 | ||
| 71073-0ZD31C4 |
NDE180,ZRE18#..D..TUP CHILD RESTRAINT SYSTEM-WITH&SRS AIR BAG-WITH(*DRS & *PAS & SIDE),BLACK,TRIM2# |
1 | ||
| 71073-0ZD31C4 |
NDE180,ZRE18#..D..TUP SRS AIR BAG-WITH(*DRS & *PAS & SIDE),BLACK,TRIM2# |
1 | ||
| 71073-0ZD31A4 |
NDE180,ZRE18#..D..TUP CHILD RESTRAINT SYSTEM-WITH&SRS AIR BAG-WITH(*DRS & *PAS & SIDE),FLAXEN,TRIM0# |
1 | ||
| 71073-0ZD31C4 |
NDE180,ZRE18#..D..TUP SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71073-0ZD31A4 |
NDE180,ZRE18#..D..TUP CHILD RESTRAINT SYSTEM-WITH&SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA),FLAXEN,TRIM0# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-02031 |
NDE180,ZRE18#..TUP |
1 | ||
| 71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) | ||||
| 71537-02160C0 |
NDE180,ZRE18#..TUP BLACK,TRIM0#,2# |
1 | ||
| 71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT) | ||||
| 71538-02080C0 |
NDE180,ZRE18#..TUP BLACK,TRIM0#,2# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-02880 |
NDE180,ZRE18#..D..TUP |
1 | ||
| 71551-02890 |
NDE180,ZRE18#..D..TUP SRS AIR BAG-WITH(*DRS & *PAS & SIDE) |
1 | ||
| 71551-02890 |
NDE180,ZRE18#..D..TUP SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA) |
1 | ||
| 71551-02890 |
NDE180,ZRE18#..D..TUP CHILD RESTRAINT SYSTEM-WITH&SRS AIR BAG-WITH(*DRS & *PAS & SIDE) |
1 | ||
| 71551-02890 |
NDE180,ZRE18#..D..TUP CHILD RESTRAINT SYSTEM-WITH&SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA) |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-02020 |
NDE180,ZRE18#..TUP |
4 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-02020 |
NDE180,ZRE18#..TUP |
4 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-02640 |
NDE180,ZRE18#..D..TUP SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA) |
1 | ||
| 71630-02640 |
NDE180,ZRE18#..D..TUP CHILD RESTRAINT SYSTEM-WITH&SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA) |
1 | ||
| 71630-02640 |
NDE180,ZRE18#..D..TUP CHILD RESTRAINT SYSTEM-WITH&SRS AIR BAG-WITH(*DRS & *PAS & SIDE) |
1 | ||
| 71630-02640 |
NDE180,ZRE18#..D..TUP SRS AIR BAG-WITH(*DRS & *PAS & SIDE) |
1 | ||
| 71630-02650 |
NDE180,ZRE18#..D..TUP |
1 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-47011 |
NDE180,ZRE18#..TUP |
4 | ||
| 71759B - HOOK, FRONT SEAT BACK | ||||
| 71759-47011 |
NDE180,ZRE18#..TUP |
4 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-02460C0 |
NDE180,ZRE18#..D..TUP CHILD RESTRAINT SYSTEM-WITH&SRS AIR BAG-WITH(*DRS & *PAS & SIDE),BLACK,TRIM0#,2# |
1 | ||
| 71811-02460C0 |
NDE180,ZRE18#..D..TUP SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA),BLACK,TRIM0#,2# |
1 | ||
| 71811-02460C0 |
NDE180,ZRE18#..D..TUP CHILD RESTRAINT SYSTEM-WITH&SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA),BLACK,TRIM0#,2# |
1 | ||
| 71811-02460C0 |
NDE180,ZRE18#..D..TUP SRS AIR BAG-WITH(*DRS & *PAS & SIDE),BLACK,TRIM0#,2# |
1 | ||
| 71811-02470C0 |
NDE180,ZRE18#..D..TUP BLACK,TRIM0#,2# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-02210C0 |
NDE180,ZRE18#..TUP BLACK,TRIM0#,2# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-02140 |
NDE180,ZRE18#..TUP |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-02130 |
NDE180,ZRE18#..TUP |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-02K71A4 |
NDE180,ZRE18#..D..TUP FLAXEN,TRIM0# |
2 | ||
| 71910-02K71C4 |
NDE180,ZRE18#..D..TUP BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020C0 |
NDE180,NRE180,ZRE18#..TUP W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-47020A7 |
NDE180,ZRE18#..TUP W(LOCK),FLAXEN,TRIM0# |
2 | ||
| 71931-47020A7 |
NDE180,ZRE18#..TUP W/O(LOCK),FLAXEN,TRIM0# |
2 | ||
| 71930-47020C4 |
NDE180,ZRE18#..TUP W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47020C0 |
NDE180,NRE180,ZRE18#..TUP W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47020C4 |
NDE180,ZRE18#..TUP W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020C0 |
NDE180,NRE180,ZRE18#..TUP W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-47020A7 |
NDE180,ZRE18#..TUP W(LOCK),FLAXEN,TRIM0# |
2 | ||
| 71931-47020A7 |
NDE180,ZRE18#..TUP W/O(LOCK),FLAXEN,TRIM0# |
2 | ||
| 71930-47020C4 |
NDE180,ZRE18#..TUP W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47020C0 |
NDE180,NRE180,ZRE18#..TUP W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47020C4 |
NDE180,ZRE18#..TUP W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 72010 - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-02511 |
NDE180,ZRE18#..TUP |
1 | ||
| 72136 - SPACER, SEAT TRACK, LOWER NO.1 | ||||
| 72136-02170 |
NDE180,ZRE18#..TUP |
1 | ||
| 72137G - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-02280C0 |
NDE180,ZRE18#..TUP BLACK,TRIM0#,2# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-02260C0 |
NDE180,ZRE18#..TUP BLACK,TRIM0#,2# |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-02130 |
NDE180,ZRE18#..TUP |
2 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-02150C0 |
NDE180,ZRE18#..TUP BLACK,TRIM0#,2# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-02240 |
NDE180,ZRE18#..D..TUP SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA) |
1 | ||
| 73910-02240 |
NDE180,ZRE18#..D..TUP CHILD RESTRAINT SYSTEM-WITH&SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA) |
1 | ||
| 73910-02240 |
NDE180,ZRE18#..D..TUP CHILD RESTRAINT SYSTEM-WITH&SRS AIR BAG-WITH(*DRS & *PAS & SIDE) |
1 | ||
| 73910-02240 |
NDE180,ZRE18#..D..TUP SRS AIR BAG-WITH(*DRS & *PAS & SIDE) |
1 | ||
| 73949 - CAP | ||||
| 71848-02040 |
NDE180,ZRE18#..TUP |
4 | ||
| 73949 - CAP | ||||
| 71848-02040 |
NDE180,ZRE18#..TUP |
4 | ||
| Common parts | ||||
| 90119-10921 | ||||
| 90119-10966 | ||||
| 90167-40044 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(1306- )

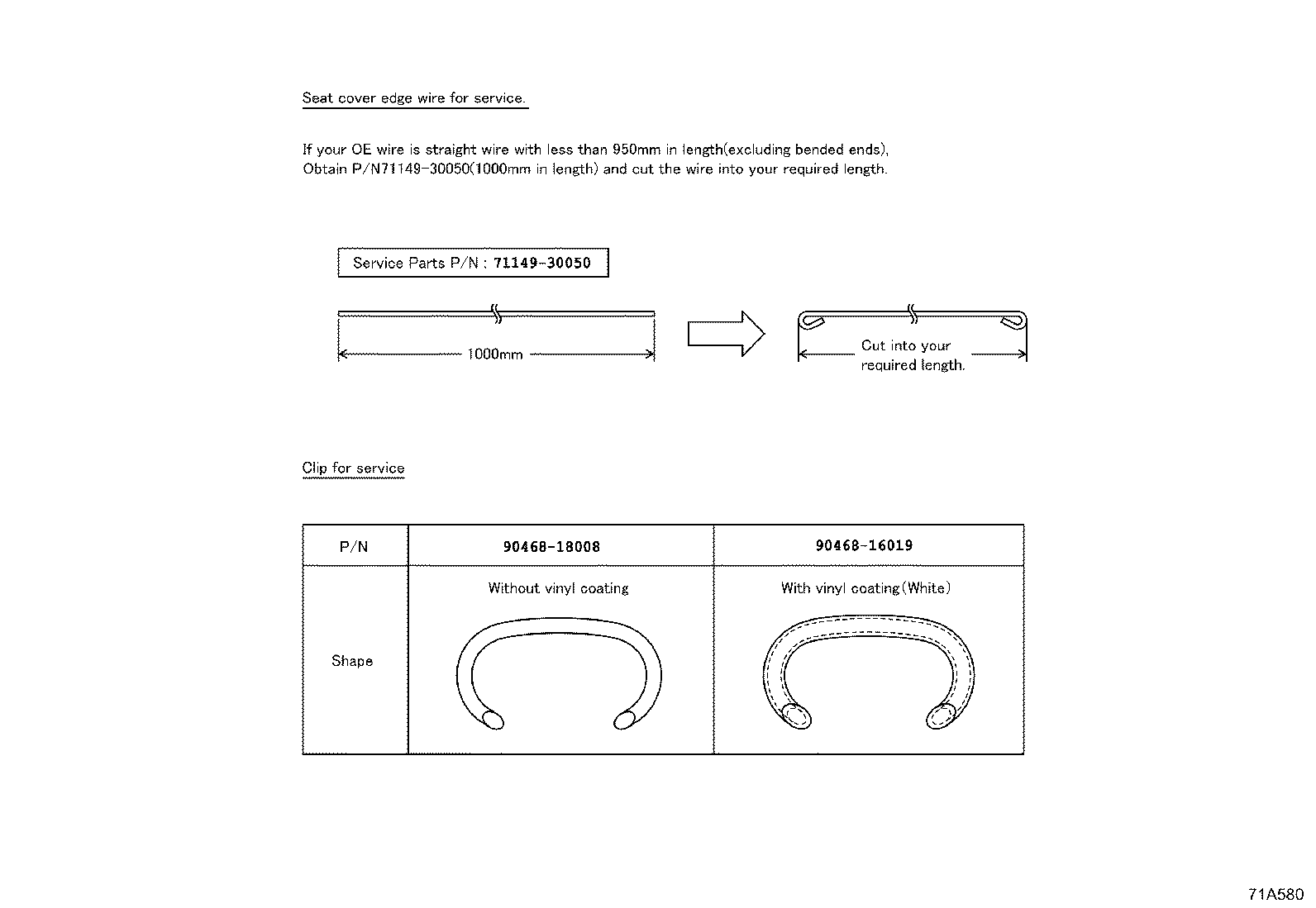

SEAT COVER EDGE WIRE & CLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 71149-30050 | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
