ZRE181L-DEXDKV (2016)

Toyota Corolla

Production Jun 2016 - Jan 2019
Engine 1ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1306- )LHD

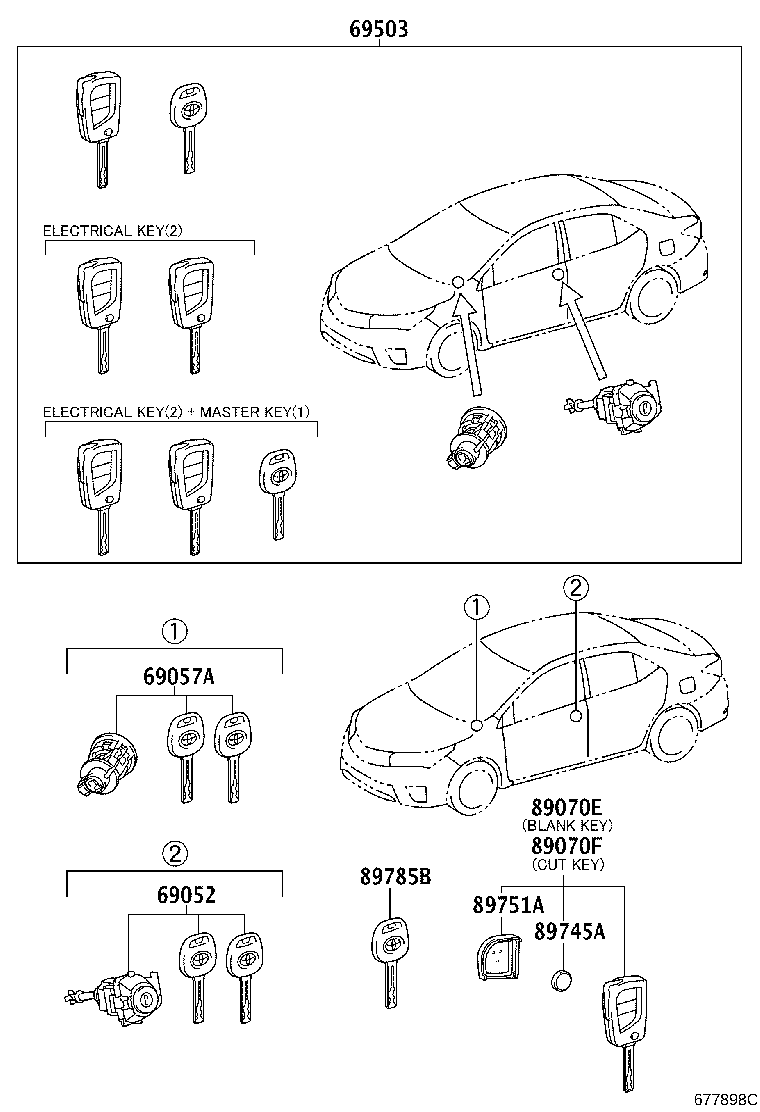

Click highlighted areas on diagram

WITHOUT(SMART KEY)

diagram 69052 69057A 69503 89070E 89070F 89745A 89751A 89785B
Part # Description Qty Price
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-02290

NDE180,ZRE18#..TUP

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-02500

NDE180,ZRE18#..TUP

 1
69503 - CYLINDER SET, LOCK
89704-02670

NDE180,NRE180,ZRE18#..TUP

WIRELESS KEY(2) + MASTER KEY(1)

 1
89704-02650

NDE180,NRE180,ZRE18#..TUP

WIRELESS KEY(2)

 1
89070E - TRANSMITTER ASSY, DOOR CONTROL
89070-02850

NDE180,NRE180,ZRE18#

 1
89070F - TRANSMITTER ASSY, DOOR CONTROL (CUT KEY)
89070-02830

NDE180,NRE180,ZRE18#..LHD

 1
89070-02830

NDE180,NRE180,ZRE18#..TUP

WIRELESS KEY(2)

 2
89070-02830

NDE180,NRE180,ZRE18#..TUP

WIRELESS KEY(2) + MASTER KEY(1)

 2
89070-02831

NDE180,ZRE18#..TUP

WIRELESS KEY(2)

 2
89070-02831

NDE180,ZRE18#..TUP

WIRELESS KEY(2) + MASTER KEY(1)

 2
89751A - COVER, TRANSMITTER HOUSING
89751-05020

NDE180,NRE180,ZRE18#..TUP

WIRELESS KEY(2)

 2
89751-05020

NDE180,NRE180,ZRE18#..TUP

WIRELESS KEY(2) + MASTER KEY(1)

 2
89785B - TRANSMITTER, TRANSPONDER KEY MASTER
89785-02300

NDE180,ZRE18#..TUP

 1

(1606- )TUP ; (1701- )GEN..SAP

Click highlighted areas on diagram

WITH(SMART ENTRY)

diagram 69503 69503A 69503B 89072B 89745C 89904B
Part # Description Qty Price
69503 - CYLINDER SET, LOCK
89704-02670

NDE180,NRE180,ZRE18#..TUP

WIRELESS KEY(2) + MASTER KEY(1)

 1
89704-02650

NDE180,NRE180,ZRE18#..TUP

WIRELESS KEY(2)

 1
