ZRE181L-DEXDKV (2016)

Toyota Corolla

Production Jun 2016 - Jan 2019
Engine 1ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1306- )

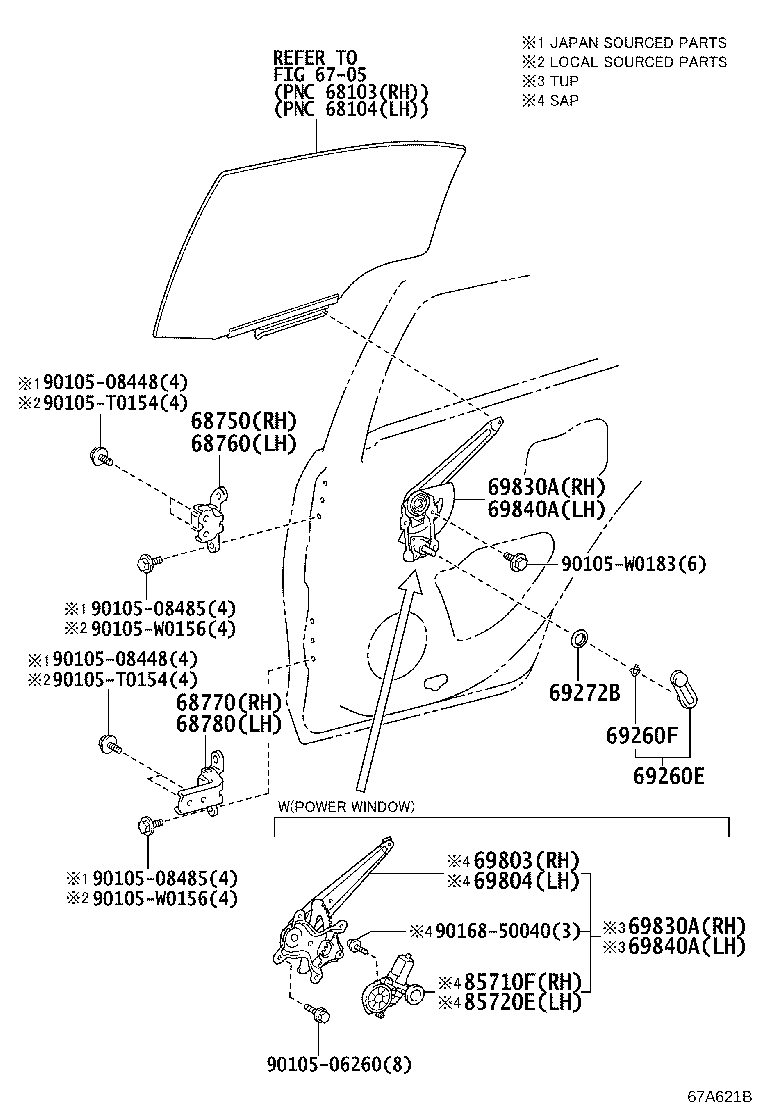

Click highlighted areas on diagram

diagram 6705 68750 68760 68770 68780 69260E 69260F 69272B 69803 69804 69830A 69830A 69840A 69840A 85710F 85720E 9010506260 9010508448 9010508448 9010508485 9010508485 90105T0154 90105T0154 90105W0156 90105W0156 90105W0183 9016850040
Part # Description Qty Price
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-0D061

NDE180,ZRE18#..TUP

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68760-0D061

NDE180,ZRE18#..TUP

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-0D071

NDE180,ZRE18#..TUP

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-0D071

NDE180,ZRE18#..TUP

 1
69260E - HANDLE ASSY, REAR DOOR WINDOW REGULATOR
69260-02021C1

NDE180,ZRE18#..D..TUP

EU BLACK,TRIM0#,2#

 2
69260F - RING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)
90080-52100

NDE180,ZRE18#..D..TUP

 2
69272B - PLATE, REAR DOOR REGULATOR INSIDE HANDLE
69268-02022

NDE180,ZRE18#..D..TUP

 2
69830A - REGULATOR ASSY, REAR DOOR WINDOW, RH
69830-02520

NDE180,ZRE18#..D..TUP

 1
69830A - REGULATOR ASSY, REAR DOOR WINDOW, RH
69830-02520

NDE180,ZRE18#..D..TUP

 1
69840A - REGULATOR ASSY, REAR DOOR WINDOW, LH
69840-02520

NDE180,ZRE18#..D..TUP

 1
69840A - REGULATOR ASSY, REAR DOOR WINDOW, LH
69840-02520

NDE180,ZRE18#..D..TUP

 1
Common parts
90105-06260
90105-08448
90105-08485
90105-T0154
90105-W0156
90105-W0183
90168-50040
Linked diagrams
6705
