ZRE181L-DEXDKV (2016)

Toyota Corolla

Production Jun 2016 - Jan 2019
Engine 1ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1306- )

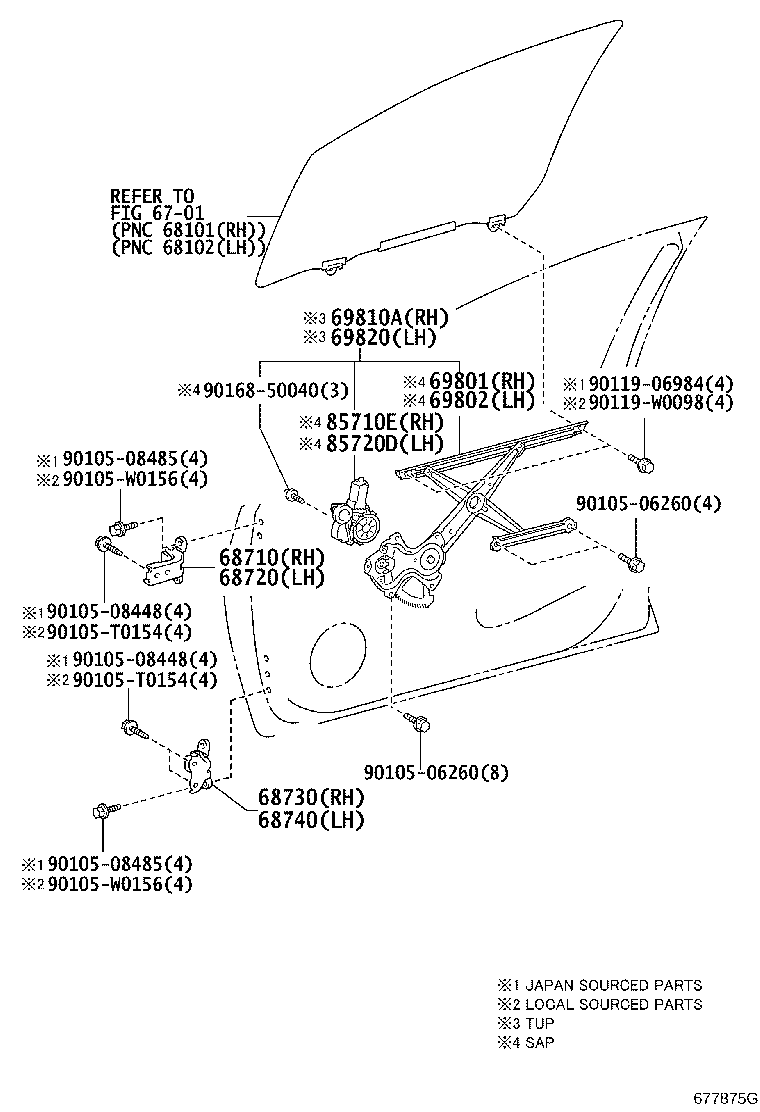

Click highlighted areas on diagram

diagram 6701 68710 68720 68730 68740 69801 69802 69810A 69820 85710E 85720D 9010506260 9010506260 9010508448 9010508448 9010508485 9010508485 90105T0154 90105T0154 90105W0156 90105W0156 9011906984 90119W0098 9016850040
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-0D091

NDE180,ZRE18#..TUP

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-0D091

NDE180,ZRE18#..TUP

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-0D071

NDE180,ZRE18#..TUP

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-0D071

NDE180,ZRE18#..TUP

 1
69810A - REGULATOR ASSY, FRONT DOOR WINDOW, RH
69810-02530

NDE180,ZRE18#..D..TUP

 1
69820 - REGULATOR ASSY, FRONT DOOR WINDOW, LH
69820-02620

NDE180,ZRE18#..TUP

 1
Common parts
90105-06260
90105-08448
90105-08485
90105-T0154
90105-W0156
90119-06984
90119-W0098
90168-50040
Linked diagrams
6701
