ZRE181L-DEXDKV (2016)

Toyota Corolla

Production Jun 2016 - Jan 2019
Engine 1ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1606- )TUP

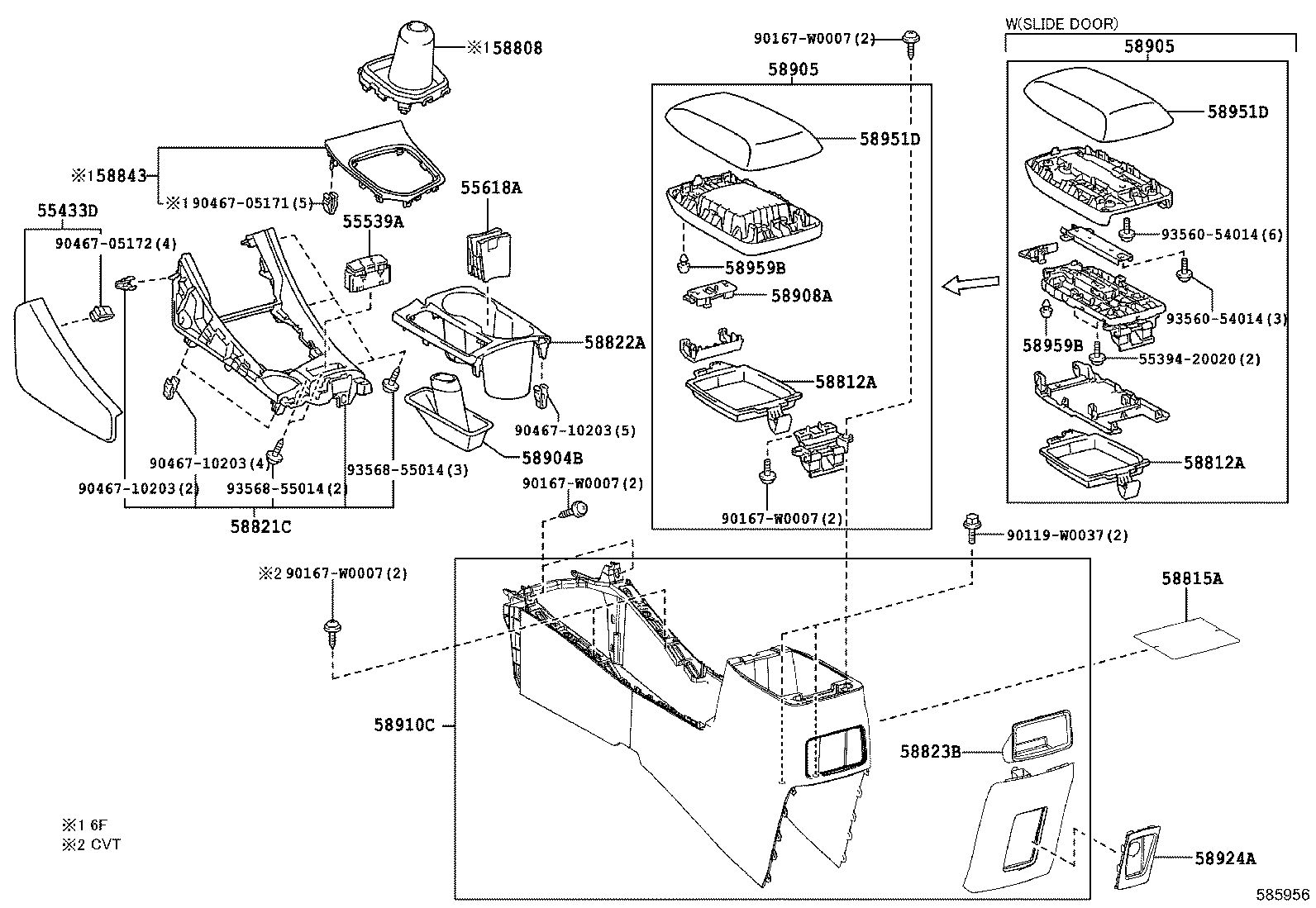

Click highlighted areas on diagram

diagram 5539420020 55433D 55539A 55618A 58808 58812A 58812A 58815A 58821C 58822A 58823B 58843 58904B 58905 58905 58908A 58910C 58924A 58951D 58951D 58959B 58959B 90119W0037 90167W0007 90167W0007 90167W0007 90167W0007 9046705171 9046705172 9046710203 9046710203 9046710203 9356054014 9356054014 9356855014 9356855014
Part # Description Qty Price
55433D - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2
55433-02500C0

NDE180,ZRE18#..TUP

EU BLACK,TRIM0#,2#

 1
55618A - HOLDER, CONSOLE BOX CUP
55618-02210C1

NDE180,ZRE18#..TUP

EU BLACK,TRIM0#,2#

 1
58812A - BOX, CONSOLE, LOWER
58812-02290C1

NDE180,ZRE18#..TUP

EU BLACK,TRIM0#,2#

 1
58812A - BOX, CONSOLE, LOWER
58812-02290C1

NDE180,ZRE18#..TUP

EU BLACK,TRIM0#,2#

 1
58815A - CARPET, CONSOLE BOX
58815-02240

NDE180,ZRE18#..TUP

 1
58821C - PANEL, CONSOLE, UPPER
58821-02740C2

NDE180,ZRE18#..TUP

BLACK,TRIM0#,2#

 1
58821-02740C0

NDE180,NRE180,ZRE18#..TUP

EU BLACK,TRIM0#,2#

 1
58822A - PANEL, CONSOLE, UPPER REAR
58822-02230C1

NDE180,NRE180,ZRE18#..TUP

EU BLACK,TRIM0#,2#

 1
58823B - BOX, CONSOLE COMPARTMENT
58823-02030C1

NDE180,ZRE18#..TUP

EU BLACK,TRIM0#,2#

 1
58904B - COVER SUB-ASSY, PARKING BRAKE HOLE
58904-02200C0

NDE180,ZRE18#..TUP

BLACK,TRIM0#,2#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-02781C5

NDE180,ZRE18#..TUP

BLACK/EU BLACK,TRIM2#

 1
58905-02781A3

NDE180,ZRE18#..TUP

FLAXEN/EU BLACK,TRIM0#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-02781C5

NDE180,ZRE18#..TUP

BLACK/EU BLACK,TRIM2#

 1
58905-02781A3

NDE180,ZRE18#..TUP

FLAXEN/EU BLACK,TRIM0#

 1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-02031

NDE180,ZRE18#..TUP

 1
58910C - BOX ASSY, CONSOLE, REAR
58910-02351C1

NDE180,ZRE18#..TUP

EU BLACK,TRIM0#,2#

 1
58924A - PANEL, CONSOLE REAR END, NO.2
58924-02090C1

NDE180,ZRE18#..D..TUP

EU BLACK,TRIM0#,2#

 1
58924-02110C1

NDE180,ZRE18#..D..TUP

POWER OUTLETS-CIGARETTE LIGHTER & SOCKET(REAR ONLY),EU BLACK,TRIM0#,2#

 1
58951D - DOOR, CONSOLE COMPARTMENT, OUTER
58951-02570A2

NDE180,ZRE18#..TUP

FLAXEN,TRIM0#

 1
58951-02570C5

NDE180,ZRE18#..TUP

BLACK,TRIM2#

 1
58951D - DOOR, CONSOLE COMPARTMENT, OUTER
58951-02570A2

NDE180,ZRE18#..TUP

FLAXEN,TRIM0#

 1
58951-02570C5

NDE180,ZRE18#..TUP

BLACK,TRIM2#

 1
58959B - CUSHION, CONSOLE COMPARTMENT DOOR
90541-03078

NDE180,ZRE18#..TUP

 3
58959B - CUSHION, CONSOLE COMPARTMENT DOOR
90541-03078

NDE180,ZRE18#..TUP

 3
Common parts
55394-20020
90119-W0037
90167-W0007
90467-05171
90467-05172
90467-10203
93560-54014
93568-55014
