ZRE181L-DEXDKV (2016)

Toyota Corolla

Production Jun 2016 - Jan 2019
Engine 1ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

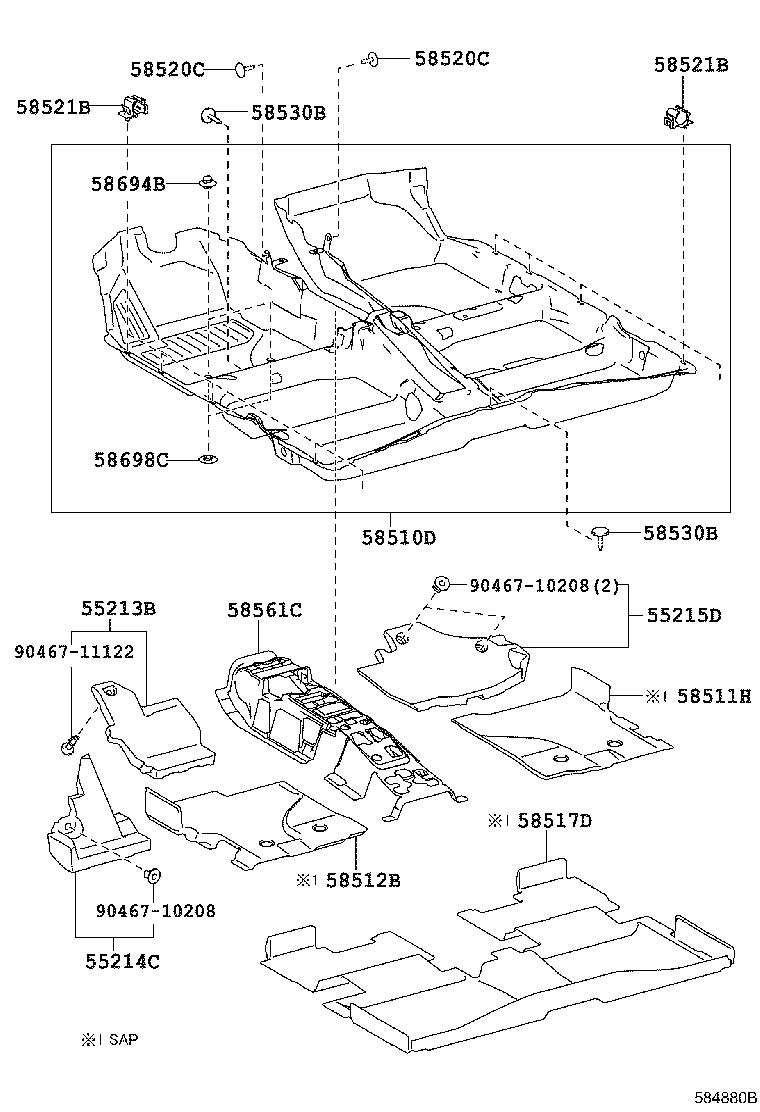

ILLUST NO. 1 OF 2(1306- )LHD

Click highlighted areas on diagram

FLOOR CARPET

diagram 55213B 55214C 55215D 58510D 58511H 58512B 58517D 58520C 58520C 58521B 58521B 58530B 58530B 58561C 58694B 58698C 9046710208 9046710208 9046711122
Part # Description Qty Price
55213B - PAD, DASH PANEL INSULATOR, NO.1
55213-02250

NDE180,ZRE18#..TUP

 1
55214C - PAD, DASH PANEL INSULATOR, NO.2
55214-02010

NDE180,ZRE18#..TUP

 1
55215D - PAD, DASH PANEL INSULATOR, NO.3
55215-02010

NDE180,ZRE18#..TUP

 1
58510D - CARPET ASSY, FLOOR, FRONT
58510-02J80C3

NDE180,ZRE18#..TUP

EU BLACK,TRIM0#,2#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-W0006C2

NDE180,ZRE18#..TUP

EU BLACK

 2
90467-W0006B3

NDE180,NRE180,ZRE18#..TUP

DK.GRAY

 2
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-W0006C2

NDE180,ZRE18#..TUP

EU BLACK

 2
90467-W0006B3

NDE180,NRE180,ZRE18#..TUP

DK.GRAY

 2
58521B - HOOK, FLOOR CARPET
58521-02110

NDE180,ZRE18#..TUP

 10
58521B - HOOK, FLOOR CARPET
58521-02110

NDE180,ZRE18#..TUP

 10
58530B - CLIP(FOR FRONT FLOOR CARPET)
90467-07049B7

NDE180,ZRE18#..TUP

DK.GRAY

 2
58530B - CLIP(FOR FRONT FLOOR CARPET)
90467-07049B7

NDE180,ZRE18#..TUP

DK.GRAY

 2
58561C - SILENCER, FRONT FLOOR, NO.1
58561-02230

NDE180,ZRE18#..TUP

 1
58694B - PLATE, MAT SET, UPPER
58694-76010

NDE180,ZRE18#..TUP

 2
58698C - PLATE, MAT SET, LOWER
58698-76010

NDE180,ZRE18#..TUP

 2
Common parts
90467-10208
90467-11122

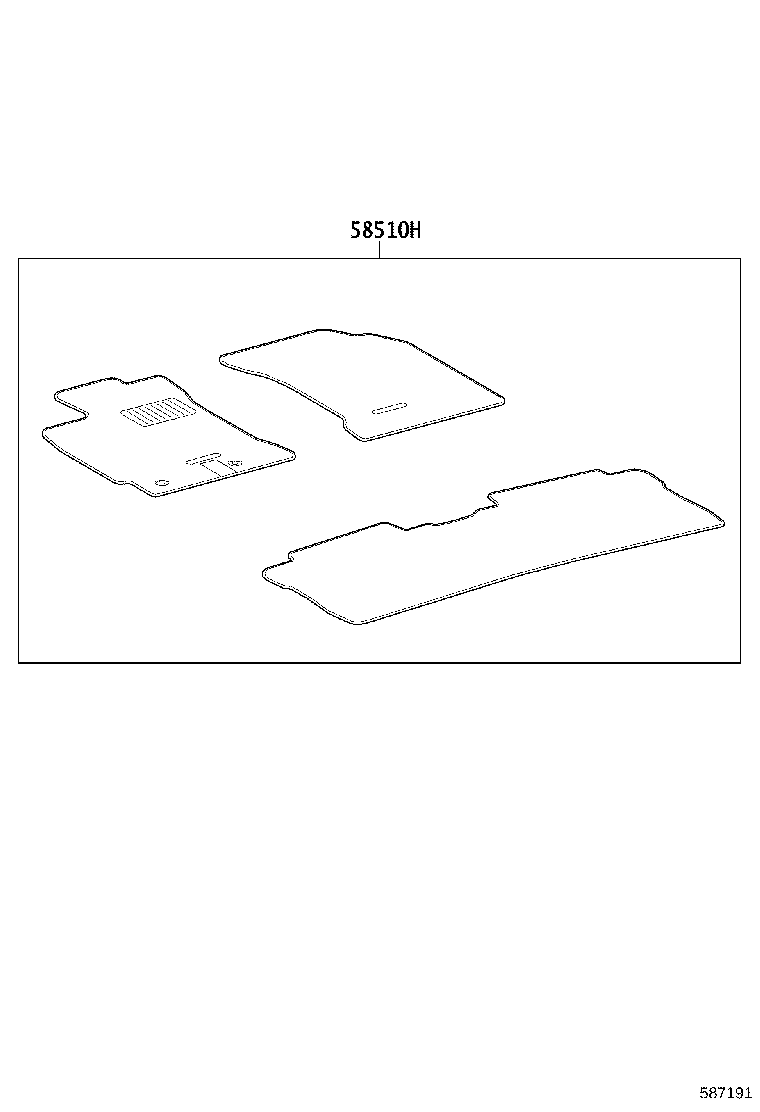

ILLUST NO. 2 OF 2(1806-1901)TUP

Click highlighted areas on diagram

FLOOR MAT

diagram 58510H
Part # Description Qty Price
58510H - MAT ASSY, FLOOR
58510-YYP70

NDE180,ZRE18#..TUP

FLOOR MAT(*417)-RUBBER TYPE

 1
58510-YYP60

NDE180,ZRE18#..TUP

FLOOR MAT(*417)-TEXTILE(LOW GRADE)

 1
58510-YYP50

NDE180,ZRE18#..TUP

FLOOR MAT(*417)-TEXTILE(HIGH GRADE)

 1
