ZRE181L-DEXDKV (2016)
Toyota Corolla

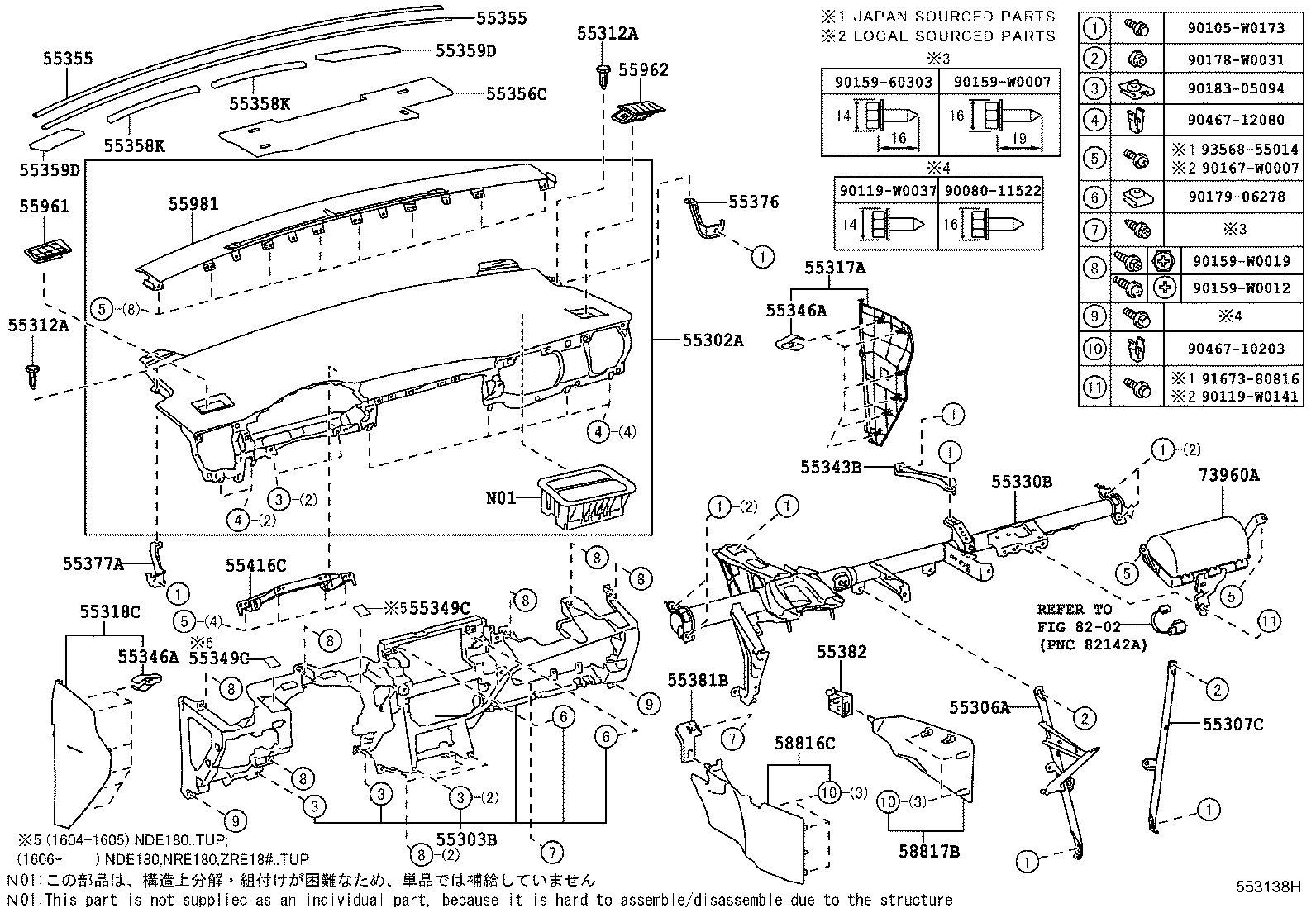

ILLUST NO. 1 OF 2(1306- )TUP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-02903C1 |
NDE180,ZRE18#..TUP EU BLACK,TRIM0#,2# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-02370C1 |
NDE180,NRE180,ZRE18#..TUP EU BLACK,TRIM0#,2# |
1 | ||
| 55303-02370C2 |
NDE180,ZRE18#..TUP BLACK,TRIM0#,2# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-02440 |
NDE180,ZRE18#..TUP |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-02300 |
NDE180,ZRE18#..TUP |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 52161-02030 |
NDE180,ZRE18#..TUP |
2 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 52161-02030 |
NDE180,ZRE18#..TUP |
2 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-02290C1 |
NDE180,NRE180,ZRE18#..TUP EU BLACK,TRIM0#,2# |
1 | ||
| 55317-02290C2 |
NDE180,ZRE18#..TUP BLACK,TRIM0#,2# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-02120C1 |
NDE180,NRE180,ZRE18#..TUP EU BLACK,TRIM0#,2# |
1 | ||
| 55318-02120C2 |
NDE180,ZRE18#..TUP BLACK,TRIM0#,2# |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-02321 |
NDE180,ZRE18#..TUP |
1 | ||
| 55343B - BRACE, INSTRUMENT PANEL TO COWL, CENTER | ||||
| 55343-02060 |
NDE180,ZRE18#..TUP |
1 | ||
| 55346A - CLIP, INSTRUMENT PANEL, NO.2 | ||||
| 90467-13082A0 |
NDE180,ZRE18#..TUP MELLOW WHITE |
12 | ||
| 55346A - CLIP, INSTRUMENT PANEL, NO.2 | ||||
| 90467-13082A0 |
NDE180,ZRE18#..TUP MELLOW WHITE |
12 | ||
| 55349C - CUSHION, INSTRUMENT PANEL | ||||
| 55349-02190 |
NDE180,ZRE18#..TUP |
2 | ||
| 55349C - CUSHION, INSTRUMENT PANEL | ||||
| 55349-02190 |
NDE180,ZRE18#..TUP |
2 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-02560 |
NDE180,ZRE18#..TUP 8 X 12 X 1240 |
1 | ||
| 55355-02570 |
NDE180,ZRE18#..TUP 8 X 8 X 1230 |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-02560 |
NDE180,ZRE18#..TUP 8 X 12 X 1240 |
1 | ||
| 55355-02570 |
NDE180,ZRE18#..TUP 8 X 8 X 1230 |
1 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-02090 |
NDE180,ZRE18#..TUP |
1 | ||
| 55358K - CUSHION, INSTRUMENT PANEL, NO.4 | ||||
| 55358-02150 |
NDE180,ZRE18#..TUP |
2 | ||
| 55358K - CUSHION, INSTRUMENT PANEL, NO.4 | ||||
| 55358-02150 |
NDE180,ZRE18#..TUP |
2 | ||
| 55359D - CUSHION, INSTRUMENT PANEL, NO.5 | ||||
| 55359-02160 |
NDE180,ZRE18#..TUP |
2 | ||
| 55359D - CUSHION, INSTRUMENT PANEL, NO.5 | ||||
| 55359-02160 |
NDE180,ZRE18#..TUP |
2 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-02040 |
NDE180,ZRE18#..TUP |
1 | ||
| 55377A - BRACKET, INSTRUMENT PANEL MOUNTING, NO.2 | ||||
| 55377-02040 |
NDE180,ZRE18#..TUP |
1 | ||
| 55381B - BRACKET, FINISH PANEL MOUNTING, NO.1 | ||||
| 55381-02060 |
NDE180,ZRE18#..TUP |
1 | ||
| 55382 - BRACKET, FINISH PANEL MOUNTING, NO.2 | ||||
| 55382-02040 |
NDE180,ZRE18#..TUP |
1 | ||
| 55416C - RETAINER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55416-02060 |
NDE180,ZRE18#..TUP |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-02110C1 |
NDE180,ZRE18#..TUP EU BLACK,TRIM0#,2# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-02070C1 |
NDE180,ZRE18#..TUP EU BLACK,TRIM0#,2# |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-02310C1 |
NDE180,ZRE18#..TUP EU BLACK,TRIM0#,2# |
1 | ||
| 58816C - INSERT, CONSOLE BOX, FRONT NO.1 | ||||
| 58816-02190C1 |
NDE180,ZRE18#..TUP EU BLACK,TRIM0#,2# |
1 | ||
| 58817B - INSERT, CONSOLE BOX, FRONT NO.2 | ||||
| 58817-02190C1 |
NDE180,ZRE18#..TUP EU BLACK,TRIM0#,2# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-02130 |
NDE180,NRE180,ZRE18#..TUP |
1 | ||
| 73960-02131 |
NDE180,NRE180,ZRE18#..TUP |
1 | ||
| Common parts | ||||
| 90080-11522 | ||||
| 90105-W0173 | ||||
| 90119-W0037 | ||||
| 90119-W0141 | ||||
| 90159-60303 | ||||
| 90159-W0007 | ||||
| 90159-W0012 | ||||
| 90159-W0019 | ||||
| 90167-W0007 | ||||
| 90178-W0031 | ||||
| 90179-06278 | ||||
| 90183-05094 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 91673-80816 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8202 | ||||

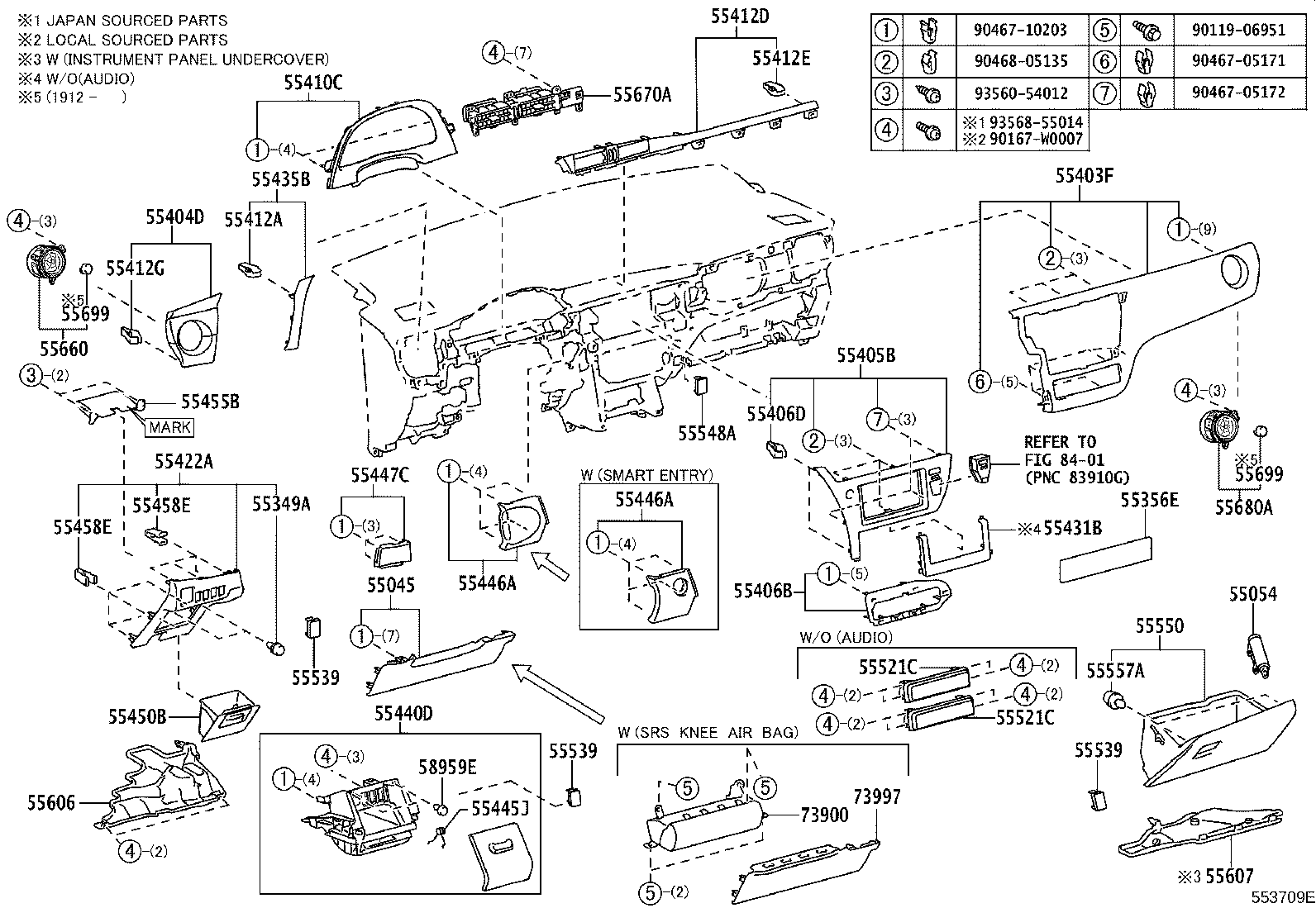

ILLUST NO. 2 OF 2(1606- )TUP ; (1701- )GEN..SAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-02320C1 |
NDE180,ZRE18#..TUP EU BLACK,TRIM0#,2# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-47010 |
NDE180,ZRE18#..TUP |
1 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 58959-60060 |
NDE180,ZRE18#..TUP |
2 | ||
| 55356E - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-02450 |
NDE180,ZRE18#..TUP |
1 | ||
| 55403F - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH | ||||
| 55403-02300A0 |
NDE180,ZRE18#..TUP FLAXEN/EU BLACK,TRIM0# |
1 | ||
| 55403-02300C0 |
NDE180,ZRE18#..TUP EU BLACK/EU BLACK,TRIM2# |
1 | ||
| 55404D - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-02520C0 |
NDE180,ZRE18#..TUP EU BLACK/EU BLACK,TRIM2# |
1 | ||
| 55404-02520A0 |
NDE180,ZRE18#..TUP FLAXEN/EU BLACK,TRIM0# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55406-02640 |
NDE180,ZRE18#..TUP |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-02330 |
NDE180,ZRE18#..TUP |
1 | ||
| 55406D - CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH) | ||||
| 90467-13082A0 |
NDE180,ZRE18#..TUP MELLOW WHITE |
2 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-02160 |
NDE180,ZRE18#..TUP |
1 | ||
| 55412A - CLIP, PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 90467-13082A0 |
NDE180,ZRE18#..TUP MELLOW WHITE |
3 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-02470 |
NDE180,ZRE18#..TUP |
1 | ||
| 55412E - CLIP, PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 90467-13082A0 |
NDE180,ZRE18#..TUP MELLOW WHITE |
7 | ||
| 55412G - CLIP(FOR INSTRUMENT CENTER CLUSTER FINISH PANEL) | ||||
| 90467-13082A0 |
NDE180,ZRE18#..TUP MELLOW WHITE |
4 | ||
| 55422A - PANEL, INSTRUMENT CLUSTER FINISH, LOWER | ||||
| 55422-02290C1 |
NDE180,NRE180,ZRE18#..TUP EU BLACK,TRIM0#,2# |
1 | ||
| 55422-02290C2 |
NDE180,ZRE18#..TUP BLACK,TRIM0#,2# |
1 | ||
| 55431B - PANEL, INSTRUMENT PANEL FINISH, UPPER | ||||
| 55431-02070 |
NDE180,ZRE18#..D..TUP AUDIO(OVERSEAS MARKET)-RADIOLESS 4SPEAKER |
1 | ||
| 55435B - CLUSTER, METER HOOD, NO.1 | ||||
| 55435-02450 |
NDE180,ZRE18#..TUP |
1 | ||
| 55440D - BOX ASSY, INSTRUMENT PANEL | ||||
| 55440-02440C0 |
NDE180,ZRE18#..TUP EU BLACK,TRIM0#,2# |
1 | ||
| 55445J - SPRING, INSTRUMENT PANEL BOX | ||||
| 55445-02330 |
NDE180,ZRE18#..TUP |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-02380C1 |
NDE180,NRE180,ZRE18#..TUP EU BLACK,TRIM0#,2# |
1 | ||
| 55446-02380C2 |
NDE180,ZRE18#..TUP BLACK,TRIM0#,2# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-02380C1 |
NDE180,NRE180,ZRE18#..TUP EU BLACK,TRIM0#,2# |
1 | ||
| 55446-02380C2 |
NDE180,ZRE18#..TUP BLACK,TRIM0#,2# |
1 | ||
| 55447C - BASE, SWITCH HOLE, NO.2 | ||||
| 55447-02210C1 |
NDE180,NRE180,ZRE18#..TUP EU BLACK,TRIM0#,2# |
1 | ||
| 55447-02210C2 |
NDE180,ZRE18#..TUP BLACK,TRIM0#,2# |
1 | ||
| 55450B - BOX ASSY, COIN | ||||
| 55450-02131C1 |
NDE180,NRE180,ZRE18#..TUP EU BLACK,TRIM0#,2# |
1 | ||
| 55450-02131C2 |
NDE180,ZRE18#..TUP BLACK,TRIM0#,2# |
1 | ||
| 55455B - COIN BOX | ||||
| 55455-02160 |
NDE180,NRE180,ZRE18#..TUP MARK=55455-02160 |
1 | ||
| 55455-02161 |
NDE180,ZRE18#..TUP MARK=55455-02161 |
1 | ||
| 55458E - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-10203 |
NDE180,ZRE18#..TUP |
8 | ||
| 55458E - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-10203 |
NDE180,ZRE18#..TUP |
8 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-05030 |
NDE180,ZRE18#..D..TUP AUDIO(OVERSEAS MARKET)-RADIOLESS 4SPEAKER |
2 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-05030 |
NDE180,ZRE18#..D..TUP AUDIO(OVERSEAS MARKET)-RADIOLESS 4SPEAKER |
2 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-02100C1 |
NDE180,NRE180,ZRE18#..TUP EU BLACK,TRIM0#,2# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-02100C1 |
NDE180,NRE180,ZRE18#..TUP EU BLACK,TRIM0#,2# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-02100C1 |
NDE180,NRE180,ZRE18#..TUP EU BLACK,TRIM0#,2# |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-02640C1 |
NDE180,ZRE18#..TUP EU BLACK,TRIM0#,2# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-02361C1 |
NDE180,NRE180,ZRE18#..TUP EU BLACK,TRIM0#,2# |
1 | ||
| 55550-02361C2 |
NDE180,ZRE18#..TUP BLACK,TRIM0#,2# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-60050 |
NDE180,ZRE18#..TUP |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-02160 |
NDE180,ZRE18#..TUP |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55680-12330C0 |
ZRE181..CVT..N..GEN..SAP;NDE180,NRE180,ZRE18#..D..TUP BLACK,TRIM0#,2# |
1 | ||
| 55680-12330C1 |
NDE180,ZRE18#..D..TUP BLACK,TRIM0#,2# |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-02580C0 |
NDE180,ZRE18#..D..TUP EU BLACK,TRIM0#,2# |
1 | ||
| 55670-02580 |
NDE180,NRE180,ZRE18#..D..TUP |
1 | ||
| 55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4 | ||||
| 55680-12320C0 |
ZRE181..CVT..N..GEN..SAP;NDE180,NRE180,ZRE18#..D..TUP BLACK,TRIM0#,2# |
1 | ||
| 55680-12320C1 |
NDE180,ZRE18#..D..TUP BLACK,TRIM0#,2# |
1 | ||
| 58959E - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
NDE180,ZRE18#..TUP |
2 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90167-W0007 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90467-10203 | ||||
| 90468-05135 | ||||
| 93560-54012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
