ZRE181L-DEXDKV (2016)

Toyota Corolla

Production Jun 2016 - Jan 2019
Engine 1ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1306- )LHD

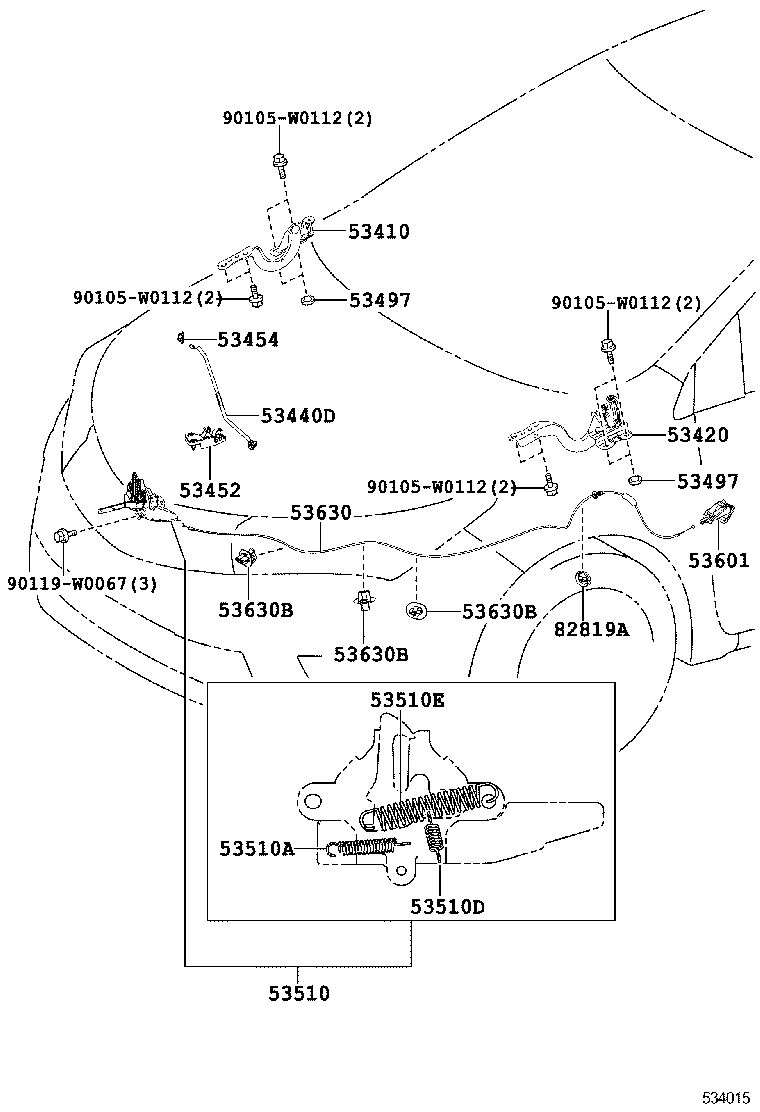

Click highlighted areas on diagram

diagram 53410 53420 53440D 53452 53454 53497 53497 53510 53510A 53510D 53510E 53601 53630 53630B 53630B 53630B 82819A 90105W0112 90105W0112 90105W0112 90105W0112 90119W0067
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-02330

NDE180,ZRE18#..TUP

 1
53420 - HINGE ASSY, HOOD, LH
53420-02320

NDE180,ZRE18#..TUP

 1
53440D - SUPPORT ASSY, HOOD
53440-02200

NDE180,ZRE18#..TUP

 1
53452 - HOLDER, HOOD STAY
53452-02160

NDE180,ZRE18#..TUP

 1
53454 - CLIP, HOOD SUPPORT ROD
53454-12030

NDE180,ZRE18#..TUP

 1
53497 - PAD, HOOD HINGE, NO.1
53497-05010

NDE180,ZRE18#..TUP

T=1.0

 2
53497 - PAD, HOOD HINGE, NO.1
53497-05010

NDE180,ZRE18#..TUP

T=1.0

 2
53510 - LOCK ASSY, HOOD
53510-02560

NDE180,ZRE18#..TUP

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90080-50398

NDE180,ZRE18#..TUP

WD=0.9,CW=20.75

 1
53510D - SPRING, TENSION(FOR HOOD LOCK)
90506-W0004

NDE180,ZRE18#..TUP

WD=1.0,CW=15.5

 1
53510E - SPRING, TENSION(FOR HOOD LOCK)
90506-W0007

NDE180,ZRE18#..TUP

WD=1.8,CW=13

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-05030C1

ZRE181..6F..TUP;ZRE181..LHD..CVT..N;ZRE181..CVT..D..TUP;NDE180,NRE180,ZRE182..TUP

EU BLACK,TRIM0#,2#

 1
53601-05030C1

NDE180,NRE180,ZRE18#..TUP

EU BLACK,TRIM01,21

 1
53601-05030C2

NDE180,ZRE18#..TUP

BLACK,TRIM0#,2#

 1
53601-05030C2

NDE180,NRE180,ZRE18#..TUP

BLACK,TRIM01,21

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-02410

NDE180,ZRE18#..TUP

 1
53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE)
90469-06005

NDE180,ZRE18#..TUP

 3
53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE)
90469-06005

NDE180,ZRE18#..TUP

 3
53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE)
90469-06005

NDE180,ZRE18#..TUP

 3
82819A - GROMMET, WIRE
82817-1A810

NDE180,ZRE18#..TUP

 1
Common parts
90105-W0112
90119-W0067
