ZRE181L-DEXDKV (2016)
Toyota Corolla
Production
Jun 2016
-
Jan 2019
Engine
1ZRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1606- )TUP ; (1701- )SAP

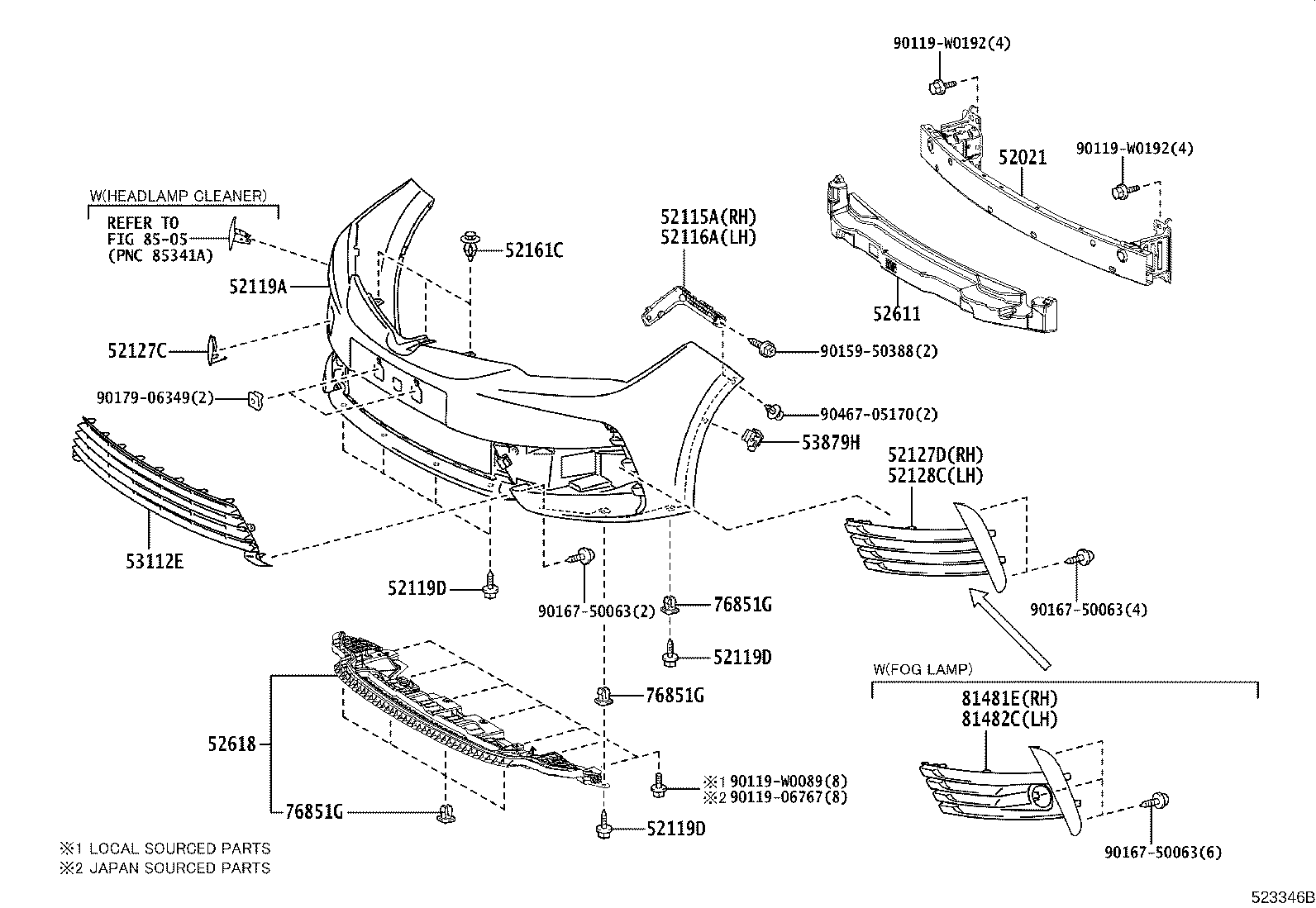

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-02310 |
NDE180,ZRE18#..TUP |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-02360 |
NDE180,ZRE18#..TUP |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-02350 |
NDE180,ZRE18#..TUP |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-0Z971 |
NDE180..TUP;ZRE18#..N..TUP;ZRE18#..D..GCC PAINT REQ.,HEADLAMP CLEANER-WITH |
1 | ||
| 52119-0Z970 |
NDE180,ZRE18#..TUP PAINT REQ. |
1 | ||
| 52127C - COVER, FRONT BUMPER HOLE | ||||
| 52127-02930 |
NDE180,ZRE18#..TUP |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 81481-02610 |
NDE180,ZRE18#..D..TUP |
1 | ||
| 52128C - COVER, FRONT BUMPER HOLE, LH | ||||
| 81482-02600 |
NDE180,ZRE18#..D..TUP |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-02030 |
NDE180,ZRE18#..TUP |
3 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-02390 |
NDE180,ZRE18#..TUP |
1 | ||
| 52618 - ABSORBER, FRONT BUMPER, LOWER | ||||
| 52618-02071 |
NDE180,ZRE18#..TUP |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-02690 |
NDE180,ZRE18#..TUP NO PAINT REQ. |
1 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-50020 |
NDE180,ZRE18#..TUP |
2 | ||
| Common parts | ||||
| 90119-06767 | ||||
| 90119-W0089 | ||||
| 90119-W0192 | ||||
| 90159-50388 | ||||
| 90167-50063 | ||||
| 90179-06349 | ||||
| 90467-05170 | ||||
| Linked diagrams | ||||
| 8505 | ||||
