ZRE181L-DEXDKV (2016)
Toyota Corolla
(1306- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

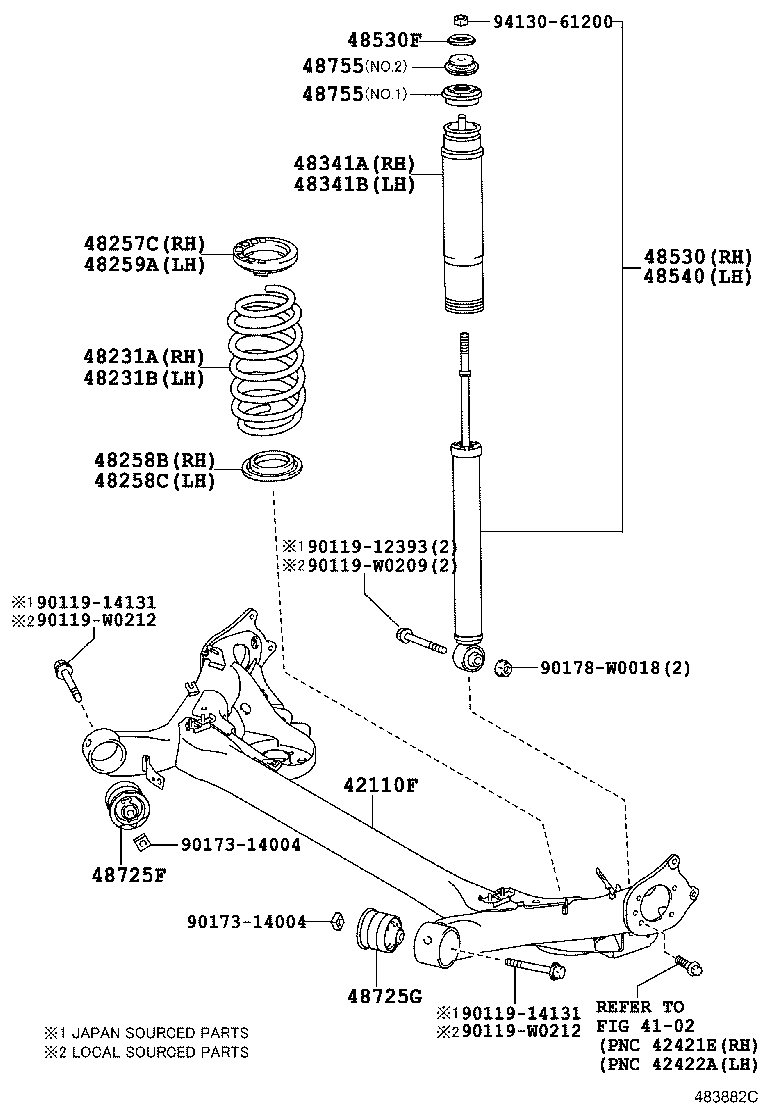

| 42110F - BEAM ASSY, REAR AXLE | ||||
| 42101-02270 |
NDE180,ZRE18#..TUP |
1 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-02J51 |
NDE180,ZRE18#..TUP |
1 | ||
| 48231-02J60 |
NDE180,NRE180,ZRE18#..TUP ROUGH ROAD AREA SPEC |
1 | ||
| 48231-02J61 |
NDE180,ZRE18#..TUP ROUGH ROAD AREA SPEC |
1 | ||
| 48231-02J50 |
NDE180,NRE180,ZRE18#..TUP |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-02J51 |
NDE180,ZRE18#..TUP |
1 | ||
| 48231-02J60 |
NDE180,NRE180,ZRE18#..TUP ROUGH ROAD AREA SPEC |
1 | ||
| 48231-02J61 |
NDE180,ZRE18#..TUP ROUGH ROAD AREA SPEC |
1 | ||
| 48231-02J50 |
NDE180,NRE180,ZRE18#..TUP |
1 | ||
| 48257C - INSULATOR, REAR COIL SPRING, UPPER RH | ||||
| 48257-0D010 |
NDE180,ZRE18#..TUP |
1 | ||
| 48258B - INSULATOR, REAR COIL SPRING, LOWER RH | ||||
| 48258-0D050 |
NDE180,ZRE18#..TUP |
1 | ||
| 48258C - INSULATOR, REAR COIL SPRING, LOWER LH | ||||
| 48258-0D050 |
NDE180,ZRE18#..TUP |
1 | ||
| 48259A - INSULATOR, REAR COIL SPRING, UPPER LH | ||||
| 48257-0D010 |
NDE180,ZRE18#..TUP |
1 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-02080 |
NDE180,ZRE18#..TUP |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-02080 |
NDE180,ZRE18#..TUP |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-8Z045 |
NDE180,ZRE18#..TUP MARK 48530-02F80,ROUGH ROAD AREA SPEC |
1 | ||
| 48530-8Z044 |
NDE180,ZRE18#..TUP MARK 48530-02F70 |
1 | ||
| 48530F - RETAINER, SHOCK ABSORBER CUSHION(FOR REAR) | ||||
| 90948-02159 |
NDE180,ZRE18#..TUP |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48530-8Z044 |
NDE180,ZRE18#..TUP MARK 48530-02F70 |
1 | ||
| 48530-8Z045 |
NDE180,ZRE18#..TUP MARK 48530-02F80,ROUGH ROAD AREA SPEC |
1 | ||
| 48725F - BUSH, REAR AXLE CARRIER, RH | ||||
| 48725-02200 |
NDE180,ZRE18#..TUP |
1 | ||
| 48725G - BUSH, REAR AXLE CARRIER, LH | ||||
| 48725-02200 |
NDE180,ZRE18#..TUP |
1 | ||
| 48755 - SUPPORT, REAR SUSPENSION | ||||
| 48755-02090 |
NDE180,ZRE18#..TUP NO.2 |
2 | ||
| 48755-02080 |
NDE180,ZRE18#..TUP NO.1 |
2 | ||
| 48755 - SUPPORT, REAR SUSPENSION | ||||
| 48755-02090 |
NDE180,ZRE18#..TUP NO.2 |
2 | ||
| 48755-02080 |
NDE180,ZRE18#..TUP NO.1 |
2 | ||
| Common parts | ||||
| 90119-12393 | ||||
| 90119-14131 | ||||
| 90119-W0209 | ||||
| 90119-W0212 | ||||
| 90173-14004 | ||||
| 90178-W0018 | ||||
| 94130-61200 | ||||
| Linked diagrams | ||||
| 4102 | ||||
