ZRE181L-DEXDKV (2016)

Toyota Corolla

Production Jun 2016 - Jan 2019
Engine 1ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1306- )LHD

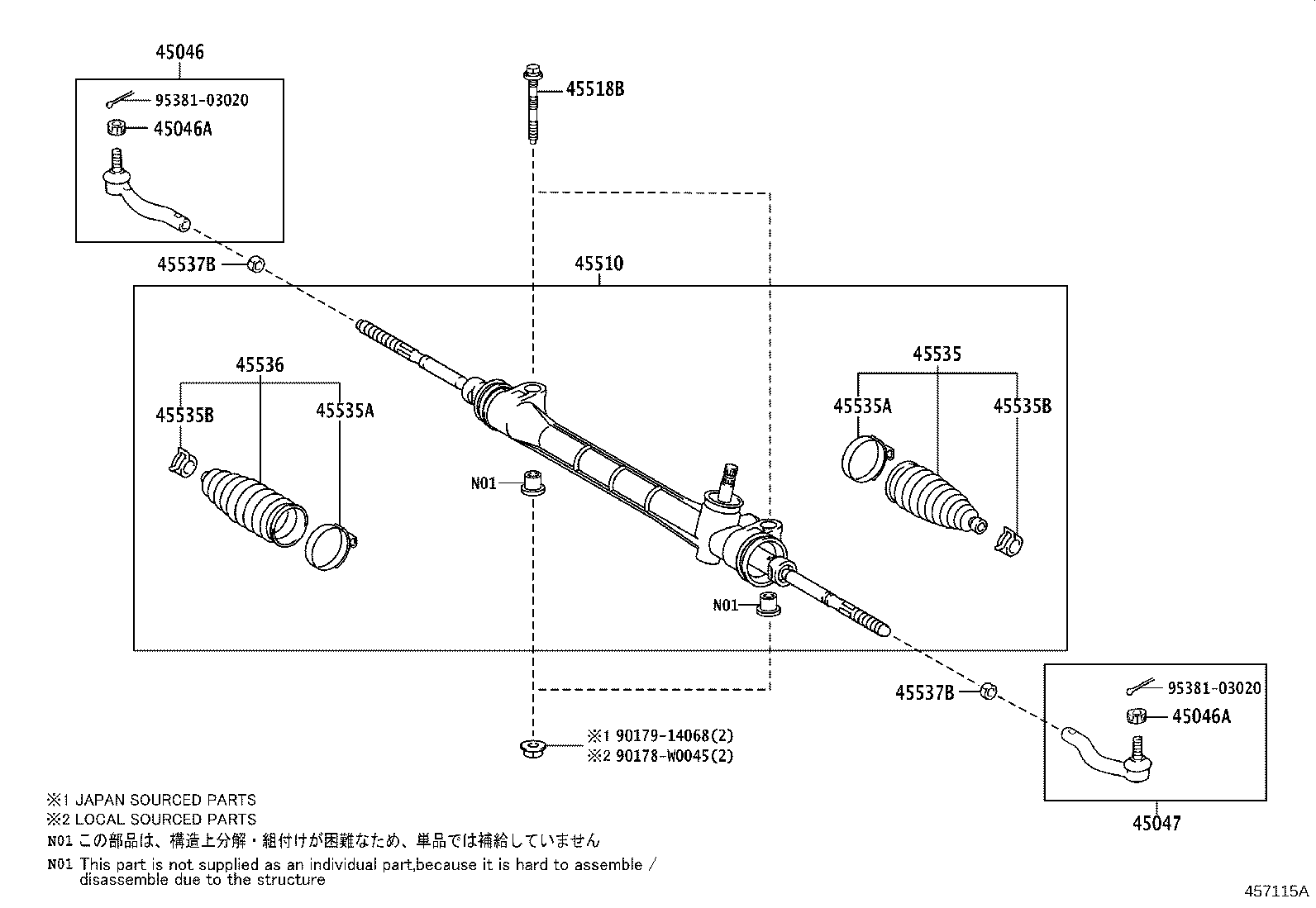

Click highlighted areas on diagram

diagram 45046 45046A 45046A 45047 45510 45518B 45535 45535A 45535A 45535B 45535B 45536 45537B 45537B 90178W0045 9017914068 9538103020 9538103020
Part # Description Qty Price
45046 - END SUB-ASSY, TIE ROD, RH
45046-09570

NDE180,ZRE18#..TUP

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

NDE180,ZRE18#..TUP

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

NDE180,ZRE18#..TUP

 2
45047 - END SUB-ASSY, TIE ROD, LH
45047-09270

NDE180,ZRE18#..TUP

 1
45510 - GEAR ASSY, STEERING
45510-02710

NDE180,ZRE18#..TUP

 1
45518B - BOLT, STEERING RACK HOUSING
90119-14156

NDE180,ZRE18#..TUP

 2
45535 - BOOT, STEERING RACK, NO.1
45535-09440

NDE180,ZRE18#..TUP

 1
45535A - CLAMP(FOR STEERING RACK BOOT)
45538-05010

NDE180,ZRE18#..TUP

 1
45535A - CLAMP(FOR STEERING RACK BOOT)
45538-05010

NDE180,ZRE18#..TUP

 1
45535B - CLIP(FOR STEERING RACK BOOT)
45537-02010

NDE180,ZRE18#..TUP

 1
45535B - CLIP(FOR STEERING RACK BOOT)
45537-02010

NDE180,ZRE18#..TUP

 1
45536 - BOOT, STEERING RACK, NO.2
45535-09440

NDE180,ZRE18#..TUP

 1
45537B - NUT, RACK END LOCK
90179-15006

NDE180,ZRE18#..TUP

 2
45537B - NUT, RACK END LOCK
90179-15006

NDE180,ZRE18#..TUP

 2
Common parts
90178-W0045
90179-14068
95381-03020
