ZRE181L-DEXDKV (2016)

Toyota Corolla

Production Jun 2016 - Jan 2019
Engine 1ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1606- )1ZRFE,2ZRFE..TUP

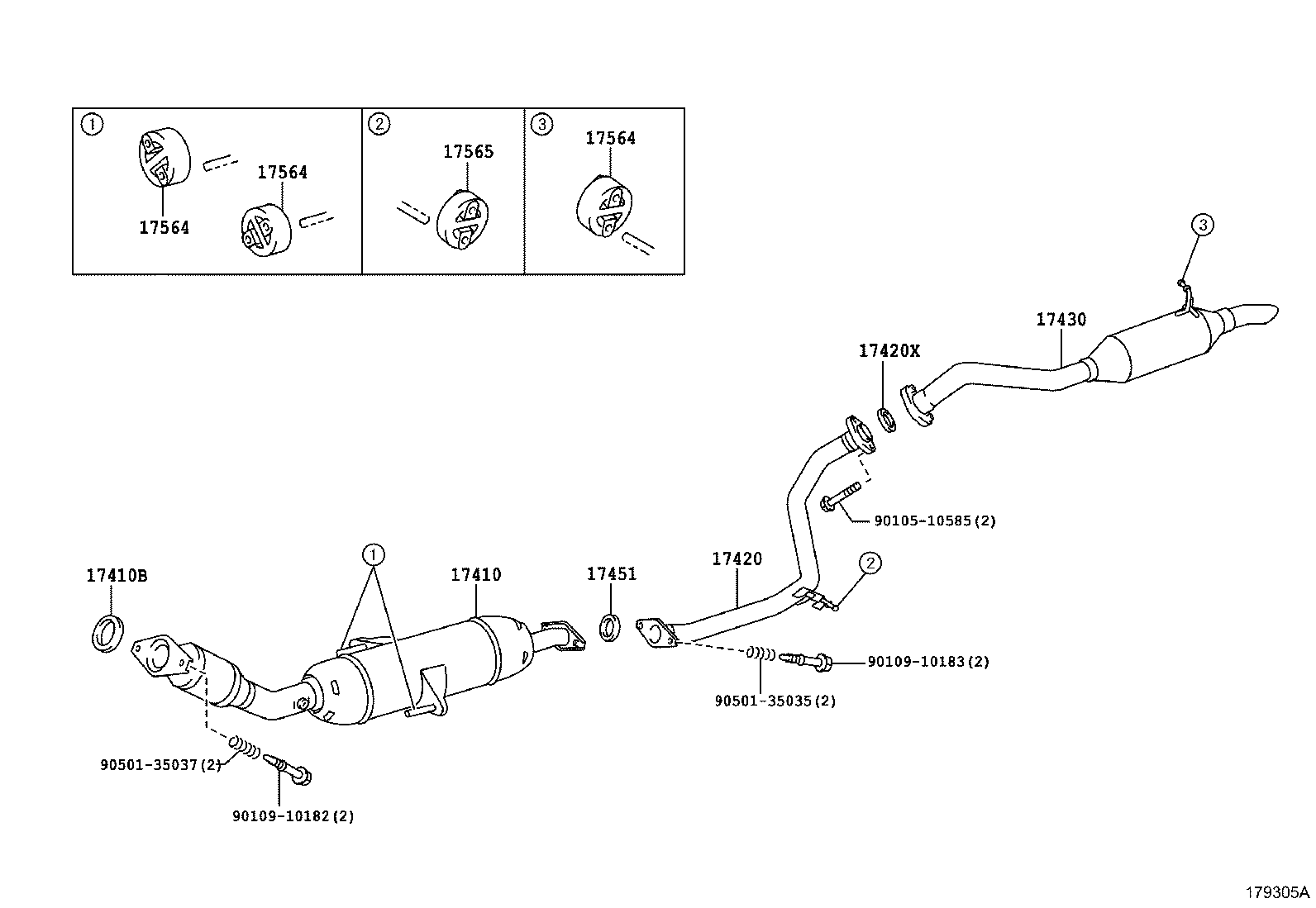

Click highlighted areas on diagram

diagram 17410 17410B 17420 17420X 17430 17451 17564 17564 17564 17565 9010510585 9010910182 9010910183 9050135035 9050135037
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-0T570

1ZRFE,2ZRFE..ZRE18#..TUP

*114=TOYOTA/RD2RD1/Y

 1
17410B - GASKET, EXHAUST PIPE
17451-0R010

1NDTV,1ZRFE,2ZRFE..NDE180,ZRE18#..TUP

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-0T030

1ZRFE,2ZRFE..ZRE18#..TUP

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06089

1NDTV,1ZRFE,2ZRFE..NDE180,ZRE18#..TUP

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-0T270

1ZRFE,2ZRFE..ZRE18#..TUP

 1
17451 - GASKET, EXHAUST PIPE
17451-0D112

1NDTV,1ZRFE,2ZRFE..NDE180,ZRE18#..TUP

 1
17564 - SUPPORT,EXHAUST PIPE, NO.4
17565-0J031

1NDTV,1ZRFE,2ZRFE..NDE180,ZRE18#..TUP

 3
17564 - SUPPORT,EXHAUST PIPE, NO.4
17565-0J031

1NDTV,1ZRFE,2ZRFE..NDE180,ZRE18#..TUP

 3
17564 - SUPPORT,EXHAUST PIPE, NO.4
17565-0J031

1NDTV,1ZRFE,2ZRFE..NDE180,ZRE18#..TUP

 3
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-0D100

1NDTV,1ZRFE,2ZRFE..NDE180,ZRE18#..TUP

 1
Common parts
90105-10585
90109-10182
90109-10183
90501-35035
90501-35037
