ZRE172L-DEXSK (2014)

Toyota Corolla

Production Apr 2014 - Aug 2016
Engine 2ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

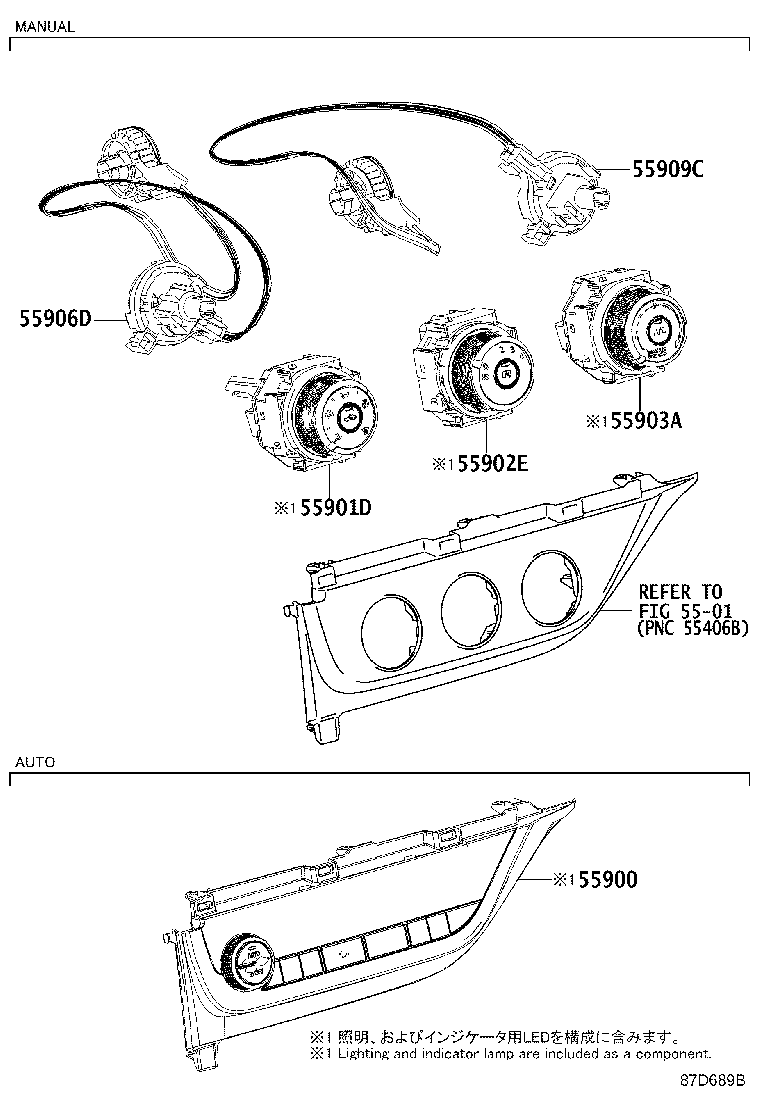

ILLUST NO. 1 OF 3(1308-1608)GEN ; (1308-1608)4FC,6F..MXC ; (1408-1608)CVT..MXC

Click highlighted areas on diagram

HEATER CONTROL PANEL

diagram 5501 55900 55901D 55902E 55903A 55906D 55909C
Part # Description Qty Price
55900 - CONTROL ASSY, AIR CONDITIONER
55900-02500

ZRE172..S..GEN

 1
Linked diagrams
5501

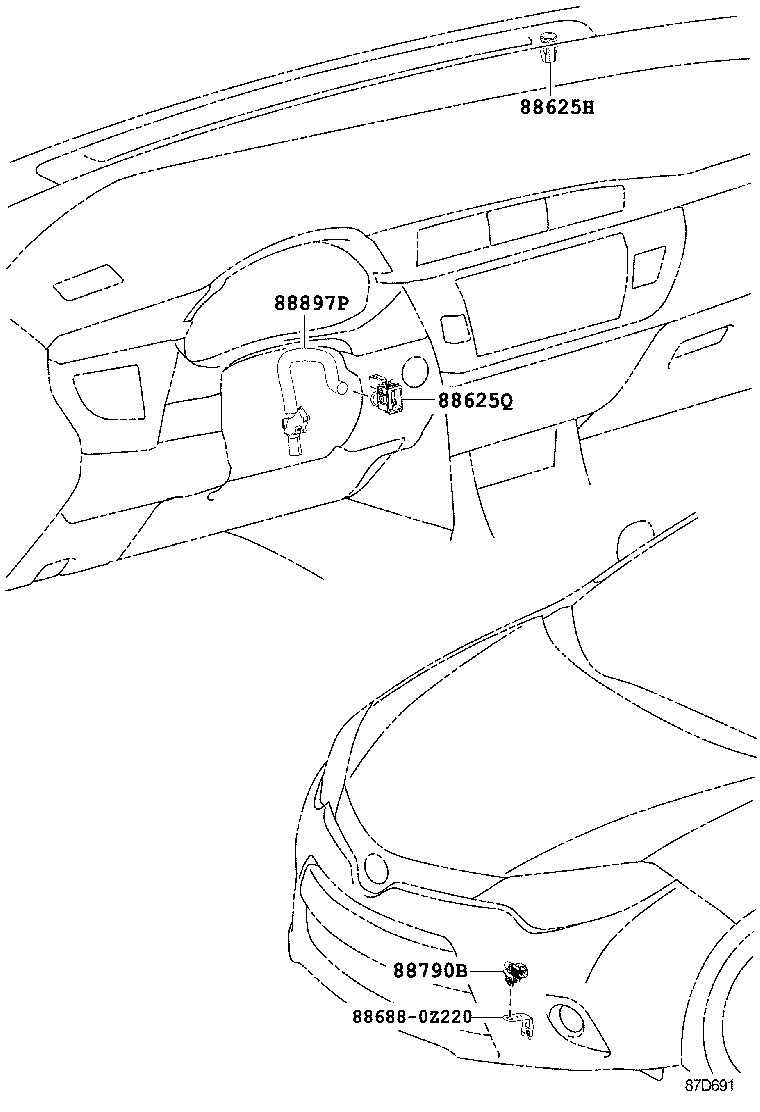

ILLUST NO. 3 OF 3(1308- )

Click highlighted areas on diagram

SENSOR

diagram 88625H 88625Q 886880Z220 88790B 88897P
Part # Description Qty Price
88625H - THERMISTOR, COOLER (SOLAR SENSOR)
88625-47031

ZRE172..S..GEN

 1
88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR)
88625-47021

ZRE172..S..GEN

 1
88790B - THERMISTOR ASSY
88790-06010

ZRE172..CVT,MTM

 1
88897P - ASPIRATOR
88505-02070

ZRE172..S..GEN

 1
Common parts
88688-0Z220

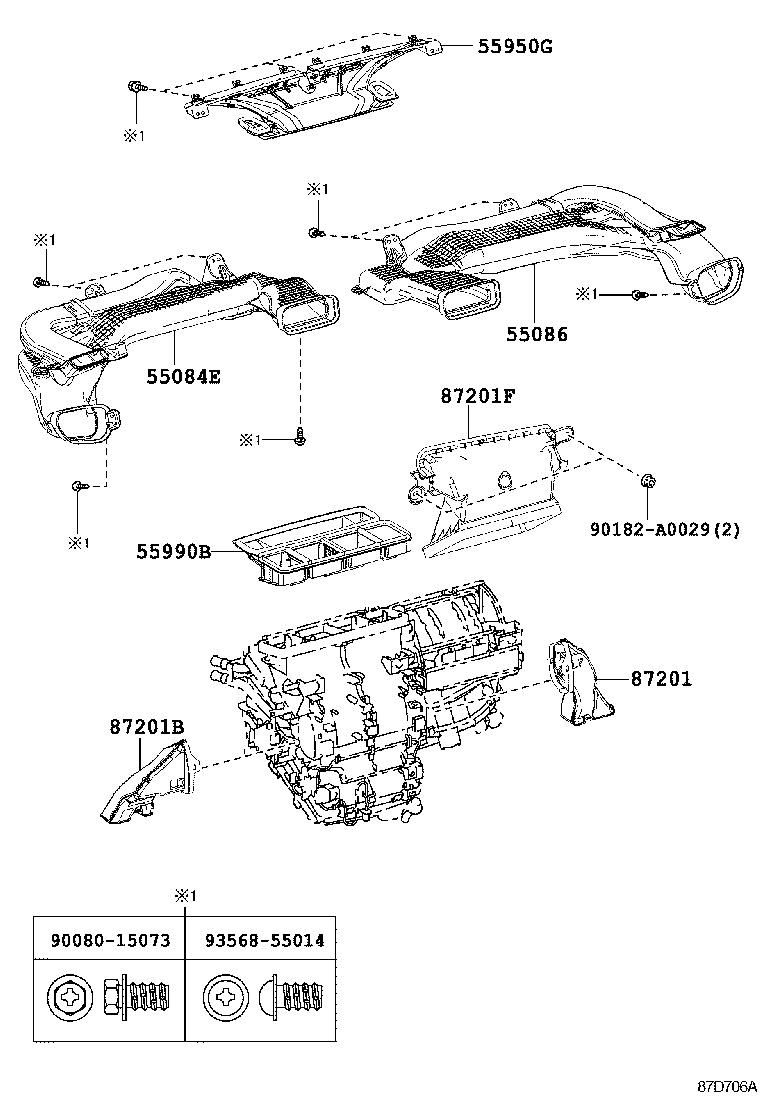

ILLUST NO. 2 OF 3(1308-1608)GEN ; (1308-1608)4FC,6F..MXC ; (1408-1608)CVT..MXC

Click highlighted areas on diagram

AIR DUCT

diagram 55084E 55086 55950G 55990B 87201 87201B 87201F 9008015073 90182A0029 9356855014
Part # Description Qty Price
55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1
55084-02200

ZRE172..CVT,MTM

*348

 1
55084-02190

ZRE172..CVT,MTM

*213

 1
55086 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.3
55086-02220

ZRE172..CVT,MTM

*348

 1
55086-02210

ZRE172..CVT,MTM

*213

 1
55950G - NOZZLE ASSY, DEFROSTER
55950-02290

ZRE172..CVT,MTM

 1
55990B - NOZZLE ASSY, DEFROSTER, LOWER
55990-02170

ZRE172..CVT,MTM

 1
87201 - DUCT SUB-ASSY, AIR, NO.1
87211-02330

ZRE172..CVT,MTM

 1
87201B - DUCT SUB-ASSY, AIR, NO.2
87211-02321

ZRE172..CVT,MTM

 1
87201F - DUCT SUB-ASSY, AIR, NO.3
87220-02200

ZRE172..CVT,MTM

 1
Common parts
90080-15073
90182-A0029
93568-55014
