ZRE172L-DEXSK (2014)
Toyota Corolla
Production
Apr 2014
-
Aug 2016
Engine
2ZRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1308- )

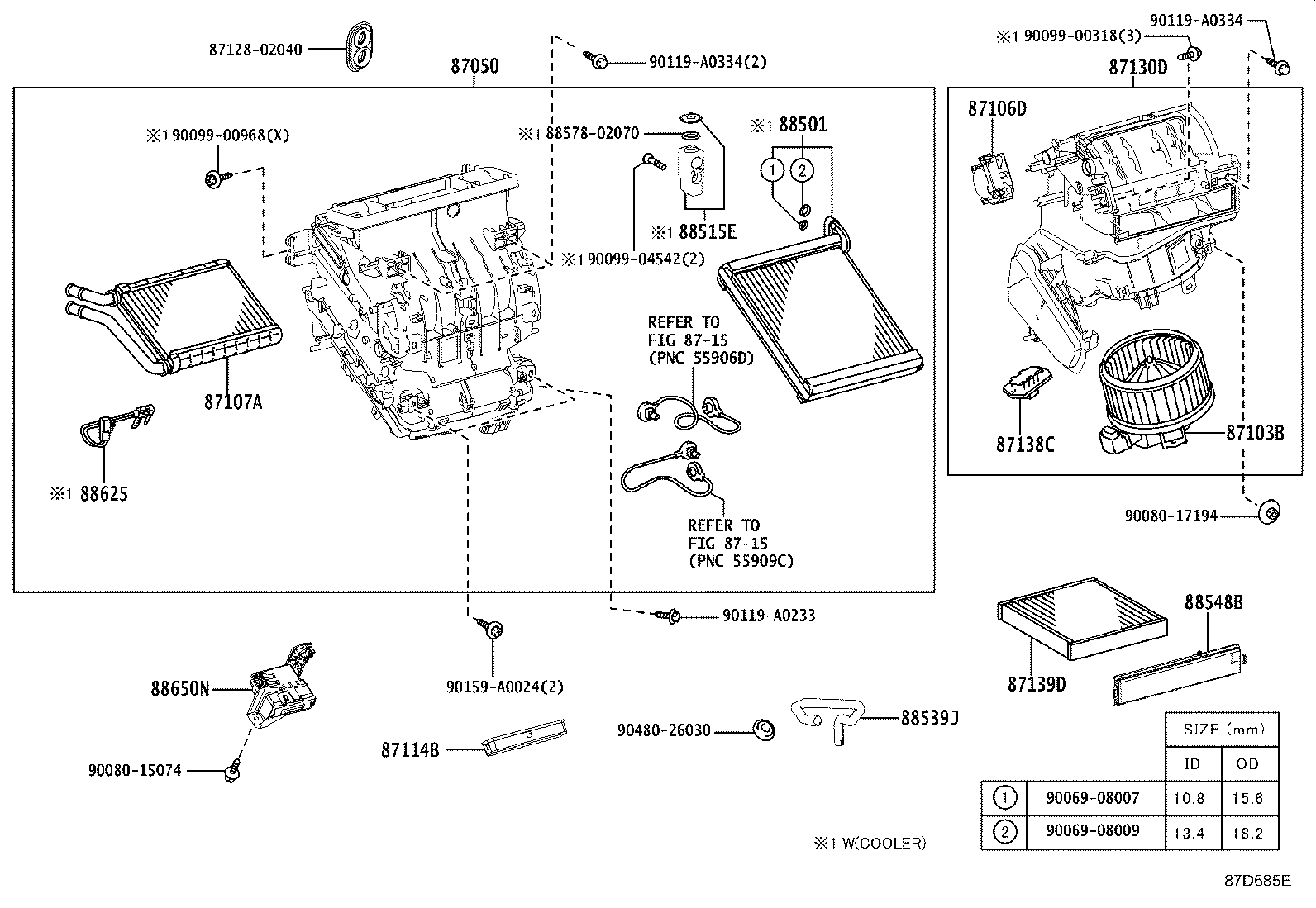

Click highlighted areas on diagram
MANUAL AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-02B80 |
ZRE172..S..GEN |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-02210 |
ZRE172..S..GEN |
1 | ||
| 87106D - SERVO SUB-ASSY, DAMPER, NO.1 | ||||
| 87106-02220 |
ZRE172..S..GEN |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-02230 |
ZRE172..CVT,MTM |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-02030 |
ZRE172..CVT,MTM |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-02A20 |
ZRE172..S..GEN |
1 | ||
| 87139D - ELEMENT, AIR REFINER | ||||
| 87139-50100 |
ZRE172..CVT,MTM *DPF |
1 | ||
| 87139-07020 |
ZRE172..CVT,MTM POLLEN FILTER |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-02222 |
ZRE172..CVT,MTM |
1 | ||
| 88515E - VALVE, COOLER EXPANSION, W/PACKING | ||||
| 88515-02420 |
ZRE172..CVT,MTM |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-02270 |
ZRE172..CVT,MTM |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-02110 |
ZRE172..CVT,MTM |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-02120 |
ZRE172..CVT,MTM |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-02B31 |
ZRE172..S..GEN |
1 | ||
| 88650-02B30 |
ZRE172..S..GEN |
1 | ||
| Common parts | ||||
| 87128-02040 | ||||
| 88578-02070 | ||||
| 90069-08007 | ||||
| 90069-08009 | ||||
| 90080-15074 | ||||
| 90080-17194 | ||||
| 90099-00318 | ||||
| 90099-00968 | ||||
| 90099-04542 | ||||
| 90119-A0233 | ||||
| 90119-A0334 | ||||
| 90159-A0024 | ||||
| 90480-26030 | ||||
| Linked diagrams | ||||
| 8715 | ||||
