ZRE172L-DEXSK (2014)

Toyota Corolla

Production Apr 2014 - Aug 2016
Engine 2ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1308- )

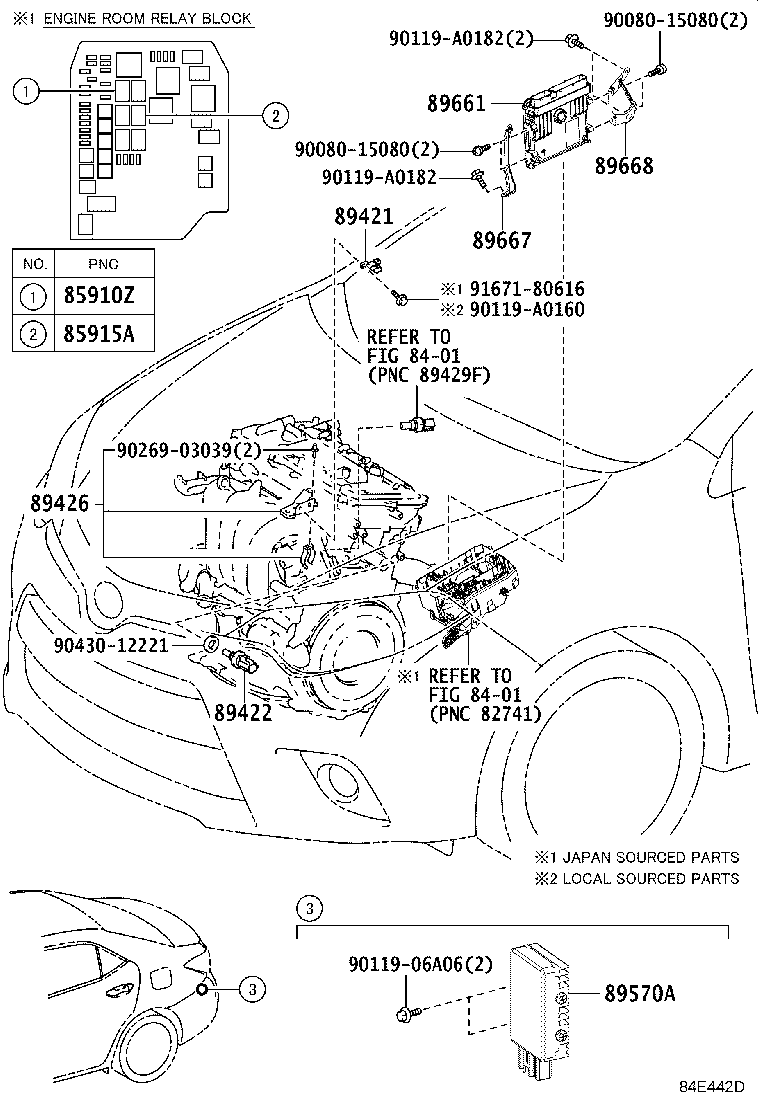

Click highlighted areas on diagram

diagram 8401 8401 85910Z 85915A 89421 89422 89426 89570A 89661 89667 89668 9008015080 9008015080 9011906A06 90119A0160 90119A0182 90119A0182 9026903039 9043012221 9167180616
Part # Description Qty Price
85915A - RELAY, MAIN
90080-87026

ZRE172..CVT,MTM

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030

ZRE172..CVT,MTM

 1
89661 - COMPUTER, ENGINE CONTROL
89661-0ZE11

ZRE172..CVT..S..GEN

 1
89661-0ZE10

ZRE172..CVT..S

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-02320

ZRE172..CVT,MTM

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-02300

ZRE172..CVT,MTM

 1
Common parts
90080-15080
90119-06A06
90119-A0160
90119-A0182
90269-03039
90430-12221
91671-80616
Linked diagrams
8401
