ZRE172L-DEXSK (2014)

Toyota Corolla

Production Apr 2014 - Aug 2016
Engine 2ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1308-1608)LE,S

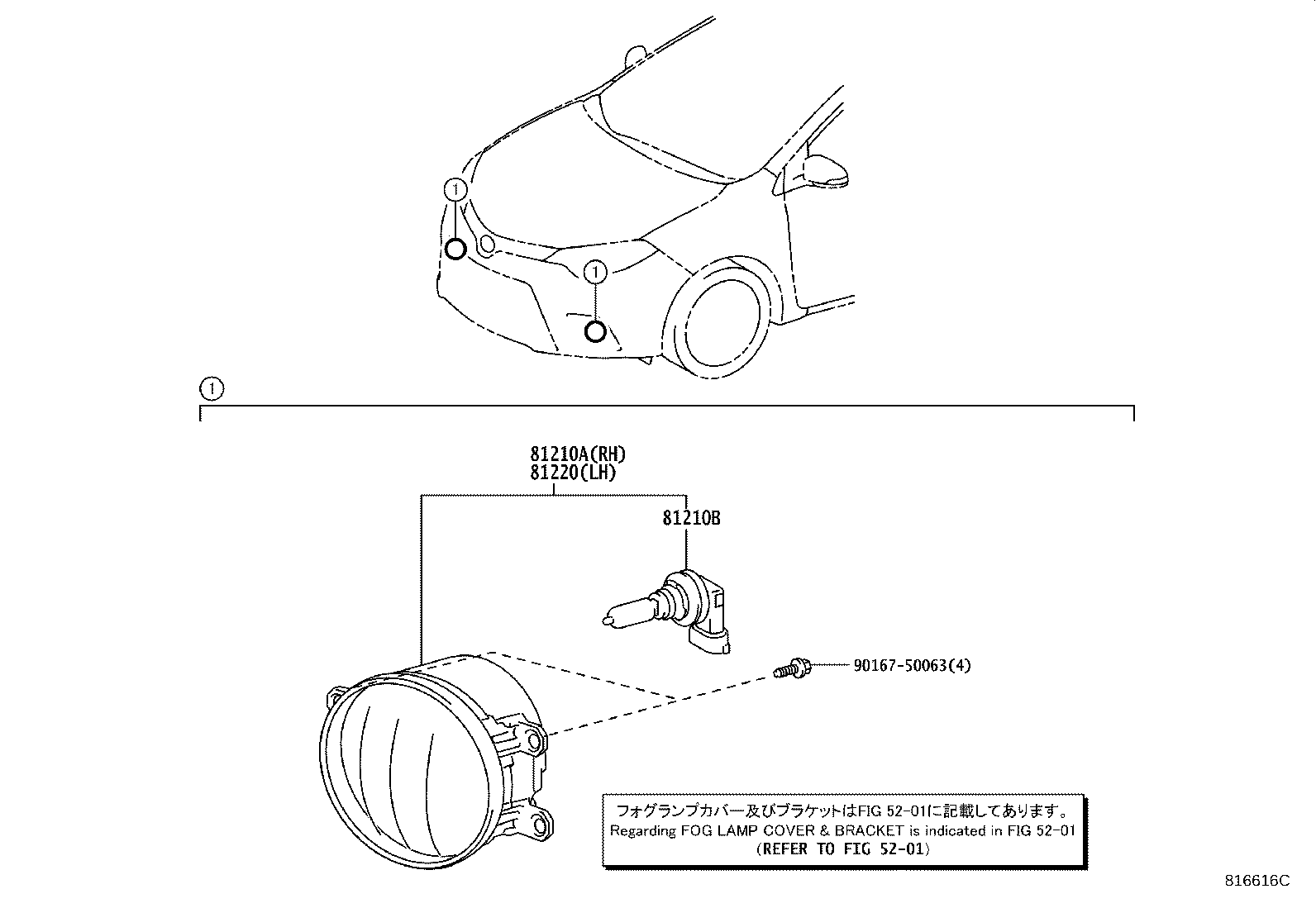

Click highlighted areas on diagram

diagram 5201 81210A 81210B 81220 9016750063
Part # Description Qty Price
81210A - LAMP ASSY, FOG, RH
81210-02160

ZRE172..S..MXC;ZRE172..(LE,S)..GEN

 1
81210B - BULB, FOG LAMP
90981-13090

ZRE172..(LE,S)..GEN;ZRE172..(CVT,MTM)..S..MXC

12V 19W

 2
81220 - LAMP ASSY, FOG, LH
81220-02160

ZRE172..S..MXC;ZRE172..(LE,S)..GEN

 1
Common parts
90167-50063
Linked diagrams
5201
