ZRE172L-DEXSK (2014)
Toyota Corolla
ILLUST NO. 1 OF 3(1308- )
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23221 - PUMP, FUEL | ||||
| 23220-0T200 |
2ZRFE..ZRE172 |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-0V010 |
2ZRFE..ZRE172..CVT,MTM |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-21010 |
2ZRFE..ZRE172..CVT,MTM |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-A0013 |
2ZRFE..ZRE172..CVT,MTM NO.3 |
1 | ||
| 90301-04013 |
2ZRFE..ZRE172..CVT,MTM NO.1 |
1 | ||
| 90301-15024 |
2ZRFE..ZRE172..CVT,MTM NO.2 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-A0013 |
2ZRFE..ZRE172..CVT,MTM NO.3 |
1 | ||
| 90301-04013 |
2ZRFE..ZRE172..CVT,MTM NO.1 |
1 | ||
| 90301-15024 |
2ZRFE..ZRE172..CVT,MTM NO.2 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-A0013 |
2ZRFE..ZRE172..CVT,MTM NO.3 |
1 | ||
| 90301-04013 |
2ZRFE..ZRE172..CVT,MTM NO.1 |
1 | ||
| 90301-15024 |
2ZRFE..ZRE172..CVT,MTM NO.2 |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-02410 |
ZRE172..CVT,MTM |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-02230 |
ZRE172..CVT,MTM |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-02610 |
ZRE172 |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-04020 |
ZRE172..CVT,MTM *348 |
1 | ||
| 77144-04010 |
ZRE172..CVT,MTM *213 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-02050 |
ZRE172..CVT,MTM |
1 | ||
| 77196 - CLAMP, EVAPORATION VENT TUBE, NO.1 | ||||
| 77196-02090 |
ZRE172..CVT,MTM |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-02330 |
ZRE172..CVT,MTM |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-02230 |
ZRE172..CVT,MTM |
1 | ||
| 77213E - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-02060 |
ZRE172..CVT,MTM |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-02150 |
ZRE172..CVT,MTM |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-02120 |
ZRE172..CVT,MTM |
1 | ||
| 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77218-02050 |
ZRE172..CVT,MTM |
1 | ||
| 77218C - SUPPORT, FUEL TANK FILLER PIPE, NO.5 | ||||
| 77218-02060 |
ZRE172..CVT,MTM |
1 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-0E010 |
ZRE172..CVT,MTM |
1 | ||
| 77226A - TUBE, FUEL TANK BREATHER, NO.6 | ||||
| 77226-02050 |
ZRE172..CVT,MTM |
1 | ||
| 77229D - SUPPORT, FUEL TANK FILLER PIPE, NO.4 | ||||
| 77229-02030 |
ZRE172..CVT,MTM |
2 | ||
| 77229D - SUPPORT, FUEL TANK FILLER PIPE, NO.4 | ||||
| 77229-02030 |
ZRE172..CVT,MTM |
2 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-02010 |
ZRE172..CVT,MTM |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-02050 |
ZRE172..CVT,MTM |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-02180 |
ZRE172..CVT,MTM |
1 | ||
| 77281 - BRACKET, FUEL MAIN TUBE, NO.1 | ||||
| 77281-02070 |
ZRE172..CVT,MTM |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-02100 |
ZRE172..CVT,MTM |
1 | ||
| 77281R - CLAMP, FUEL FILLER PIPE, NO.2 | ||||
| 77281-02150 |
ZRE172..CVT,MTM |
1 | ||
| 77286S - CUSHION, FUEL TANK PROTECTOR | ||||
| 77286-12110 |
ZRE172..CVT,MTM |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-02170 |
ZRE172..CVT,MTM |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-02020 |
ZRE172..CVT,MTM |
2 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-02020 |
ZRE172..CVT,MTM |
2 | ||
| 77296B - SUPPORT, FUEL TUBE PROTECTOR, NO.1 | ||||
| 77296-02030 |
ZRE172..CVT,MTM |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-07030 |
ZRE172..CVT,MTM |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-06070 |
ZRE172..CVT,MTM |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-02041 |
ZRE172..CVT,MTM |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-06070 |
ZRE172..CVT,MTM |
1 | ||
| 77404 - HOSE SUB-ASSY, FUEL TANK VENT | ||||
| 77404-02081 |
ZRE172..CVT,MTM |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-02160 |
ZRE172..GEN |
1 | ||
| 77601-02160 |
ZRE172 |
1 | ||
| 77601-02161 |
ZRE172..CVT,MTM |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-02140 |
ZRE172..GEN |
1 | ||
| 77602-02141 |
ZRE172..CVT,MTM |
1 | ||
| 77602-02140 |
ZRE172 |
1 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-A0267 |
ZRE172..CVT,MTM |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-A0267 |
ZRE172..CVT,MTM |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-A0267 |
ZRE172..CVT,MTM |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-A0267 |
ZRE172..CVT,MTM |
4 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-02200 |
ZRE172..CVT,MTM TYPE A:REFER ILLUST. |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-12080 |
ZRE172..CVT,MTM |
2 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-02060 |
ZRE172..CVT,MTM |
1 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-02010 |
ZRE172..CVT,MTM |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-02250 |
ZRE172..GEN |
1 | ||
| 77745 - FILTER, CHARCOAL CANISTER, NO.1 | ||||
| 77745-0E010 |
ZRE172..CVT,MTM |
1 | ||
| 77754B - HOSE, CHARCOAL CANISTER OUTLET | ||||
| 77754-02120 |
ZRE172..CVT,MTM |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-0R010 |
ZRE172..CVT,MTM |
1 | ||
| Common parts | ||||
| 90105-A0206 | ||||
| 90119-A0095 | ||||
| 90119-A0107 | ||||
| 90159-60602 | ||||
| 90159-A0053 | ||||
| 90460-40007 | ||||
| 90460-46005 | ||||
| 91673-A0825 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 3(1308- )
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-02050 |
ZRE172..CVT,MTM |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-02610 |
ZRE172..CVT,MTM |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-02470 |
ZRE172..CVT,MTM |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-02120 |
ZRE172..CVT,MTM |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-02130 |
ZRE172..CVT,MTM |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-12180 |
ZRE172..CVT,MTM |
2 | ||
| 77286F - CLAMP, FUEL TUBE, NO.2 | ||||
| 89639-12010 |
ZRE172..CVT,MTM |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-02100 |
ZRE172..CVT,MTM |
2 | ||
| 77298B - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-02110 |
ZRE172..CVT,MTM |
2 | ||
| 77298C - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-02120 |
ZRE172..CVT,MTM |
1 | ||
| Common parts | ||||
| 96132-51300 | ||||
| 96133-41501 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
ILLUST NO. 3 OF 3(1308- )

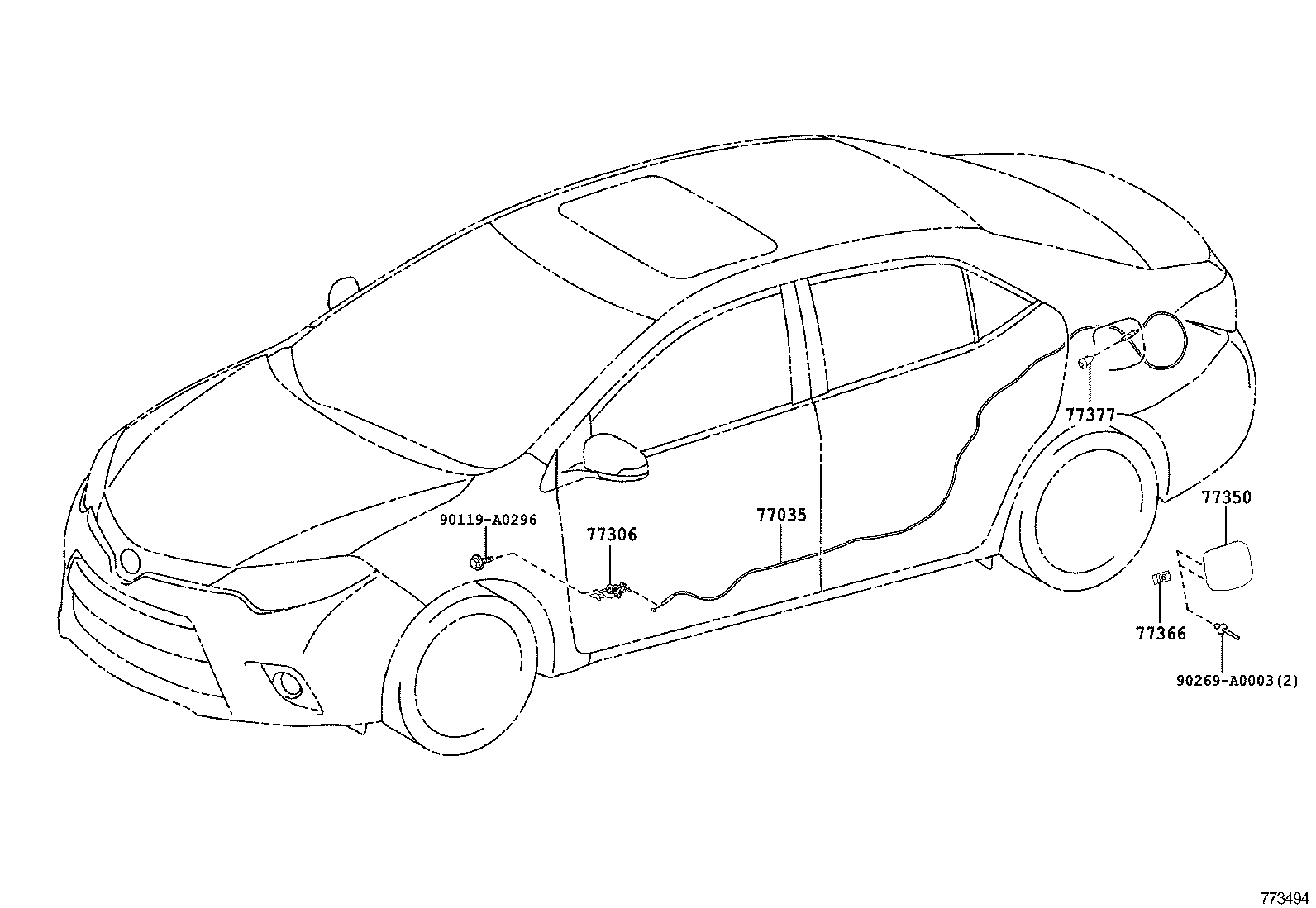

FUEL LID OPENER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-02380 |
ZRE172..CVT,MTM |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 64606-12050 |
ZRE172..CVT,MTM |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-02131 |
ZRE172 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-02020 |
ZRE172..CVT,MTM |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-AA020 |
ZRE172..CVT,MTM |
1 | ||
| Common parts | ||||
| 90119-A0296 | ||||
| 90269-A0003 | ||||
