ZRE172L-DEXSK (2014)

Toyota Corolla

Production Apr 2014 - Aug 2016
Engine 2ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1308- )

Click highlighted areas on diagram

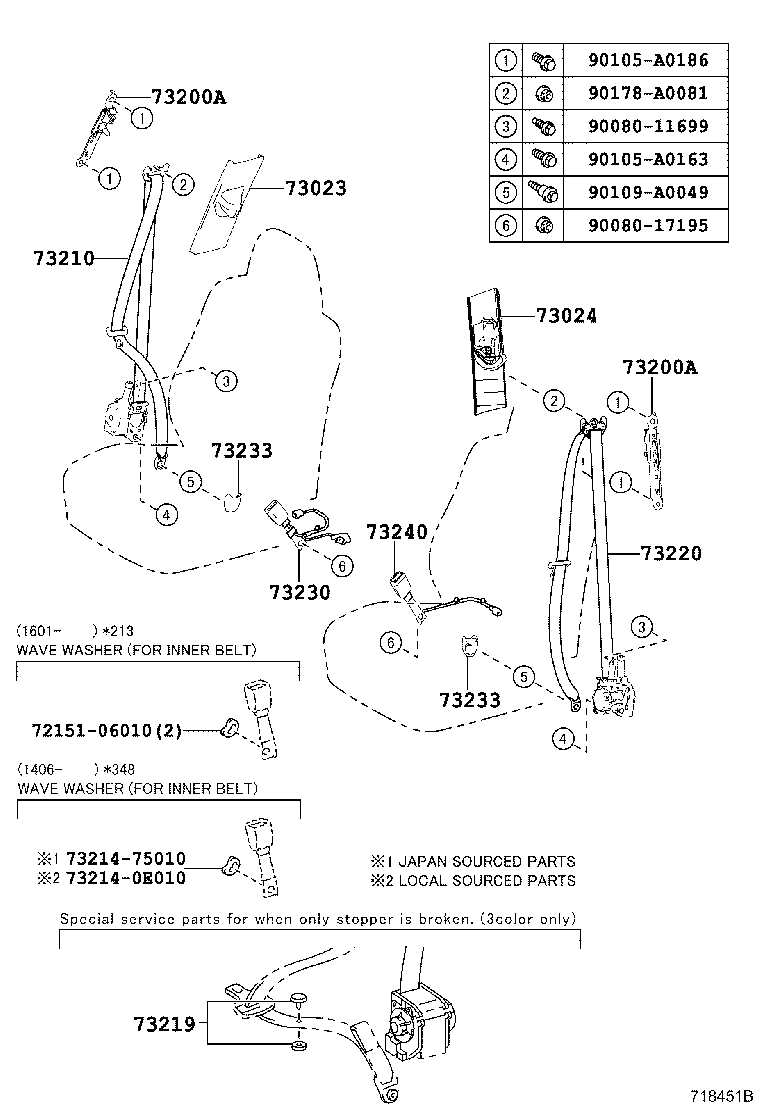

FRONT SEAT

diagram 7215106010 73023 73024 73200A 73200A 73210 732140E010 7321475010 73219 73220 73230 73233 73233 73240 9008011699 9008017195 90105A0163 90105A0186 90109A0049 90178A0081
Part # Description Qty Price
73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
73023-06070B1

ZRE172..S

LT.GRAY,TRIM2#,4#,8#

 1
73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
73024-06070B1

ZRE172..S

LT.GRAY,TRIM2#,4#,8#

 1
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-06040

ZRE172..CVT,MTM

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-06040

ZRE172..CVT,MTM

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-02500C0

ZRE172..S..GEN

BLACK,TRIM2#,4#,8#

 1
73210-02501C0

ZRE172..S..GEN

BLACK,TRIM2#,4#,8#

 1
73219 - STOPPER, TONGUE PLATE
73219-02020

ZRE172..CVT,MTM

GRAY

 1
73219-02030

ZRE172..CVT,MTM

BEIGE

 1
73219-02010

ZRE172..CVT,MTM

BLACK

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-02580C0

ZRE172..S..GEN

BLACK,TRIM2#,4#,8#

 1
73220-02581C0

ZRE172..S..GEN

BLACK,TRIM2#,4#,8#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-02830C0

ZRE172..S..GEN

BLACK,TRIM2#,4#,8#

 1
73233 - COVER, LAP BELT OUTER ANCHOR
73233-0C010C0

ZRE172..S

BLACK,TRIM2#,4#,8#

 2
73233 - COVER, LAP BELT OUTER ANCHOR
73233-0C010C0

ZRE172..S

BLACK,TRIM2#,4#,8#

 2
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-02A20C0

ZRE172..S..GEN

BLACK,TRIM2#,4#,8#

 1
Common parts
72151-06010
73214-0E010
73214-75010
90080-11699
90080-17195
90105-A0163
90105-A0186
90109-A0049
90178-A0081

ILLUST NO. 2 OF 2(1308- )

Click highlighted areas on diagram

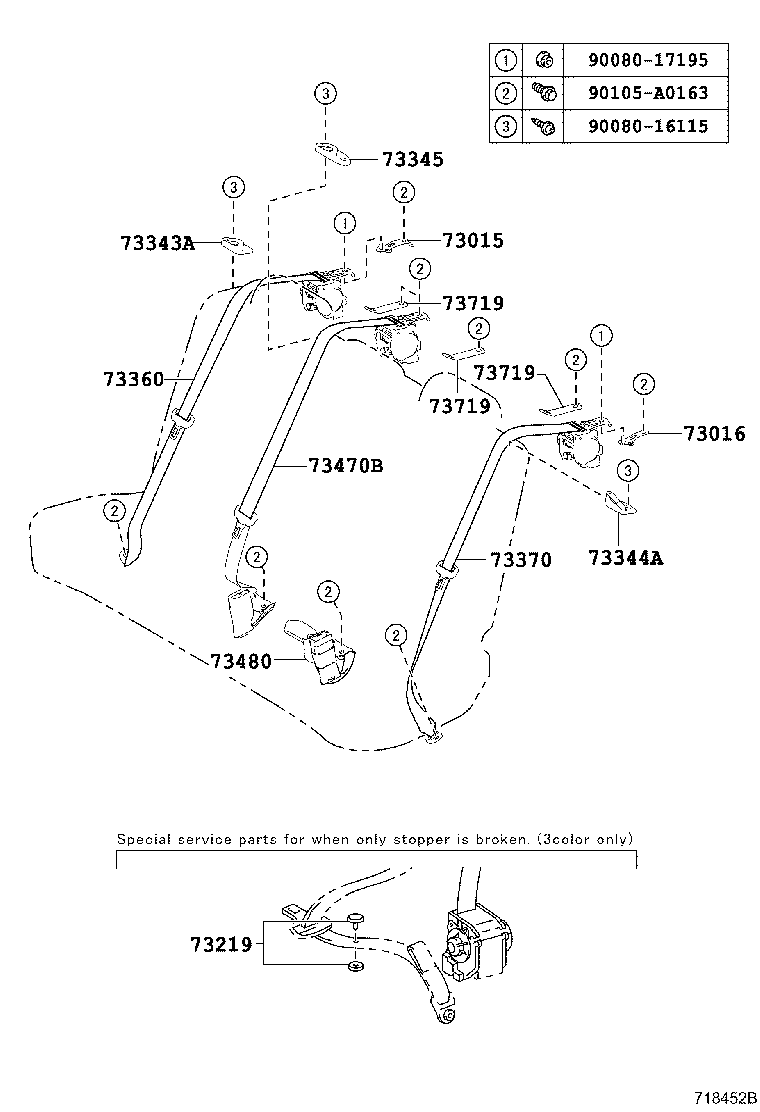

REAR SEAT

diagram 73015 73016 73219 73343A 73344A 73345 73360 73370 73470B 73480 73719 73719 73719 9008016115 9008017195 90105A0163
Part # Description Qty Price
73015 - BRACKET SUB-ASSY, BELT OUTER ANCHOR, RH
73015-02060

ZRE172..CVT,MTM

 1
73016 - BRACKET SUB-ASSY, BELT OUTER ANCHOR, LH
73016-02060

ZRE172..CVT,MTM

 1
73219 - STOPPER, TONGUE PLATE
73219-02020

ZRE172..CVT,MTM

GRAY

 1
73219-02030

ZRE172..CVT,MTM

BEIGE

 1
73219-02010

ZRE172..CVT,MTM

BLACK

 1
73343A - GUIDE, REAR SEAT SHOULDER BELT, RH
73343-02060C0

ZRE172..S

BLACK,TRIM2#,4#,8#

 1
73344A - GUIDE, REAR SEAT SHOULDER BELT, LH
73344-02020C0

ZRE172..S

BLACK,TRIM2#,4#,8#

 1
73345 - GUIDE, REAR SEAT SHOULDER BELT, CENTER
73345-02010C0

ZRE172..S

BLACK,TRIM2#,4#,8#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-02590C0

ZRE172..S..GEN

BLACK,TRIM2#,4#,8#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73360-02590C0

ZRE172..S..GEN

BLACK,TRIM2#,4#,8#

 1
73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH
73470-02420C0

ZRE172..S..GEN

BLACK,TRIM2#,4#,8#

 1
73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH
73480-02550C0

ZRE172..S

BLACK,TRIM2#,4#,8#

 1
73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR
73719-02030

ZRE172

 3
73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR
73719-02030

ZRE172

 3
73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR
73719-02030

ZRE172

 3
Common parts
90080-16115
90080-17195
90105-A0163
