ZRE172L-DEXSK (2014)

Toyota Corolla

Production Apr 2014 - Aug 2016
Engine 2ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1308- )

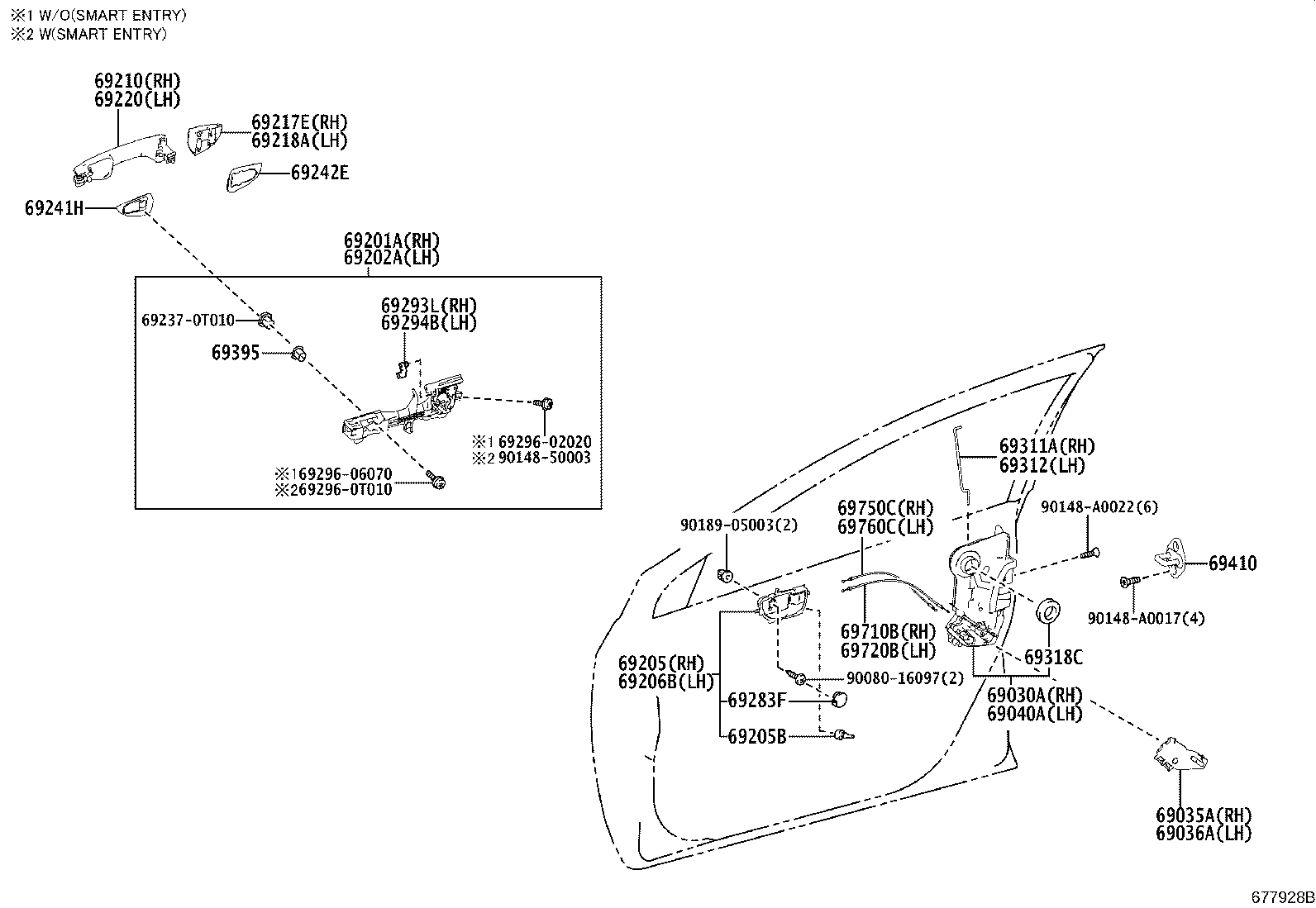

Click highlighted areas on diagram

diagram 69030A 69035A 69036A 69040A 69201A 69202A 69205 69205B 69206B 69210 69217E 69218A 69220 692370T010 69241H 69242E 69283F 69293L 69294B 6929602020 6929606070 692960T010 69311A 69312 69318C 69395 69410 69710B 69720B 69750C 69760C 9008016097 9014850003 90148A0017 90148A0022 9018905003
Part # Description Qty Price
69030A - LOCK ASSY, FRONT DOOR W/MOTOR, RH
69030-02550

ZRE172..(LE,S)..GEN

 1
69035A - COVER SUB-ASSY, FRONT DOOR LOCK, RH
69035-02030

ZRE172..CVT,MTM

 1
69036A - COVER SUB-ASSY, FRONT DOOR LOCK, LH
69036-02030

ZRE172..CVT,MTM

 1
69040A - LOCK ASSY, FRONT DOOR W/MOTOR, LH
69040-02520

ZRE172..GEN

 1
69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69201-0R010

ZRE172..(LE,S)..GEN

 1
69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69202-0R010

ZRE172..(LE,S)..GEN

 1
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-02250C0

ZRE172..S

BLACK,TRIM2#,4#,8#

 1
69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE)
90541-04027

ZRE172..CVT,MTM

 2
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-02180C0

ZRE172..S

BLACK,TRIM2#,4#,8#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-02140B1

ZRE172..(LE,S)..GEN

GRAY ME.,1F9

 1
69210-02140C0

ZRE172..(LE,S)..GEN

BLACK MC.,209

 1
69210-02140B0

ZRE172..(LE,S)..GEN

SILVER ME.,1F7

 1
69210-02140D0

ZRE172..(LE,S)..GEN

RED M.M.,3R3

 1
69210-02140A0

ZRE172..(LE,S)..GEN

SUPER WHITE 2,040

 1
69210-02140J0

ZRE172..S..GEN

DK.BLUE M.M.,8W7

 1
69210-02140E0

ZRE172..(LE,S)..GEN

AVANT-GARDE BRONZE ME.,4V8

 1
69217E - COVER, FRONT DOOR OUTSIDE HANDLE, RH
69217-02310D0

ZRE172..(LE,S)..GEN

RED M.M.,3R3

 1
69217-02310B0

ZRE172..(LE,S)..GEN

SILVER ME.,1F7

 1
69217-02310A0

ZRE172..(LE,S)..GEN

SUPER WHITE 2,040

 1
69217-02310C0

ZRE172..(LE,S)..GEN

BLACK MC.,209

 1
69217-02310E0

ZRE172..(LE,S)..GEN

AVANT-GARDE BRONZE ME.,4V8

 1
69217-02310B1

ZRE172..(LE,S)..GEN

GRAY ME.,1F9

 1
69217-02310J0

ZRE172..S..GEN

DK.BLUE M.M.,8W7

 1
69218A - COVER, FRONT DOOR OUTSIDE HANDLE, LH
69218-02060C0

ZRE172..(LE,S)..GEN

BLACK MC.,209

 1
69218-02060A0

ZRE172..(LE,S)..GEN

SUPER WHITE 2,040

 1
69218-02060E0

ZRE172..(LE,S)..GEN

AVANT-GARDE BRONZE ME.,4V8

 1
69218-02060B0

ZRE172..(LE,S)..GEN

SILVER ME.,1F7

 1
69218-02060D0

ZRE172..(LE,S)..GEN

RED M.M.,3R3

 1
69218-02060J0

ZRE172..S..GEN

DK.BLUE M.M.,8W7

 1
69218-02060B1

ZRE172..(LE,S)..GEN

GRAY ME.,1F9

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-02070A0

ZRE172..(LE,S)..GEN

SUPER WHITE 2,040

 1
69220-02070D0

ZRE172..(LE,S)..GEN

RED M.M.,3R3

 1
69220-02070C0

ZRE172..(LE,S)..GEN

BLACK MC.,209

 1
69220-02070B1

ZRE172..(LE,S)..GEN

GRAY ME.,1F9

 1
69220-02070J0

ZRE172..S..GEN

DK.BLUE M.M.,8W7

 1
69220-02070B0

ZRE172..(LE,S)..GEN

SILVER ME.,1F7

 1
69220-02070E0

ZRE172..(LE,S)..GEN

AVANT-GARDE BRONZE ME.,4V8

 1
69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242-02110

ZRE172

LH

 1
69241-02120

ZRE172

RH

 1
69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR
69242-02120

ZRE172

LH

 1
69241-02130

ZRE172

RH

 1
69293L - SNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293-12030

ZRE172..(LE,S)..GEN

 1
69294B - SNAP, FRONT DOOR OUTSIDE HANDLE, LH
69293-12040

ZRE172..(LE,S)..GEN

 1
69311A - ROD, FRONT DOOR LOCK OPEN, RH
69311-02260

ZRE172..CVT,MTM

 1
69312 - ROD, FRONT DOOR LOCK OPEN, LH
69312-02260

ZRE172..CVT,MTM

 1
69318C - SEAL, DOOR LOCK WIRING HARNESS
69318-AA010

ZRE172..CVT,MTM

 2
69395 - BUSH(FOR DOOR OUTSIDE HANDLE)
69239-0T010

ZRE172

 2
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-02030

ZRE172..CVT,MTM

 2
69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69710-02230

ZRE172..CVT,MTM

 1
69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69710-02230

ZRE172..CVT,MTM

 1
69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69750-02260

ZRE172..CVT,MTM

 1
69760C - CABLE ASSY, FRONT DOOR INSIDE LOCKING LH
69750-02260

ZRE172..CVT,MTM

 1
Common parts
69237-0T010
69296-02020
69296-06070
69296-0T010
90080-16097
90148-50003
90148-A0017
90148-A0022
90189-05003
