ZRE172L-DEXSK (2014)

Toyota Corolla

Production Apr 2014 - Aug 2016
Engine 2ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1308- )

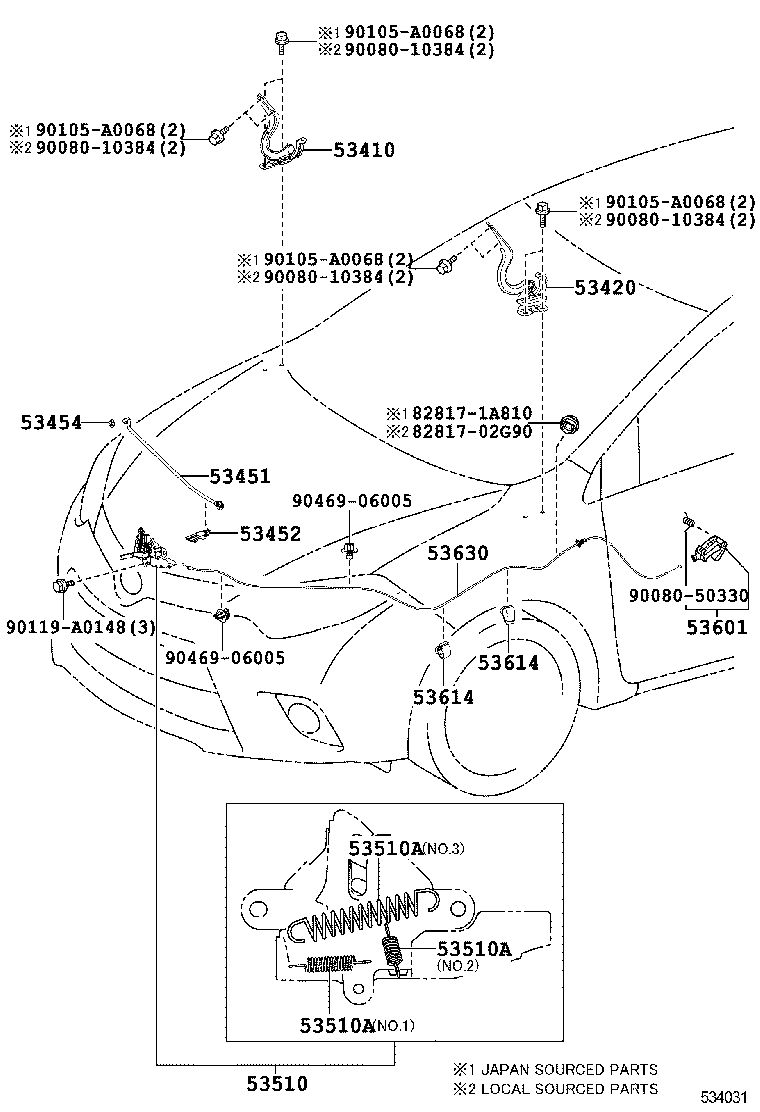

Click highlighted areas on diagram

diagram 53410 53420 53451 53452 53454 53510 53510A 53510A 53510A 53601 53614 53614 53630 8281702G90 828171A810 9008010384 9008010384 9008010384 9008010384 9008050330 90105A0068 90105A0068 90105A0068 90105A0068 90119A0148 9046906005 9046906005
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-02220

ZRE172..CVT,MTM

 1
53420 - HINGE ASSY, HOOD, LH
53420-02250

ZRE172..CVT,MTM

 1
53451 - ROD, HOOD SUPPORT
53440-02170

ZRE172..CVT,MTM

 1
53452 - HOLDER, HOOD STAY
53452-02140

ZRE172..CVT,MTM

 1
53454 - CLIP, HOOD SUPPORT ROD
53454-12040

ZRE172..CVT,MTM

 1
53510 - LOCK ASSY, HOOD
53510-02500

ZRE172..GEN

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09055

ZRE172..CVT,MTM

WD=0.9,CW=21,NO.1

 1
90506-18067

ZRE172..CVT,MTM

WD=1.8,CW=13,NO.3

 1
90506-12063

ZRE172..CVT,MTM

WD=1.2,CW=8.5,NO.2

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09055

ZRE172..CVT,MTM

WD=0.9,CW=21,NO.1

 1
90506-18067

ZRE172..CVT,MTM

WD=1.8,CW=13,NO.3

 1
90506-12063

ZRE172..CVT,MTM

WD=1.2,CW=8.5,NO.2

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09055

ZRE172..CVT,MTM

WD=0.9,CW=21,NO.1

 1
90506-18067

ZRE172..CVT,MTM

WD=1.8,CW=13,NO.3

 1
90506-12063

ZRE172..CVT,MTM

WD=1.2,CW=8.5,NO.2

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-02020C0

ZRE172..S

BLACK,TRIM2#,4#,8#

 1
53614 - CLAMP, HOOD LOCK CONTROL CABLE
82711-1E350

ZRE172..CVT,MTM

 2
53614 - CLAMP, HOOD LOCK CONTROL CABLE
82711-1E350

ZRE172..CVT,MTM

 2
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-02280

ZRE172..CVT,MTM

 1
Common parts
82817-02G90
82817-1A810
90080-10384
90080-50330
90105-A0068
90119-A0148
90469-06005
