ZRE172L-DEXSK (2014)

Toyota Corolla

Production Apr 2014 - Aug 2016
Engine 2ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1308-1608)

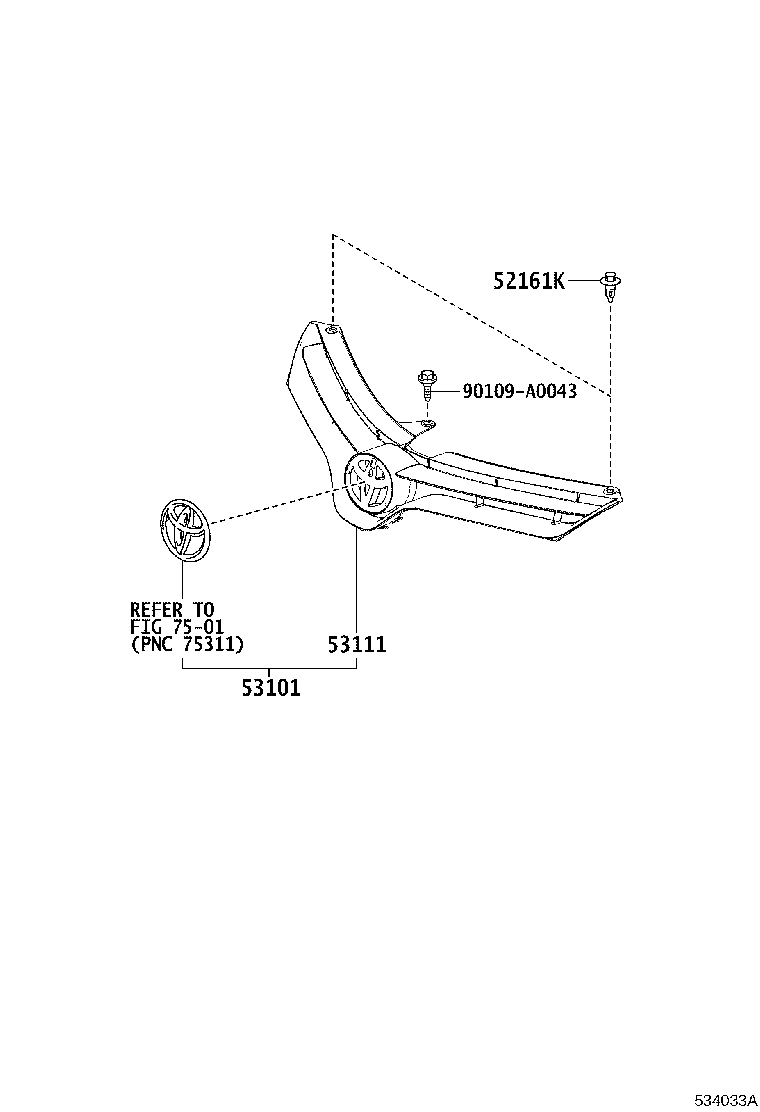

Click highlighted areas on diagram

diagram 52161K 53101 53111 7501 90109A0043
Part # Description Qty Price
52161K - PIECE, FRONT BUMPER
52161-02020

ZRE172..CVT,MTM

 2
53101 - GRILLE SUB-ASSY, RADIATOR
53100-02570

ZRE172..(CVT,MTM)..S

NO PAINT REQ.

 1
53111 - GRILLE, RADIATOR
53111-02770

ZRE172..(CVT,MTM)..S

NO PAINT REQ.

 1
Common parts
90109-A0043
Linked diagrams
7501
