ZRE172L-DEXSK (2014)

Toyota Corolla

Production Apr 2014 - Aug 2016
Engine 2ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

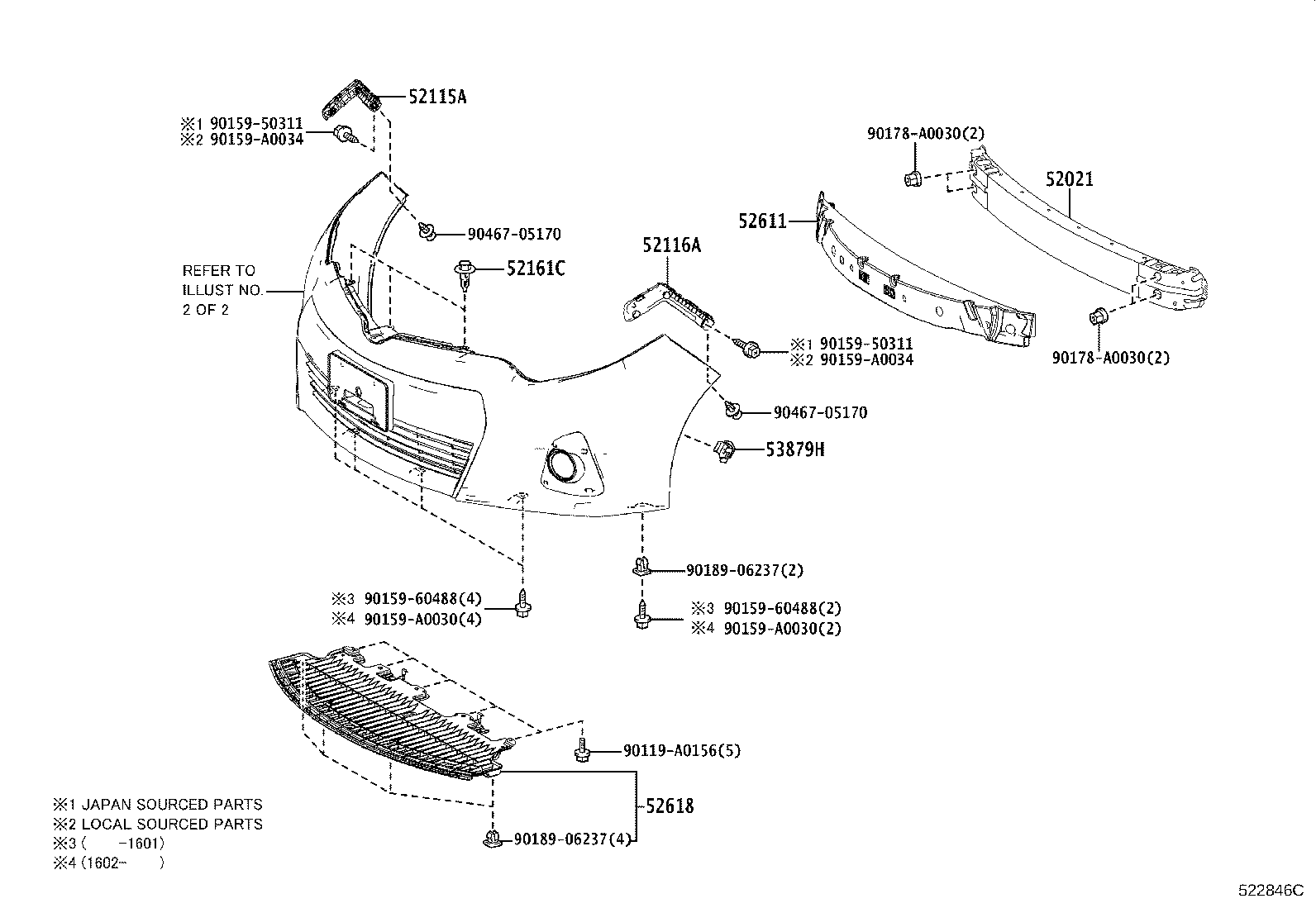

ILLUST NO. 1 OF 2(1308-1608)S

Click highlighted areas on diagram

diagram 52021 52115A 52116A 52161C 52611 52618 53879H 90119A0156 9015950311 9015950311 9015960488 9015960488 90159A0030 90159A0030 90159A0034 90159A0034 90178A0030 90178A0030 9018906237 9018906237 9046705170 9046705170
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-02300

ZRE172..CVT,MTM

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-02240

ZRE172..CVT,MTM

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-02240

ZRE172..CVT,MTM

 1
52161C - PIECE, FRONT BUMPER
52161-02020

ZRE172..CVT,MTM

 3
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-02280

ZRE172..CVT,MTM

 1
52618 - ABSORBER, FRONT BUMPER, LOWER
52618-02060

ZRE172..CVT,MTM

 1
53879H - RETAINER, FRONT FENDER LINER
53879-02070

ZRE172..CVT,MTM

 2
53879-58010

ZRE172

 2
Common parts
90119-A0156
90159-50311
90159-60488
90159-A0030
90159-A0034
90178-A0030
90189-06237
90467-05170

ILLUST NO. 2 OF 2(1308-1608)S

Click highlighted areas on diagram

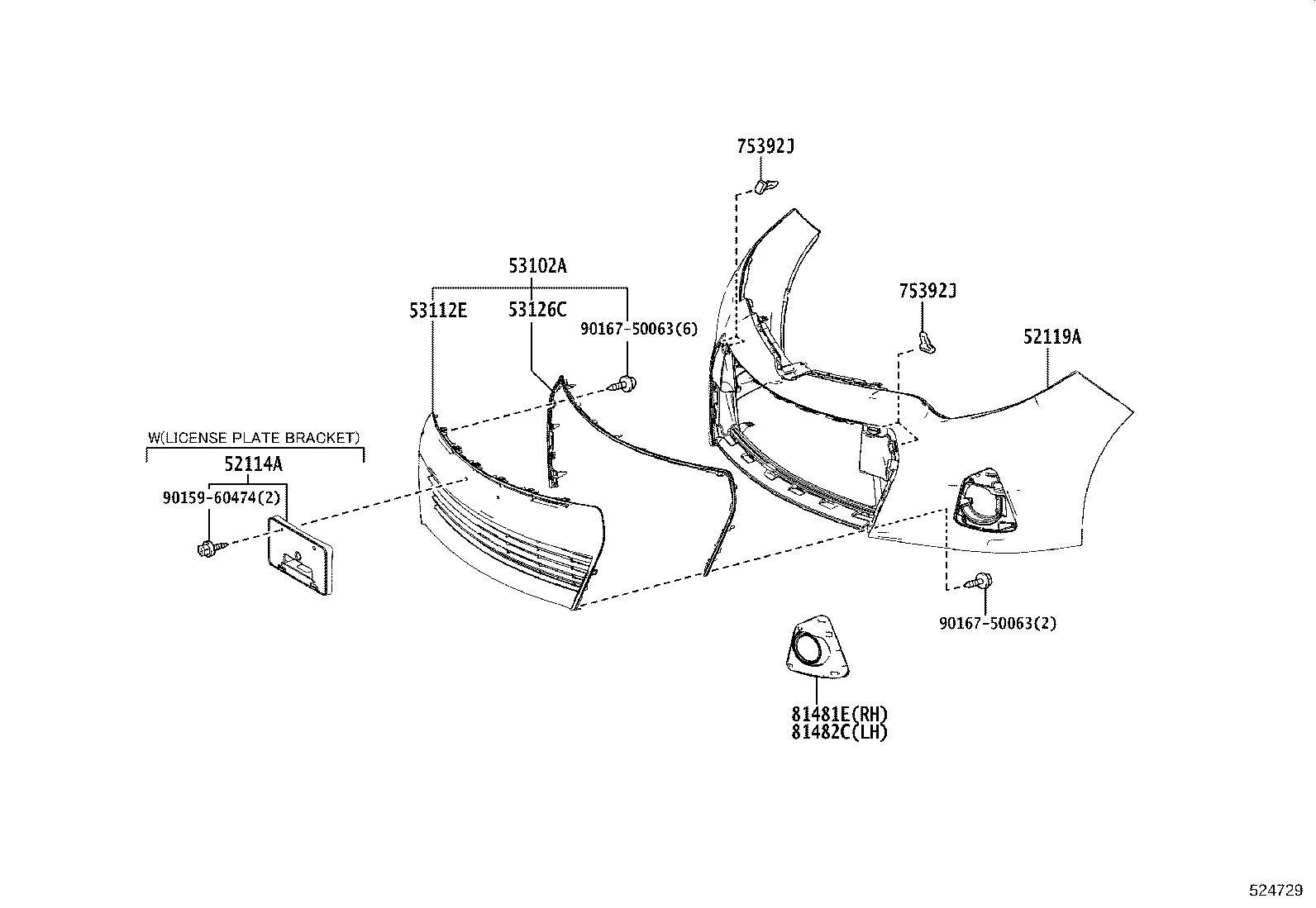

diagram 52114A 52119A 53102A 53112E 53126C 75392J 75392J 81481E 81482C 9015960474 9016750063 9016750063
Part # Description Qty Price
52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-02090

ZRE172..CVT..S;ZRE172..6F..S..GEN

LICENSE PLATE BRACKET-WITH(FRONT) & WITHOUT(REAR)

 1
52114-02090

ZRE172..S

LICENSE PLATE BRACKET-WITH(FRONT) & WITHOUT(REAR)

 1
52119A - COVER, FRONT BUMPER
52119-03906

ZRE172..(CVT,MTM)..S

PAINT REQ.

 1
53102A - GRILLE SUB-ASSY, RADIATOR, LWR
53102-02210

ZRE172..(CVT,MTM)..S

 1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-02510

ZRE172..(CVT,MTM)..S

NO PAINT REQ.

 1
53126C - MOULDING, RADIATOR GRILLE, NO.6
53126-02090

ZRE172..(CVT,MTM)..S

 1
75392J - RETAINER, OUTSIDE MOULDING
75392-35220

ZRE172..(CVT,MTM)..S

 4
75392J - RETAINER, OUTSIDE MOULDING
75392-35220

ZRE172..(CVT,MTM)..S

 4
81481E - COVER, FOG LAMP, RH
81481-02480

ZRE172..(CVT,MTM)..S

 1
81482C - COVER, FOG LAMP, LH
81482-02470

ZRE172..(CVT,MTM)..S

 1
Common parts
90159-60474
90167-50063
