ZRE172L-DEXSK (2014)

Toyota Corolla

Production Apr 2014 - Aug 2016
Engine 2ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1308- )

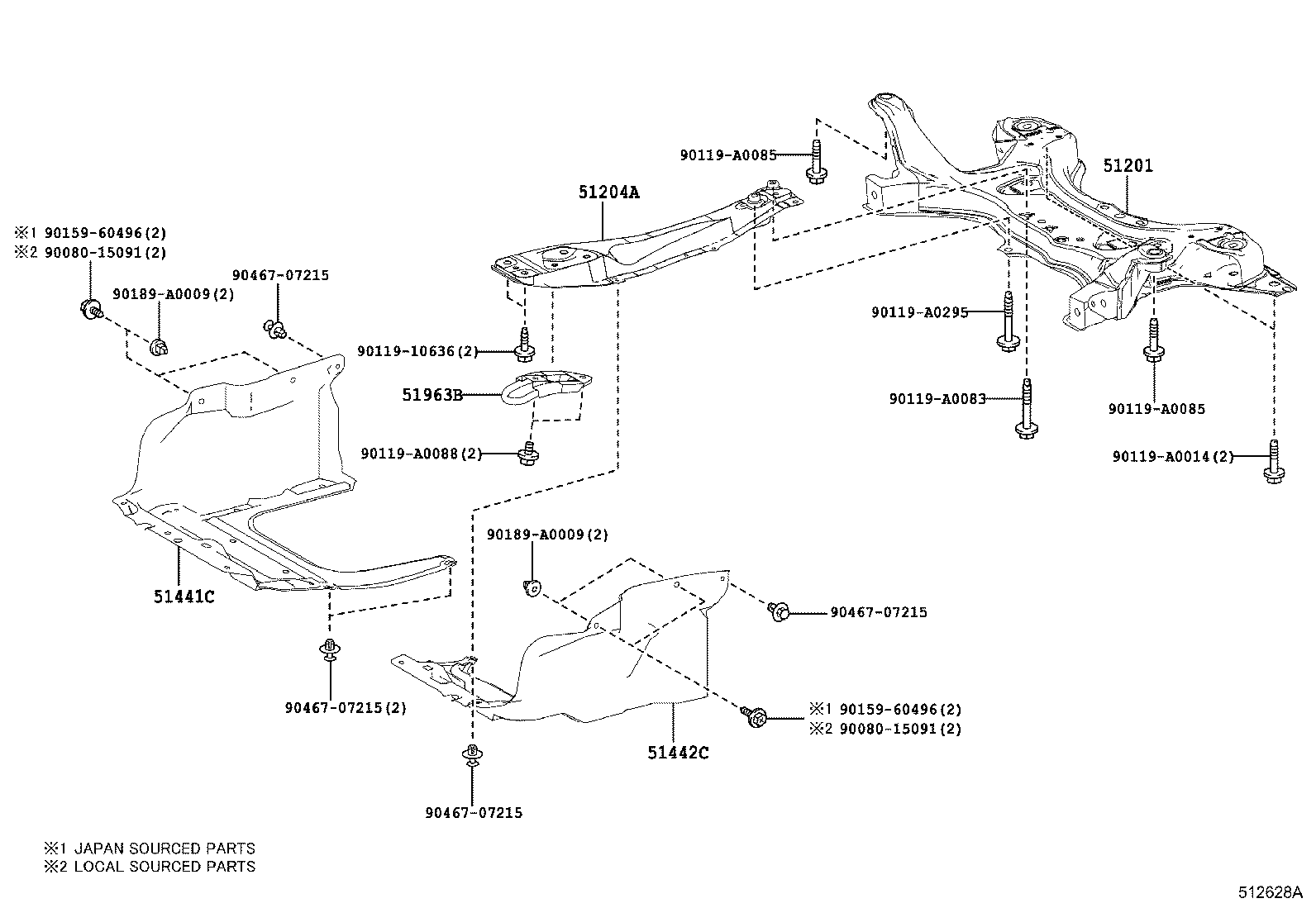

Click highlighted areas on diagram

diagram 51201 51204A 51441C 51442C 51963B 9008015091 9008015091 9011910636 90119A0014 90119A0083 90119A0085 90119A0085 90119A0088 90119A0295 9015960496 9015960496 90189A0009 90189A0009 9046707215 9046707215 9046707215 9046707215
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-02151

ZRE172

 1
51204A - MEMBER SUB-ASSY, ENGINE MOUNTING, CENTER
51204-02080

ZRE172..CVT,MTM

 1
51441C - COVER, ENGINE UNDER, RH
51441-02350

ZRE172..CVT,MTM

 1
51442C - COVER, ENGINE UNDER, LH
51442-02470

ZRE172..CVT

 1
51963B - HOOK, TRANSPORT, FRONT RH
51960-02100

ZRE172..CVT,MTM

 1
Common parts
90080-15091
90119-10636
90119-A0014
90119-A0083
90119-A0085
90119-A0088
90119-A0295
90159-60496
90189-A0009
90467-07215
