ZRE172L-DEXSK (2014)

Toyota Corolla

Production Apr 2014 - Aug 2016
Engine 2ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1308- )

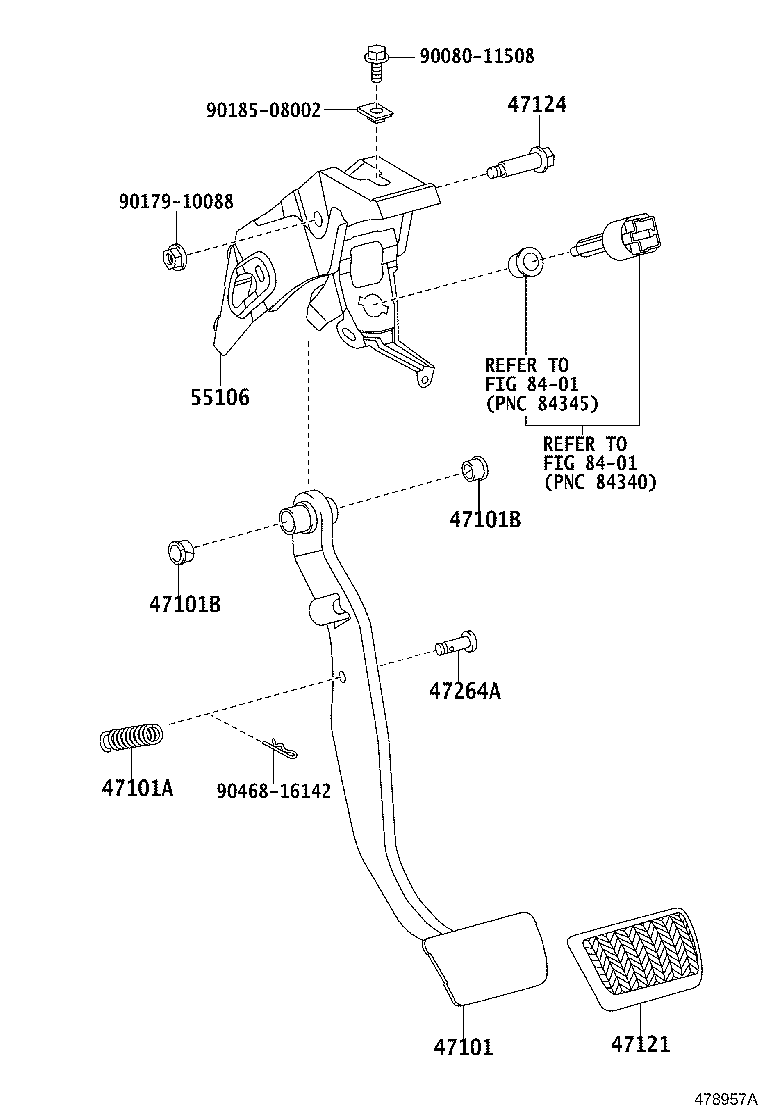

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47121 47124 47264A 55106 8401 8401 9008011508 9017910088 9018508002 9046816142
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-02520

ZRE172..CVT

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90507-15007

ZRE172..CVT,MTM

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

ZRE172..CVT,MTM

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

ZRE172..CVT,MTM

 2
47121 - PAD, BRAKE PEDAL
47121-42010

ZRE172..CVT

 1
47124 - SHAFT, BRAKE PEDAL
90109-10174

ZRE172..CVT,MTM

 1
47264A - PIN(FOR PUSH ROD)
90249-08256

ZRE172..CVT,MTM

 1
55106 - SUPPORT SUB-ASSY, BRAKE PEDAL
55106-02150

ZRE172..CVT,MTM

 1
Common parts
90080-11508
90179-10088
90185-08002
90468-16142
Linked diagrams
8401
