ZRE172L-DEXSK (2014)

Toyota Corolla

Production Apr 2014 - Aug 2016
Engine 2ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

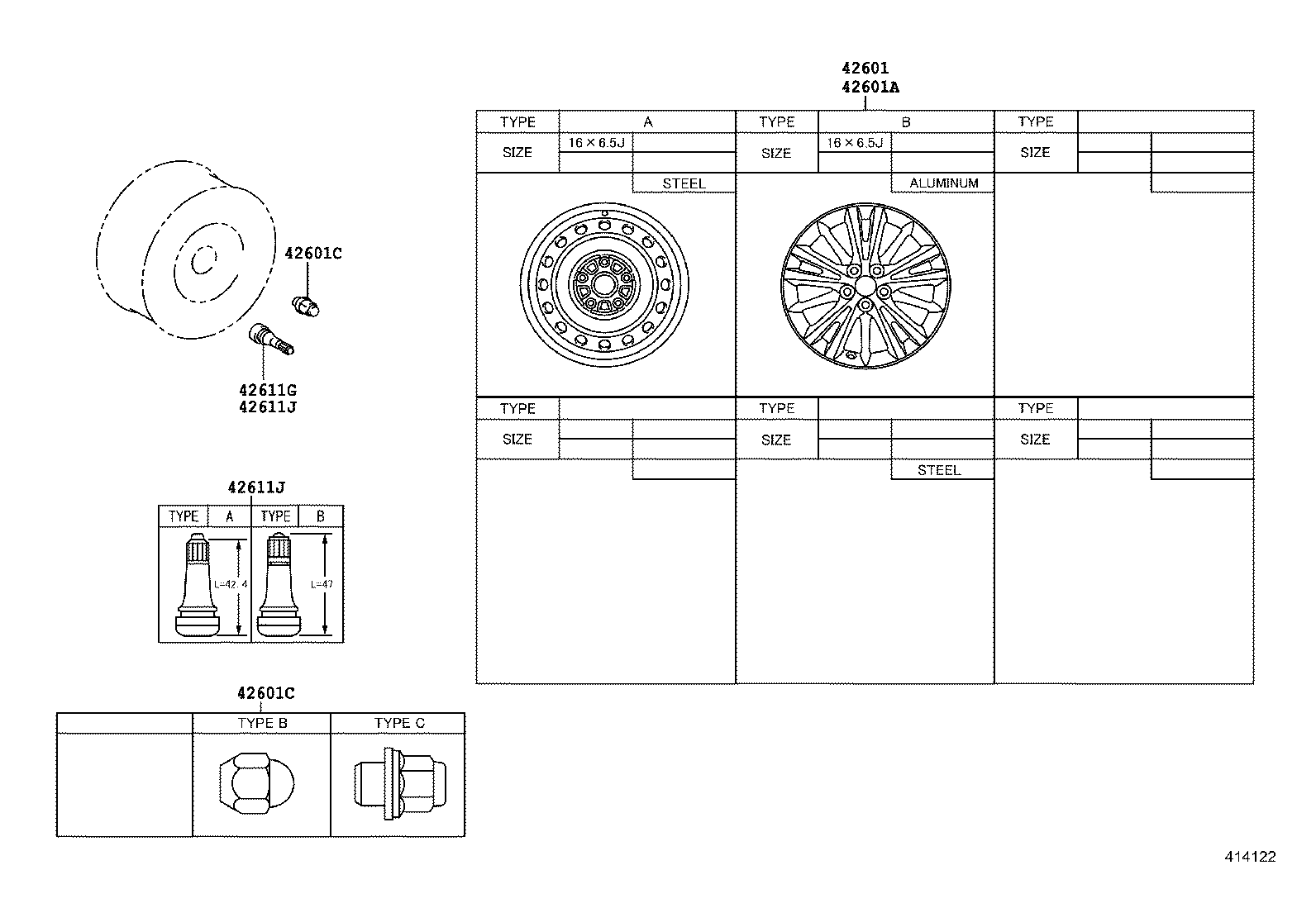

ILLUST NO. 1 OF 2(1404- )GEN

Click highlighted areas on diagram

diagram 42601 42601A 42601C 42601C 42611G 42611J 42611J
Part # Description Qty Price
42601 - WHEEL, DISC
42611-02M50

ZRE172..(LE,S)..GEN

16X6.5J,#,TYPE B:REFER ILLUST.

 4
42611-02F70

ZRE172..(LE,S)..GEN

16X6.5J,#,TYPE B:REFER ILLUST.

 4
42601A - WHEEL, DISC (FOR SPARE)
42611-02A00

ZRE172..GEN

16X6.5J,#,TYPE A:REFER ILLUST.

 1
42601C - NUT, HUB (FOR AXLE)
90084-94001

ZRE172..(LE,S)..GEN

TYPE C:REFER ILLUST.

 20
42601C - NUT, HUB (FOR AXLE)
90084-94001

ZRE172..(LE,S)..GEN

TYPE C:REFER ILLUST.

 20
42611G - VALVE (FOR TUBELESS TIRE)
90080-45006

ZRE172..(LE,S)..GEN

TYPE B:REFER ILLUST.

 4
90080-45001

ZRE172..(LE,S)..GEN

TYPE A:REFER ILLUST.

 4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90080-45001

ZRE172..(LE,S)..GEN

TYPE A:REFER ILLUST.

 1
90080-45006

ZRE172..(LE,S)..GEN

TYPE B:REFER ILLUST.

 1
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90080-45001

ZRE172..(LE,S)..GEN

TYPE A:REFER ILLUST.

 1
90080-45006

ZRE172..(LE,S)..GEN

TYPE B:REFER ILLUST.

 1

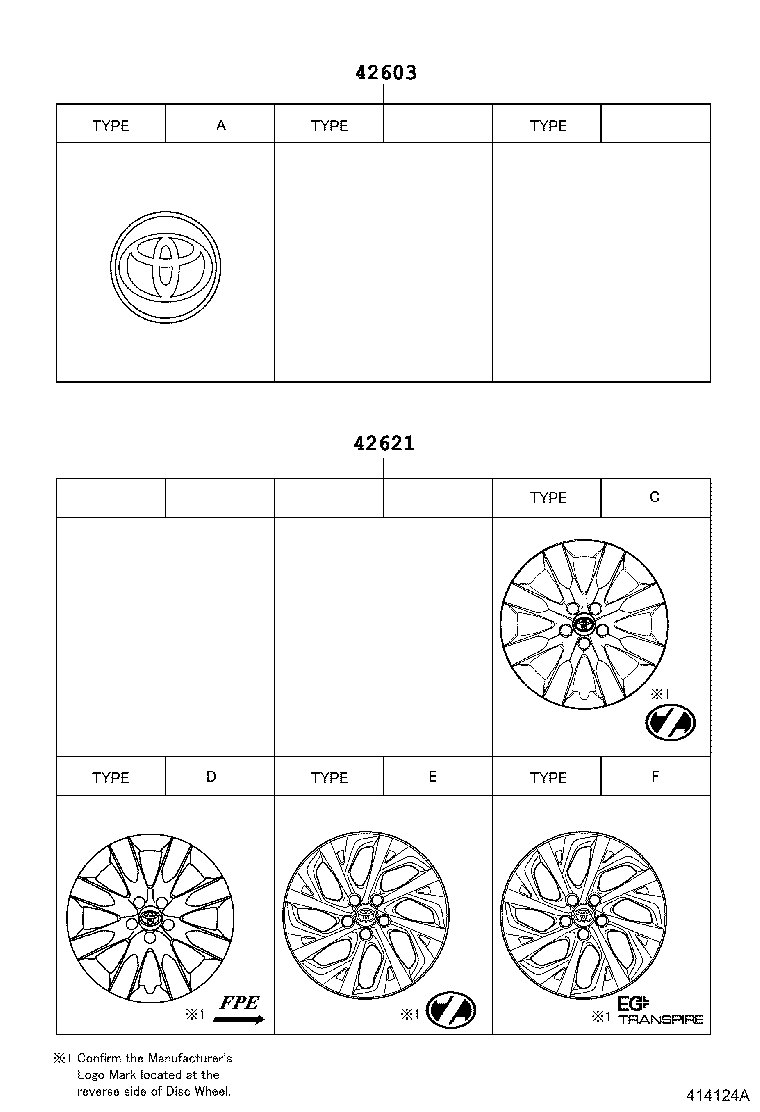

ILLUST NO. 2 OF 2(1404- )GEN

Click highlighted areas on diagram

diagram 42603 42621
Part # Description Qty Price
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-02220

ZRE172..(LE,S)..GEN

*CHR,TYPE A:REFER ILLUST.

 4
