ZRE172L-DEXSK (2014)

Toyota Corolla

Production Apr 2014 - Aug 2016
Engine 2ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1308- )

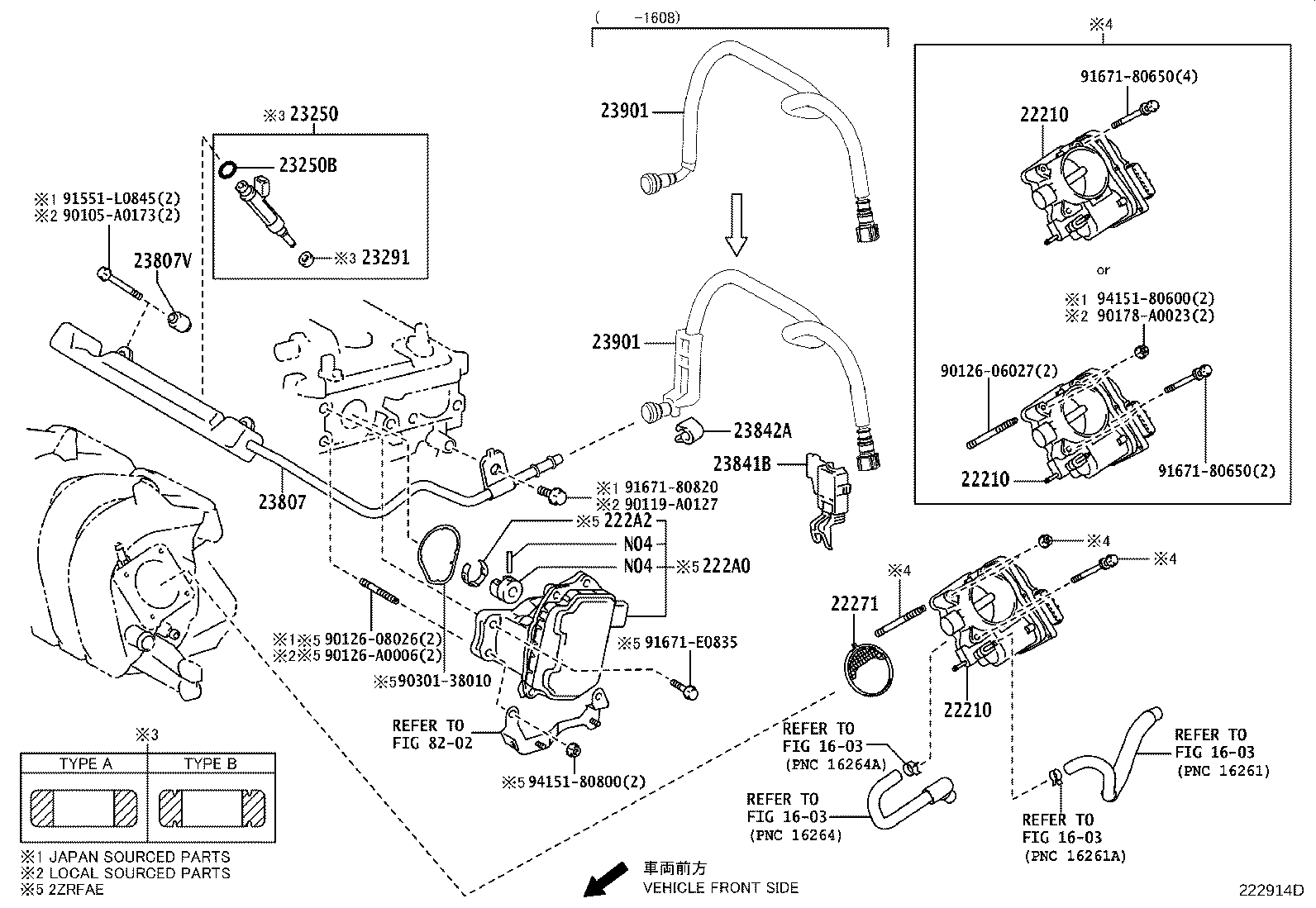

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 22210 22210 22210 22271 222A0 222A2 23250 23250B 23291 23807 23807V 23841B 23842A 23901 23901 8202 90105A0173 90119A0127 9012606027 9012608026 90126A0006 90178A0023 9030138010 91551L0845 9167180650 9167180650 9167180820 91671E0835 9415180600 9415180800
Part # Description Qty Price
22210 - BODY ASSY, THROTTLE
22030-37050

2ZRFE..ZRE172..CVT,MTM

(J)

 1
22030-0T080

2ZRFE..ZRE172..CVT,MTM

(L)

 1
22210 - BODY ASSY, THROTTLE
22030-37050

2ZRFE..ZRE172..CVT,MTM

(J)

 1
22030-0T080

2ZRFE..ZRE172..CVT,MTM

(L)

 1
22210 - BODY ASSY, THROTTLE
22030-37050

2ZRFE..ZRE172..CVT,MTM

(J)

 1
22030-0T080

2ZRFE..ZRE172..CVT,MTM

(L)

 1
22271 - GASKET, THROTTLE BODY
22271-75031

2ZRFE..ZRE172..GEN

(J)

 1
23250 - INJECTOR ASSY, FUEL
23209-39146

2ZRFE..ZRE172..CVT,MTM

(J),TYPE B

 4
23209-39145

2ZRFE..ZRE172..CVT,MTM

(J),TYPE A

 4
23209-09140

2ZRFE..ZRE172..CVT,MTM

(L)

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07037

2ZRFE..ZRE172..CVT,MTM

(J)

 4
90301-A0036

2ZRFE..ZRE172..CVT,MTM

(L)

 4
23291 - INSULATOR, INJECTOR VIBRATION
23291-23010

2ZRFE..ZRE172..CVT,MTM

TYPE A:REFER ILLUST.

 4
23291-28020

2ZRFE..ZRE172..CVT,MTM

TYPE B:REFER ILLUST.

 4
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23814-37051

2ZRFE..ZRE172..CVT,MTM

 1
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
23891-37010

2ZRFE..ZRE172..CVT,MTM

 2
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-0T031

2ZRFE..ZRE172

 1
23841-0T030

2ZRFE..ZRE172..CVT,MTM

 1
23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI)
23842-0T030

2ZRFE..ZRE172..CVT,MTM

 1
23901 - TUBE SUB-ASSY, FUEL
23901-0T120

2ZRFE..ZRE172..CVT,MTM

 1
23901 - TUBE SUB-ASSY, FUEL
23901-0T120

2ZRFE..ZRE172..CVT,MTM

 1
Common parts
90105-A0173
90119-A0127
90126-06027
90126-08026
90126-A0006
90178-A0023
90301-38010
91551-L0845
91671-80650
91671-80820
91671-E0835
94151-80600
94151-80800
