ZRE172L-DEXSK (2014)

Toyota Corolla

Production Apr 2014 - Aug 2016
Engine 2ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1308- )

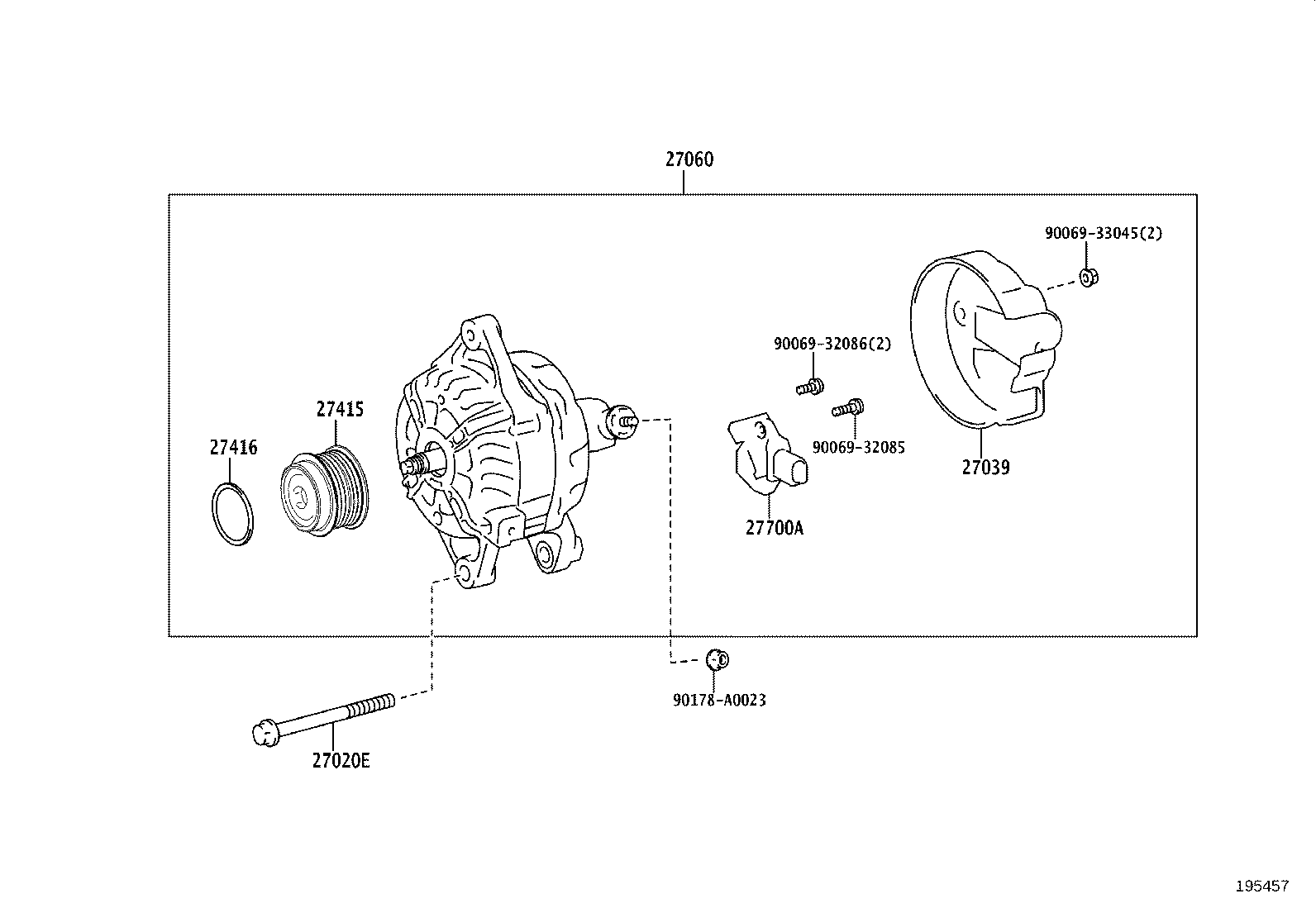

Click highlighted areas on diagram

12V 100A VALEO

diagram 27020E 27039 27060 27415 27416 27700A 9006932085 9006932086 9006933045 90178A0023
Part # Description Qty Price
27020E - BOLT(FOR ALTERNATOR)
90105-10307

2ZRFE..ZRE172..CVT,MTM

(J)

 1
90105-A0267

2ZRFE..ZRE172..CVT,MTM

(L)

 1
27039 - COVER, ALTERNATOR REAR END
27039-0T210

2ZRFE..ZRE172..MXC;2ZRFE..ZRE172..S..GEN;2ZRFE..ZRE172..6F..(LE,STD)..GEN

 1
27060 - ALTERNATOR ASSY, W/REGULATOR
27060-0T230

2ZRFE..ZRE172..MXC;2ZRFE..ZRE172..S..GEN;2ZRFE..ZRE172..6F..(LE,STD)..GEN

 1
27415 - PULLEY, ALTERNATOR W/CLUTCH
27415-0T031

2ZRFE..ZRE172..MXC;2ZRFE..ZRE172..S..GEN;2ZRFE..ZRE172..6F..(LE,STD)..GEN

 1
27416 - CAP, ALTERNATOR PULLEY
27416-0W050

2ZRFE..ZRE172

 1
27700A - REGULATOR ASSY, GENERATOR
27700-0T060

2ZRFE..ZRE172..MXC;2ZRFE..ZRE172..S..GEN;2ZRFE..ZRE172..6F..(LE,STD)..GEN

 1
Common parts
90069-32085
90069-32086
90069-33045
90178-A0023
