ZRE172L-DEXSK (2014)

Toyota Corolla

Production Apr 2014 - Aug 2016
Engine 2ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1308- )

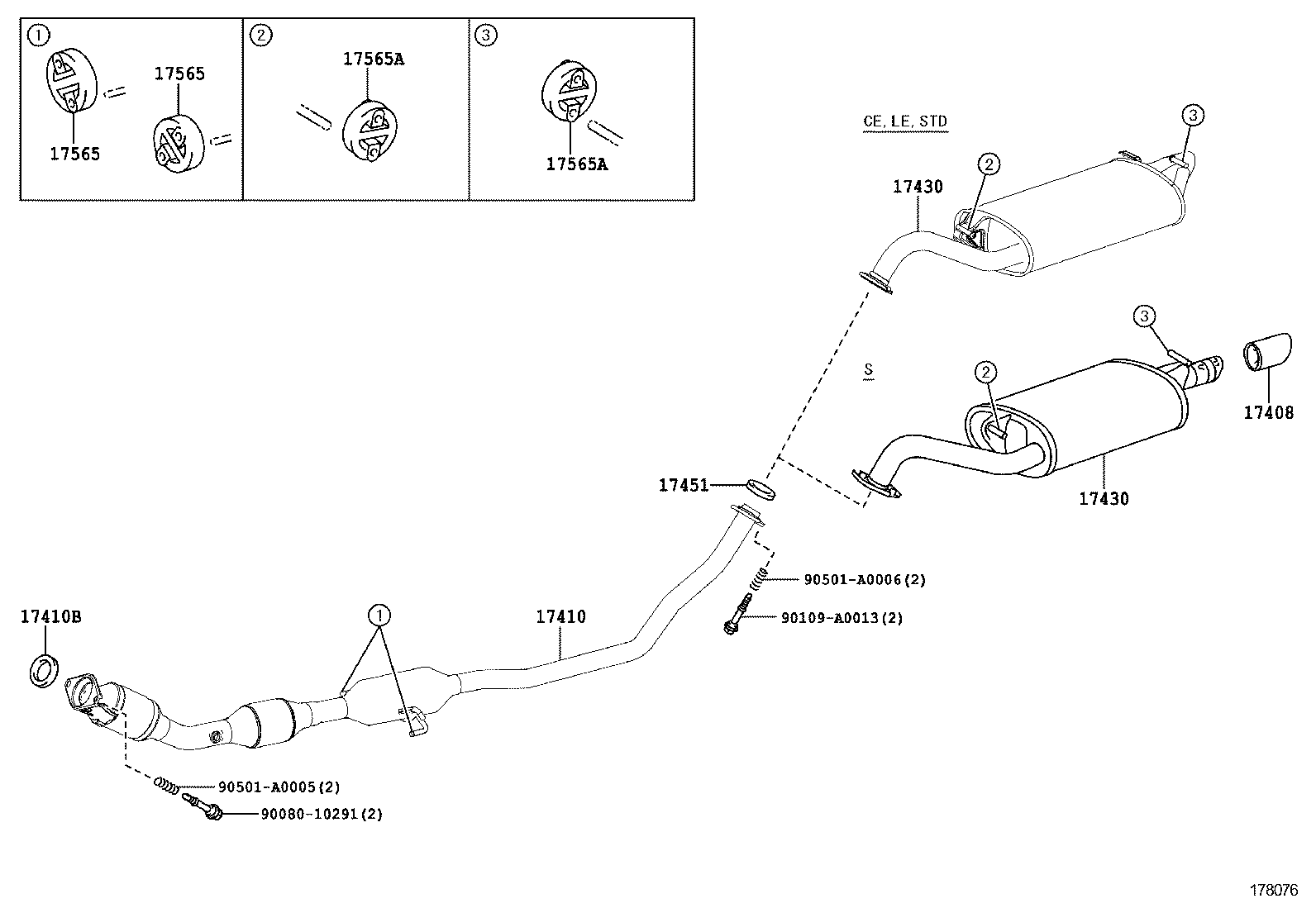

Click highlighted areas on diagram

diagram 17408 17410 17410B 17430 17430 17451 17565 17565 17565A 17565A 9008010291 90109A0013 90501A0005 90501A0006
Part # Description Qty Price
17408 - BAFFLE SUB ASSY, EXHAUST TAIL PIPE
17408-37010

2ZRFE..ZRE172..(CVT,MTM)..S

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-0T890

2ZRFE..ZRE172..GEN

ECUADOR SPEC

 1
17410-0T550

2ZRFE..ZRE172

 1
17410-0TA00

2ZRFE..ZRE172..GEN

CHILE SPEC

 1
17410-0T890

2ZRFE..ZRE172..GEN

PERU SPEC

 1
17410-0T620

2ZRFE..ZRE172..GEN

 1
17410B - GASKET, EXHAUST PIPE
17451-0D140

2ZRFE..ZRE172..CVT,MTM

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-0T260

2ZRFE..ZRE172..S

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-0T260

2ZRFE..ZRE172..S

 1
17451 - GASKET, EXHAUST PIPE
17451-0D132

2ZRFE..ZRE172..CVT,MTM

 1
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-0P031

2ZRFE..ZRE172..CVT,MTM

 2
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-0P031

2ZRFE..ZRE172..CVT,MTM

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0P041

2ZRFE..ZRE172..CVT,MTM

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0P041

2ZRFE..ZRE172..CVT,MTM

 2
Common parts
90080-10291
90109-A0013
90501-A0005
90501-A0006
