ZRE172L-DEPNKJ (2013)

Toyota Corolla

Production Aug 2013 - Aug 2014
Engine 2ZRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1308- )LE,S

Click highlighted areas on diagram

W(SMART ENTRY)

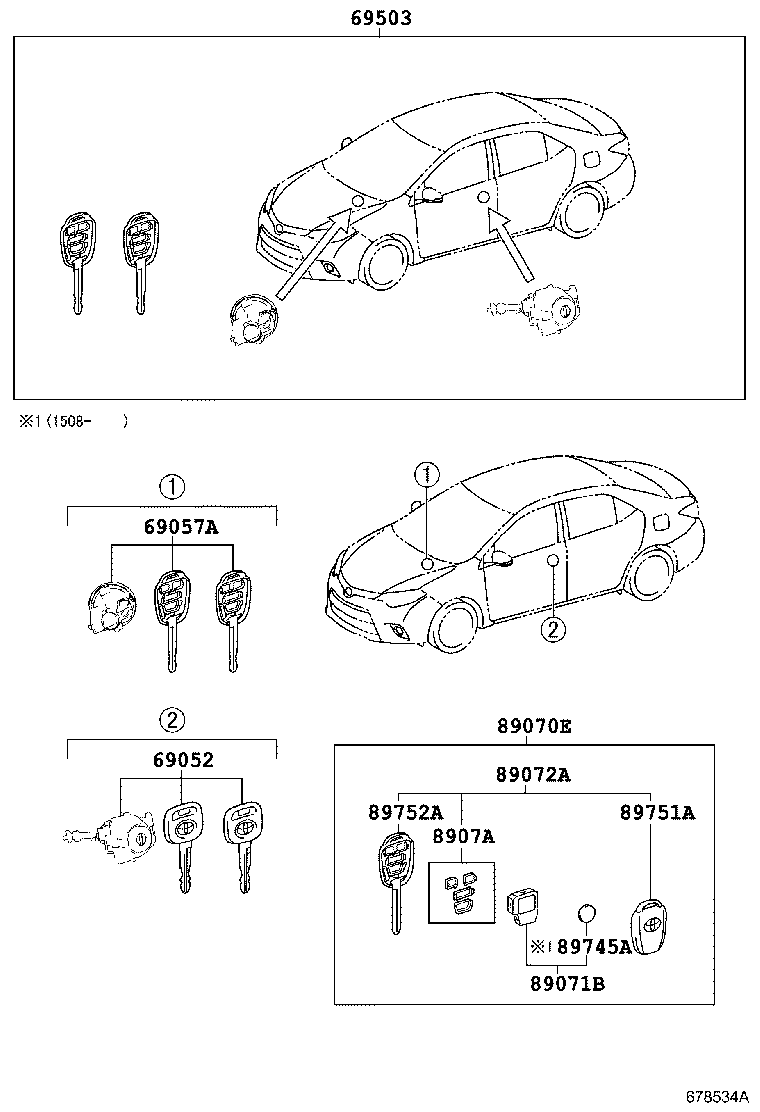

diagram 69052 69503A 69503B 89745C 89745C 8975B 89904B 89904B
Part # Description Qty Price
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-02270

ZRE172..4FC

 1
69052-02280

ZRE172..4FC..(LE,S)

STARTING SYSTEM-PUSH(WITH/SMART)

 1
69503A - KEY, BLANK
69515-33100

ZRE172..(LE,S)..MXC

MASTER KEY,W(*68),STARTING SYSTEM-PUSH(WITH/SMART)

 1
69503B - KEY, CUT
69515-33090

ZRE172..(LE,S)..MXC

MASTER KEY,W(*68),STARTING SYSTEM-PUSH(WITH/SMART)

 1
89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY
89904-06140

ZRE172..4FC..(LE,S)

STARTING SYSTEM-PUSH(WITH/SMART),TYPE A:REFER ILLUST.

 2
89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY
89904-06140

ZRE172..4FC..(LE,S)

STARTING SYSTEM-PUSH(WITH/SMART),TYPE A:REFER ILLUST.

 2

(1308- )MXC ; (1308- )STD..GEN

Click highlighted areas on diagram

W/O(SMART ENTRY)

diagram 69052 69057A 69503 89070E 89071B 89072A 8907A 89745A 89751A 89752A
Part # Description Qty Price
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-02270

ZRE172..4FC

 1
69052-02280

ZRE172..4FC..(LE,S)

STARTING SYSTEM-PUSH(WITH/SMART)

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-0R050

ZRE172..4FC

 1
69503 - CYLINDER SET, LOCK
69005-02A30

ZRE172..4FC

 1
89070E - TRANSMITTER ASSY, DOOR CONTROL
89070-02880

ZRE172..4FC

 1
89070-02880

ZRE172..4FC..(LE,S)

STARTING SYSTEM-PUSH(WITH/SMART)

 1
89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-02130

ZRE172..4FC

 2
89071-02130

ZRE172..4FC..(LE,S)

STARTING SYSTEM-PUSH(WITH/SMART)

 2
89072A - HOUSING SET, DOOR CONTROL TRANSMITTER
89072-02560

ZRE172..4FC

 1
89072-02560

ZRE172..4FC..(LE,S)

STARTING SYSTEM-PUSH(WITH/SMART)

 1
8907A - SWITCH SET, TRANSMITTER
8907A-33030

ZRE172..4FC..(LE,S)

STARTING SYSTEM-PUSH(WITH/SMART)

 2
8907A-33030

ZRE172..4FC

 2
89751A - COVER, TRANSMITTER HOUSING
89751-02020

ZRE172..4FC..(LE,S)

STARTING SYSTEM-PUSH(WITH/SMART)

 2
89751-02020

ZRE172..4FC

 2
89752A - CASE, TRANSMITTER HOUSING
89752-0R040

ZRE172..4FC..(LE,S)

STARTING SYSTEM-PUSH(WITH/SMART)

 1
89752-0R040

ZRE172..4FC

 1
