ZRE172L-DEPDKJ (2013)

Toyota Corolla

Production Aug 2013 - Aug 2014
Engine 2ZRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1308- )LE,STD

Click highlighted areas on diagram

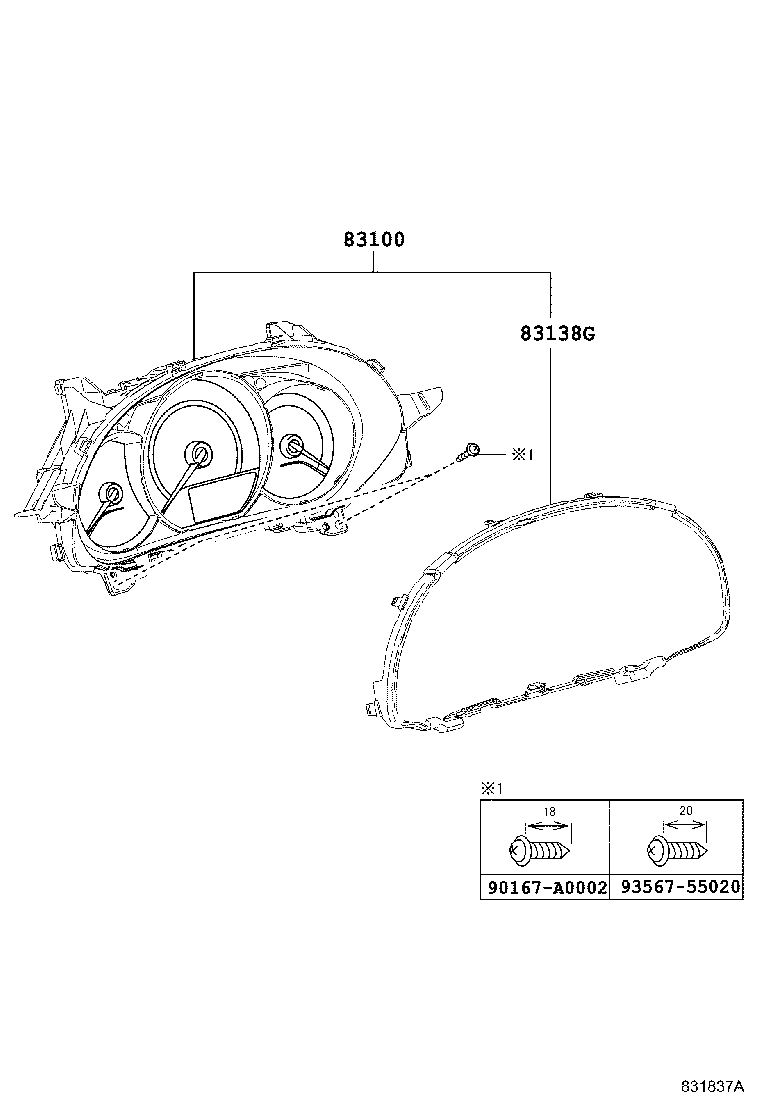

diagram 83100 83138G 90167A0002 9356755020
Part # Description Qty Price
83100 - METER ASSY, COMBINATION
83800-0ZX60

ZRE172..S..MXC

 1
83800-0ZX20

ZRE172..(LE,STD)..MXC

 1
83800-F2A40

ZRE172..STD..MXC

MEXICO DECONTENT

 1
83138G - GLASS, COMBINATION METER
83852-0ZX00

ZRE172..4FC..(LE,STD)

 1
83852-0ZX50

ZRE172..4FC..S

 1
Common parts
90167-A0002
93567-55020

(1308- )S

Click highlighted areas on diagram

diagram 83100 83138G 90167A0002 9356755020
Part # Description Qty Price
83100 - METER ASSY, COMBINATION
83800-0ZX60

ZRE172..S..MXC

 1
83800-0ZX20

ZRE172..(LE,STD)..MXC

 1
83800-F2A40

ZRE172..STD..MXC

MEXICO DECONTENT

 1
83138G - GLASS, COMBINATION METER
83852-0ZX00

ZRE172..4FC..(LE,STD)

 1
83852-0ZX50

ZRE172..4FC..S

 1
Common parts
90167-A0002
93567-55020
