Toyota Corolla ZRE172 HEATING & AIR CONDITIONING - COOLER UNIT

Manufacturers Home
Toyota
GR
COROLLA
ZRE172L-DEFDKJ (2013)
8714 - HEATING & AIR CONDITIONING - COOLER UNIT

ZRE172L-DEFDKJ (2013)

Toyota Corolla

Production Aug 2013 - Aug 2016

Engine 2ZRFE

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(1308- )

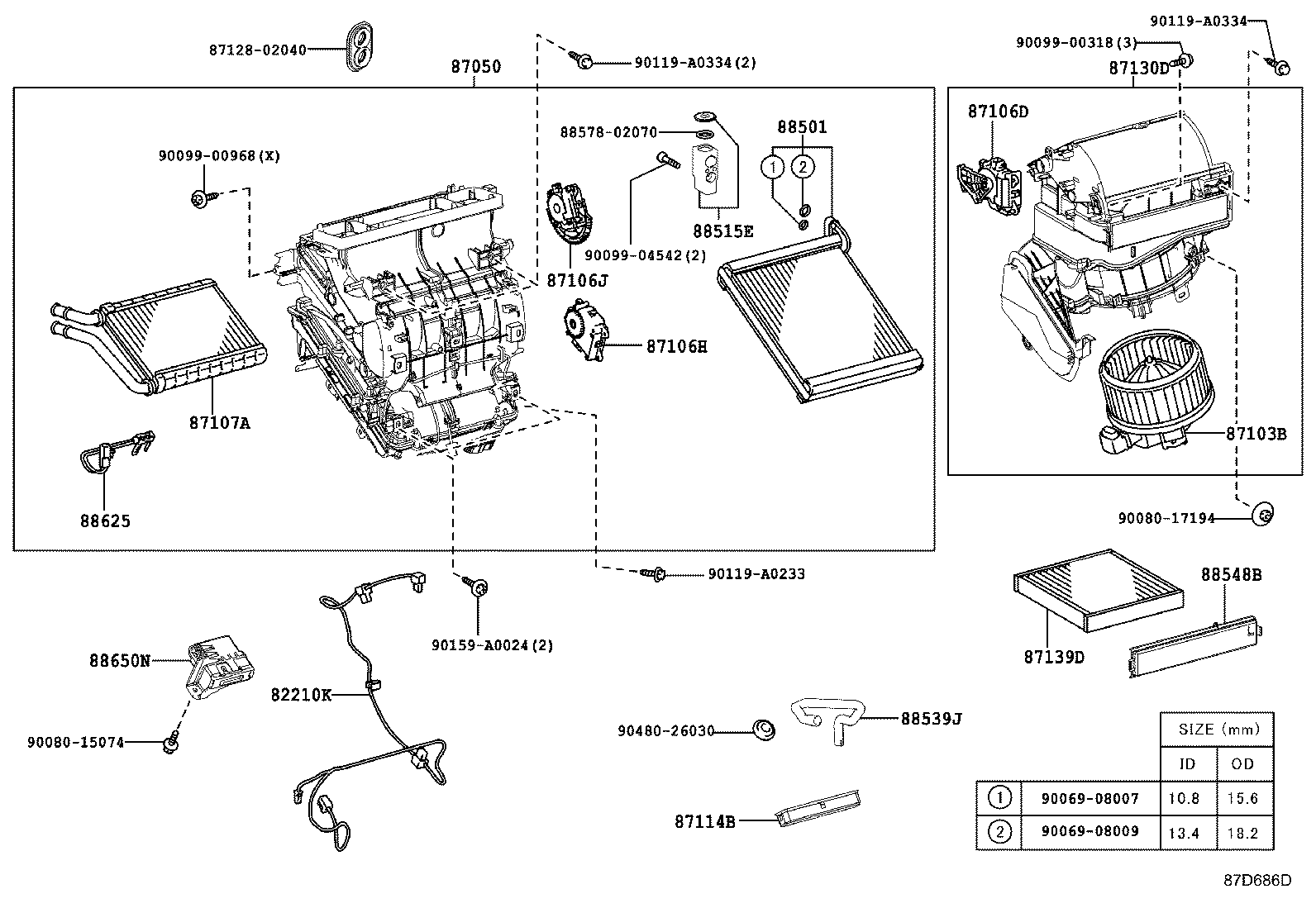

Click highlighted areas on diagram

MANUAL AIR CONDITIONER

Part #	Description	Period	Qty
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-02B70	ZRE172..(CVT,MTM)..S..MXC;ZRE172..(CVT,MTM)..(LE,STD)	08/2013 - 08/2016	1
87050-02B80	ZRE172..(CVT,MTM)..LE;ZRE172..(CVT,MTM)..S..MXC AIR CONDITIONER-AUTO(SINGLE MODE)	08/2013 - 08/2016	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-02200	ZRE172..(CVT,MTM)..S..MXC;ZRE172..(CVT,MTM)..(LE,STD)	08/2013 - 08/2016	1
87103-02210	ZRE172..(CVT,MTM)..LE;ZRE172..(CVT,MTM)..S..MXC AIR CONDITIONER-AUTO(SINGLE MODE)	08/2013 - 08/2016	1
87106D - SERVO SUB-ASSY, DAMPER, NO.1
87106-02220	ZRE172..(CVT,MTM)..LE;ZRE172..(CVT,MTM)..S..MXC AIR CONDITIONER-AUTO(SINGLE MODE)	08/2013 - 08/2016	1
87106-02210	ZRE172..(CVT,MTM)..S..MXC;ZRE172..(CVT,MTM)..(LE,STD)	08/2013 - 08/2016	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-02230	ZRE172..CVT,MTM	08/2013 - 08/2016	1
87114B - COVER, HEATER
87114-02030	ZRE172..CVT,MTM	08/2013 - 08/2016	1
87130D - BLOWER ASSY
87130-02A20	ZRE172..(CVT,MTM)..LE;ZRE172..(CVT,MTM)..S..MXC AIR CONDITIONER-AUTO(SINGLE MODE)	08/2013 - 08/2016	1
87130-02A10	ZRE172..(CVT,MTM)..S..MXC;ZRE172..(CVT,MTM)..(LE,STD)	08/2013 - 08/2016	1
87138C - RESISTOR, BLOWER
87138-02110	ZRE172..(CVT,MTM)..S..MXC;ZRE172..(CVT,MTM)..(LE,STD)	08/2013 - 08/2016	1
87139D - ELEMENT, AIR REFINER
87139-50100	ZRE172..CVT,MTM *DPF	08/2013 - 08/2016	1
87139-07020	ZRE172..CVT,MTM POLLEN FILTER	08/2013 - 08/2016	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-02222	ZRE172..CVT,MTM	08/2013 - 08/2016	1
88515E - VALVE, COOLER EXPANSION, W/PACKING
88515-02420	ZRE172..CVT,MTM	08/2013 - 08/2016	1
88539J - HOSE, DRAIN COOLER
88539-02270	ZRE172..CVT,MTM	08/2013 - 08/2016	1
88548B - CASE, AIR FILTER
88548-02110	ZRE172..CVT,MTM	08/2013 - 08/2016	1
88625 - THERMISTOR, COOLER, NO.1
88625-02120	ZRE172..CVT,MTM	08/2013 - 08/2016	1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-02B30	ZRE172..LE;ZRE172..S..MXC AIR CONDITIONER-AUTO(SINGLE MODE)	08/2013 - 07/2014	1
88650-02B10	ZRE172..LE,STD;ZRE172..S..MXC	08/2013 - 07/2014	1
88650-02B31	ZRE172..LE;ZRE172..S..MXC AIR CONDITIONER-AUTO(SINGLE MODE)	08/2014 - 08/2016	1
88650-02B11	ZRE172..LE,STD;ZRE172..S..MXC	08/2014 - 08/2016	1
Common parts
87128-02040
88578-02070
90069-08007
90069-08009
90080-15074
90080-17194
90099-00318
90099-00968
90099-04542
90119-A0233
90119-A0334
90159-A0024
90480-26030
Linked diagrams
8715

(1308- )LE..HTWC ; (1308- )ATM,CVT..S ; (1308- )6F..S..HTWC

Click highlighted areas on diagram

AUTO AIR CONDITIONER

Part #	Description	Period	Qty
82210K - HARNESS ASSY, AIR CONDITIONER
82212-02040	ZRE172..LE;ZRE172..S..MXC AIR CONDITIONER-AUTO(SINGLE MODE)	08/2013 - 08/2016	1
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-02B70	ZRE172..(CVT,MTM)..S..MXC;ZRE172..(CVT,MTM)..(LE,STD)	08/2013 - 08/2016	1
87050-02B80	ZRE172..(CVT,MTM)..LE;ZRE172..(CVT,MTM)..S..MXC AIR CONDITIONER-AUTO(SINGLE MODE)	08/2013 - 08/2016	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-02200	ZRE172..(CVT,MTM)..S..MXC;ZRE172..(CVT,MTM)..(LE,STD)	08/2013 - 08/2016	1
87103-02210	ZRE172..(CVT,MTM)..LE;ZRE172..(CVT,MTM)..S..MXC AIR CONDITIONER-AUTO(SINGLE MODE)	08/2013 - 08/2016	1
87106D - SERVO SUB-ASSY, DAMPER, NO.1
87106-02220	ZRE172..(CVT,MTM)..LE;ZRE172..(CVT,MTM)..S..MXC AIR CONDITIONER-AUTO(SINGLE MODE)	08/2013 - 08/2016	1
87106-02210	ZRE172..(CVT,MTM)..S..MXC;ZRE172..(CVT,MTM)..(LE,STD)	08/2013 - 08/2016	1
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-02190	ZRE172..(CVT,MTM)..LE;ZRE172..(CVT,MTM)..S..MXC AIR CONDITIONER-AUTO(SINGLE MODE)	08/2013 - 08/2016	1
87106J - SERVO SUB-ASSY, DAMPER(FOR MODE)
87106-02200	ZRE172..(CVT,MTM)..LE;ZRE172..(CVT,MTM)..S..MXC AIR CONDITIONER-AUTO(SINGLE MODE)	08/2013 - 08/2016	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-02230	ZRE172..CVT,MTM	08/2013 - 08/2016	1
87114B - COVER, HEATER
87114-02030	ZRE172..CVT,MTM	08/2013 - 08/2016	1
87130D - BLOWER ASSY
87130-02A20	ZRE172..(CVT,MTM)..LE;ZRE172..(CVT,MTM)..S..MXC AIR CONDITIONER-AUTO(SINGLE MODE)	08/2013 - 08/2016	1
87130-02A10	ZRE172..(CVT,MTM)..S..MXC;ZRE172..(CVT,MTM)..(LE,STD)	08/2013 - 08/2016	1
87139D - ELEMENT, AIR REFINER
87139-50100	ZRE172..CVT,MTM *DPF	08/2013 - 08/2016	1
87139-07020	ZRE172..CVT,MTM POLLEN FILTER	08/2013 - 08/2016	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-02222	ZRE172..CVT,MTM	08/2013 - 08/2016	1
88515E - VALVE, COOLER EXPANSION, W/PACKING
88515-02420	ZRE172..CVT,MTM	08/2013 - 08/2016	1
88539J - HOSE, DRAIN COOLER
88539-02270	ZRE172..CVT,MTM	08/2013 - 08/2016	1
88548B - CASE, AIR FILTER
88548-02110	ZRE172..CVT,MTM	08/2013 - 08/2016	1
88625 - THERMISTOR, COOLER, NO.1
88625-02120	ZRE172..CVT,MTM	08/2013 - 08/2016	1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-02B30	ZRE172..LE;ZRE172..S..MXC AIR CONDITIONER-AUTO(SINGLE MODE)	08/2013 - 07/2014	1
88650-02B10	ZRE172..LE,STD;ZRE172..S..MXC	08/2013 - 07/2014	1
88650-02B31	ZRE172..LE;ZRE172..S..MXC AIR CONDITIONER-AUTO(SINGLE MODE)	08/2014 - 08/2016	1
88650-02B11	ZRE172..LE,STD;ZRE172..S..MXC	08/2014 - 08/2016	1
Common parts
87128-02040
88578-02070
90069-08007
90069-08009
90080-15074
90080-17194
90099-00318
90099-00968
90099-04542
90119-A0233
90119-A0334
90159-A0024
90480-26030

ZRE172L-DEFDKJ (2013)

(1308- )

(1308- )LE..HTWC ; (1308- )ATM,CVT..S ; (1308- )6F..S..HTWC
