TE72R-ELPESN (1982)

Toyota Corolla

Production Apr 1982 - Jan 1984
Engine 3T
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7908-8401)TE7#..ATM

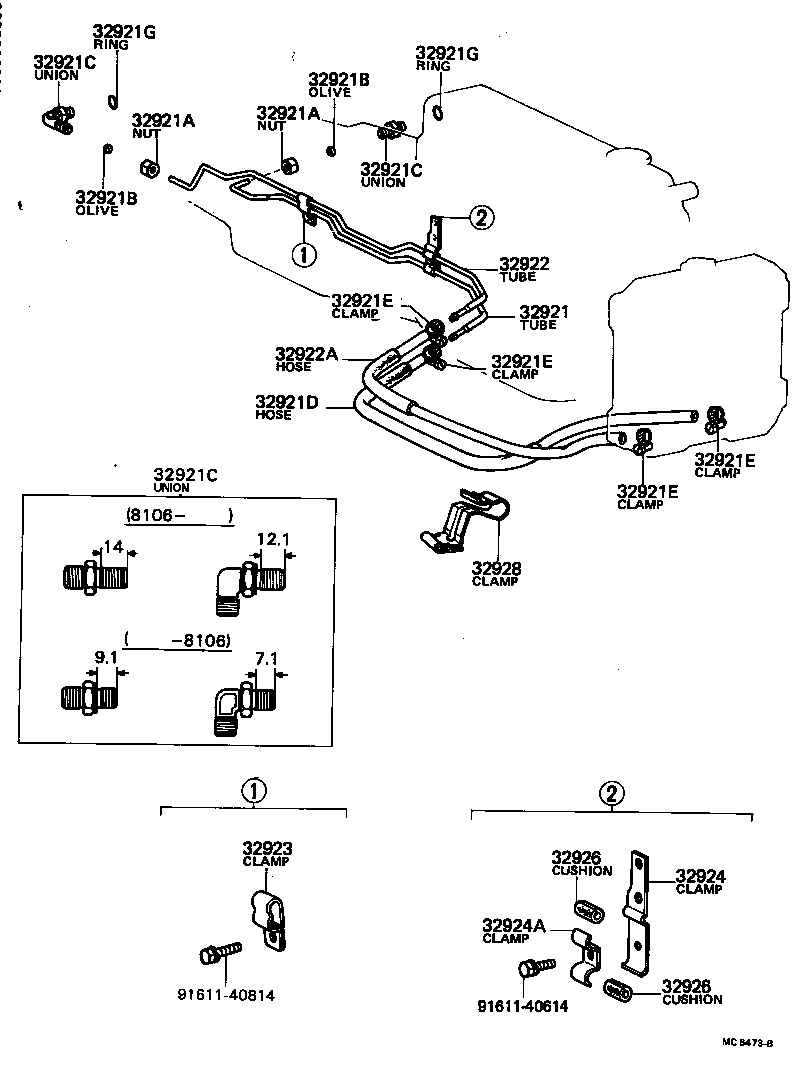

Click highlighted areas on diagram

diagram 32921 32921A 32921A 32921B 32921B 32921C 32921C 32921C 32921D 32921E 32921E 32921E 32921E 32921G 32921G 32922 32922A 32923 32924 32924A 32926 32926 32928 9161140614 9161140814
Part # Description Qty Price
32921 - TUBE, OIL COOLER INLET, NO.1
32921-12150

TE72..4FC

 1
32921A - NUT, UNION(FOR OIL COOLER TUBE)
90402-13041

KE70,TE7#..ATM..(EUR,GEN,SA)

 2
32921A - NUT, UNION(FOR OIL COOLER TUBE)
90402-13041

KE70,TE7#..ATM..(EUR,GEN,SA)

 2
32921B - OLIVE(FOR OIL COOLER TUBE)
96395-71400

KE70,TE7#..ATM..(EUR,GEN,SA)

 2
32921B - OLIVE(FOR OIL COOLER TUBE)
96395-71400

KE70,TE7#..ATM..(EUR,GEN,SA)

 2
32921D - HOSE(FOR OIL COOLER INLET)
32941-12041

TE7#..ATM

 1
32921E - CLAMP, HOSE(FOR OIL COOLER)
90460-14085

KE70,TE7#..ATM..(EUR,GEN,SA)

 4
32921E - CLAMP, HOSE(FOR OIL COOLER)
90460-14085

KE70,TE7#..ATM..(EUR,GEN,SA)

 4
32921E - CLAMP, HOSE(FOR OIL COOLER)
90460-14085

KE70,TE7#..ATM..(EUR,GEN,SA)

 4
32921E - CLAMP, HOSE(FOR OIL COOLER)
90460-14085

KE70,TE7#..ATM..(EUR,GEN,SA)

 4
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-12140

TE72..4FC

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
32942-12070

TE7#..ATM

 1
32942-12021

TE7#..ATM

 1
32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
90461-08039

TE7#..ATM

 1
32924 - CLAMP, OIL COOLER TUBE, NO.2
32924-14010

TE7#..ATM

 1
32924A - CLAMP(FOR OIL COOLER TUBE, NO.2)
90462-12085

TE7#..ATM

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30011

AE71,KE70,TE7#..ATM

L=25,ID=8

 4
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30011

AE71,KE70,TE7#..ATM

L=25,ID=8

 4
32928 - CLAMP, FLEXIBLE HOSE, NO.1
90463-06600

KE70,TE7#..ATM

 1
Common parts
91611-40614
91611-40814
