TE72R-EEMNSN (1982)
Toyota Corolla
(8204-8404)TE72..SA

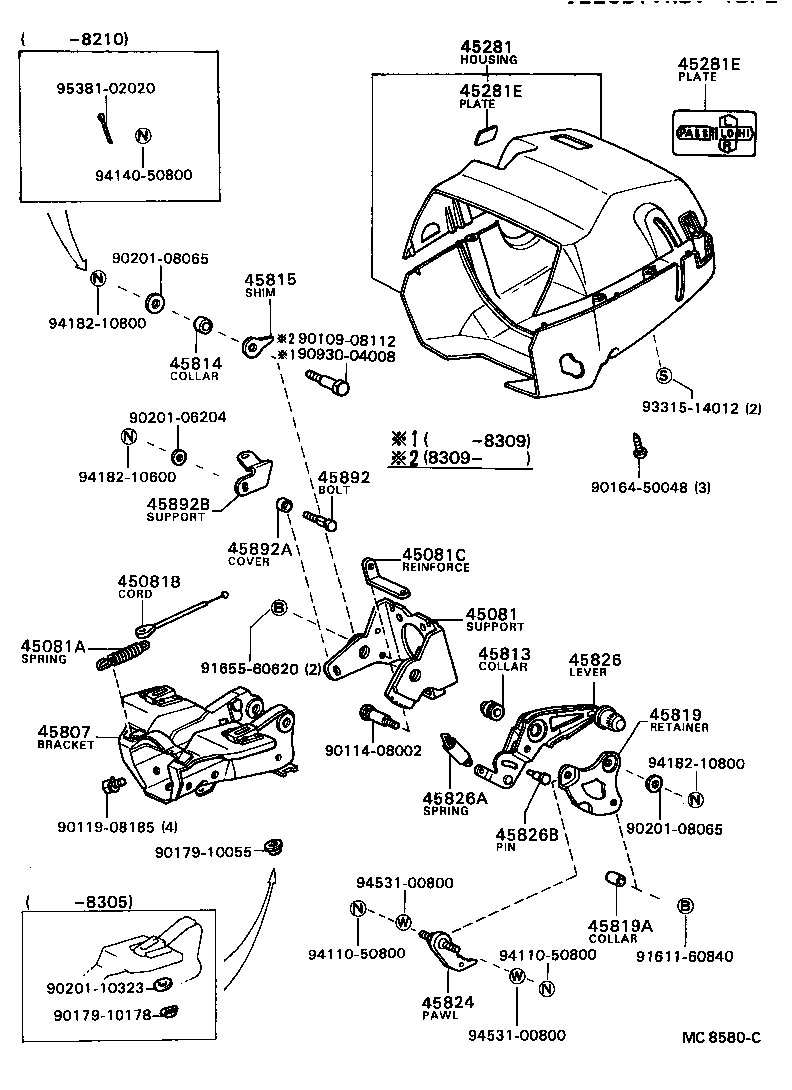

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45081 - SUPPORT SUB-ASSY, TILT STEERING | ||||
| 45081-22020 |
TE72..(GL,SE,XE)..(EUR,SA) |
1 | ||
| 45081A - SPRING, TENSION(FOR TILT STEERING) | ||||
| 90506-23009 |
TE72..(GL,SE,XE)..(EUR,SA) |
2 | ||
| 45081B - CORD(FOR TILT STEERING) | ||||
| 90945-02034 |
TE72..(GL,SE,XE)..(EUR,SA) L=107.5 |
2 | ||
| 45081C - REINFORCE, TILT STEERING SUPPORT | ||||
| 45821-22010 |
TE72..(GL,SE,XE)..(EUR,SA) |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-1208001 |
KE70,TE7#..RHD..(ARL,GEN,SA) LWR,BLACK,BLACK,TRIM0#,2#,4#,8# |
1 | ||
| 45287-1208004 |
KE70,TE7#..RHD..(DX,SE,SR,XE,XL)..(ARL,GEN,SA) LWR,BLUE,BLUE,TRIM8# |
1 | ||
| 45286-1292606 |
TE72..(GL,SE,XE)..(EUR,SA) DARK BROWN,W/TILT STEERING,BROWN,TRIM4# |
1 | ||
| 45286-1292601 |
TE72..(GL,SE,XE)..(EUR,SA) BLACK,W/TICT STEERING,BLACK,TRIM0#,2#,4#,8# |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 45807-12090 |
TE7#..RHD..(ARL,GEN,SA) W/COLLAPSIBLE STEERING(MESH) |
1 | ||
| 45082-12010 |
TE72..(GL,SE,XE)..(EUR,SA) W/TILT STEERING |
1 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-22010 |
TE72..(GL,SE,XE)..(EUR,SA) OD=17.996-18.003,D=17.996-18.003 |
1 | ||
| 45813-22020 |
TE72..(GL,SE,XE)..(EUR,SA) OD=18.003-18.010,D=18.003-18.010 |
1 | ||
| 45813-22040 |
TE72..(GL,SE,XE)..(EUR,SA) OD=18.017-18.024,D=18.017-18.024 |
1 | ||
| 45813-22030 |
TE72..(GL,SE,XE)..(EUR,SA) OD=18.010-18.017,D=18.010-18.017 |
1 | ||
| 45813-22050 |
TE72..(GL,SE,XE)..(EUR,SA) OD=17.989-17.996,D=17.989-17.996 |
1 | ||
| 45814 - COLLAR, TILT STEERING SUPPORT, NO.2 | ||||
| 45814-22020 |
TE72..(GL,SE,XE)..(EUR,SA) OD=18.000-18.018,D=18.000-18.018 |
1 | ||
| 45814-22010 |
TE72..(GL,SE,XE)..(EUR,SA) OD=17.982-18.000,D=17.982-18.000 |
1 | ||
| 45815 - SHIM, TILT STEERING SUPPORT | ||||
| 45815-22090 |
TE72..(GL,SE,XE)..(EUR,SA) T=1.4,T=1.4 |
2 | ||
| 45815-22060 |
TE72..(GL,SE,XE)..(EUR,SA) T=0.2,T=0.2 |
2 | ||
| 45815-22080 |
TE72..(GL,SE,XE)..(EUR,SA) T=0.8,T=0.8 |
2 | ||
| 45815-22100 |
TE72..(GL,SE,XE)..(EUR,SA) T=1.8,T=1.8 |
2 | ||
| 45815-22070 |
TE72..(GL,SE,XE)..(EUR,SA) T=0.5,T=0.5 |
2 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-22011 |
TE72..(GL,SE,XE)..(EUR,SA) |
1 | ||
| 45819A - COLLAR(FOR TILT LEVER RETAINER) | ||||
| 90387-08002 |
TE72..(GL,SE,XE)..(EUR,SA) |
1 | ||
| 45824 - PAWL, TILT STEERING | ||||
| 45890-22050 |
TE72..(GL,SE,XE)..(EUR,SA) |
1 | ||
| 45826 - LEVER, STEERING TILT | ||||
| 45804-22010 |
TE72..(GL,SE,XE)..(EUR,SA) |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-14001 |
TE72..(GL,SE,XE)..(EUR,SA) |
1 | ||
| 45826B - PIN(FOR STEERING TILT LEVER) | ||||
| 72538-12010 |
TE72..(GL,SE,XE)..(EUR,SA) |
1 | ||
| 45892 - BOLT, TILT STEERING SUPPORT STOPPER | ||||
| 45898-22010 |
TE72..(GL,SE,XE)..(EUR,SA) |
1 | ||
| 45892A - COVER, TILT STEERING SUPPORT STOPPER | ||||
| 45899-22020 |
TE72..(GL,SE,XE)..(EUR,SA) |
1 | ||
| 45892B - SUPPORT, TILT STEERING COLUMN COVER | ||||
| 45289-12010 |
TE72..(GL,SE,XE)..(EUR,SA) |
1 | ||
| Common parts | ||||
| 90109-08112 | ||||
| 90114-08002 | ||||
| 90119-08185 | ||||
| 90164-50048 | ||||
| 90179-10055 | ||||
| 90179-10178 | ||||
| 90201-06204 | ||||
| 90201-08065 | ||||
| 90201-10323 | ||||
| 90930-04008 | ||||
| 91611-60840 | ||||
| 91655-60620 | ||||
| 93315-14012 | ||||
| 94110-50800 | ||||
| 94140-50800 | ||||
| 94182-10600 | ||||
| 94182-10800 | ||||
| 94531-00800 | ||||
| 95381-02020 | ||||
(8204-8404)TE72..SA

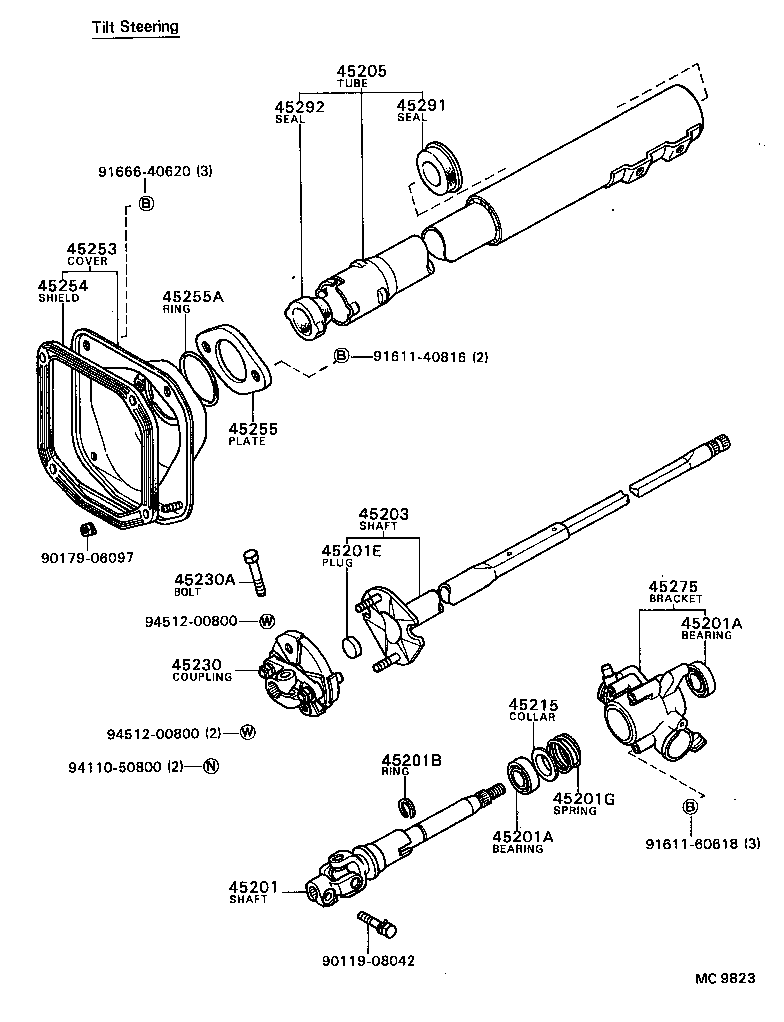

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45201-12120 |
TE7#..4D W/RIGID STEERING |
1 | ||
| 45210-12070 |
TE7#;KE70..(DV,WG)..(GEN,SAA) W/COLLAPSIBLE STEERING |
1 | ||
| 45210-22050 |
TE72..(GL,SE,XE)..(EUR,SA) W/TILT STEERING |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
KE70,TE7# UPR |
1 | ||
| 90363-18001 |
TE72..(GL,SE,XE)..(EUR,SA) UPR |
1 | ||
| 90363-28001 |
TE72..(GL,SE,XE)..(EUR,SA) LWR |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
KE70,TE7# UPR |
1 | ||
| 90363-18001 |
TE72..(GL,SE,XE)..(EUR,SA) UPR |
1 | ||
| 90363-28001 |
TE72..(GL,SE,XE)..(EUR,SA) LWR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17196 |
KE70,TE7# T=1.35-1.45,T=1.4 |
2 | ||
| 90520-17042 |
AE71,CE70,KE70,TE7# T=1.20,T=1.2 |
2 | ||
| 45201E - PLUG, PLATE(FOR STEERING MAIN SHAFT) | ||||
| 90333-21008 |
CE70,TE7#;KE70..(DV,WG)..4F..(GEN,SA,SAA) W/COLLAPSIBLE STEERING |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-45011 |
TE72..(GL,SE,XE)..(EUR,SA) |
1 | ||
| 45203 - SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45220-12050 |
TE72..(GL,SE,XE)..(EUR,SA) |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45870-12100 |
TE7#..RHD..(ARL,GEN,SA) W/COLLAPSIBLE STEERING(MESH) |
1 | ||
| 45205-12090 |
TE7#..4D W/RIGID STEERING,L=555.6 |
1 | ||
| 45870-12110 |
TE72..(GL,SE,XE)..(EUR,SA) W/TILT STEERING |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-22011 |
TE72..(GL,SE,XE)..(EUR,SA) |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-14020 |
CE70,TE7#;KE70..(DV,WG)..4F..(GEN,SA,SAA) |
1 | ||
| 45230A - BOLT, HEXAGON(FOR STEERING FLEXIBLE COPLING SET) | ||||
| 90101-08047 |
CE70,TE7#;KE70..(DV,WG)..(GEN,SAA) |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-12030 |
TE7#..RHD |
1 | ||
| 45025-12040 |
TE72..(GL,SE,XE)..(EUR,SA) W/TILT STEERING |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-12020 |
CE70,TE7#..RHD |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-12020 |
CE70,TE7#;KE70..(DV,WG)..4F..(GEN,SA,SAA) |
1 | ||
| 45255A - GROMMET OR RING, O(FOR STEERING COLUMN CLAMP) | ||||
| 90301-45202 |
CE70,TE7#;KE70..(DV,WG)..4F..(GEN,SA,SAA) |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45020-12130 |
KE70,TE7#..RHD |
1 | ||
| 45280-12020 |
TE72..(GL,SE,XE)..(EUR,SA) |
1 | ||
| 45280-12021 |
TE72..(4FC,5F)..(EUR,SA) |
1 | ||
| 45291 - SEAL, MAIN SHAFT UPPER DUST | ||||
| 45282-22010 |
TE72..(GL,SE,XE)..(EUR,SA) |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-20020 |
TE7#..4D W/RIGID STEERING |
1 | ||
| 45292-12040 |
TE7#..RHD..(ARL,GEN,SA) W/COLLAPSIBLE STEERING(MESH) |
1 | ||
| 45292-22050 |
TE72..(GL,SE,XE)..(EUR,SA) W/TILT STEERING |
1 | ||
| Common parts | ||||
| 90119-08042 | ||||
| 90179-06097 | ||||
| 91611-40816 | ||||
| 91611-60618 | ||||
| 91666-40620 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||
