TE72L-ELMECC (1982)

Toyota Corolla

Production Aug 1982 - May 1983
Engine 3TC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7908-8502)TE7#..DX,GL,SE,SR,STD,XE

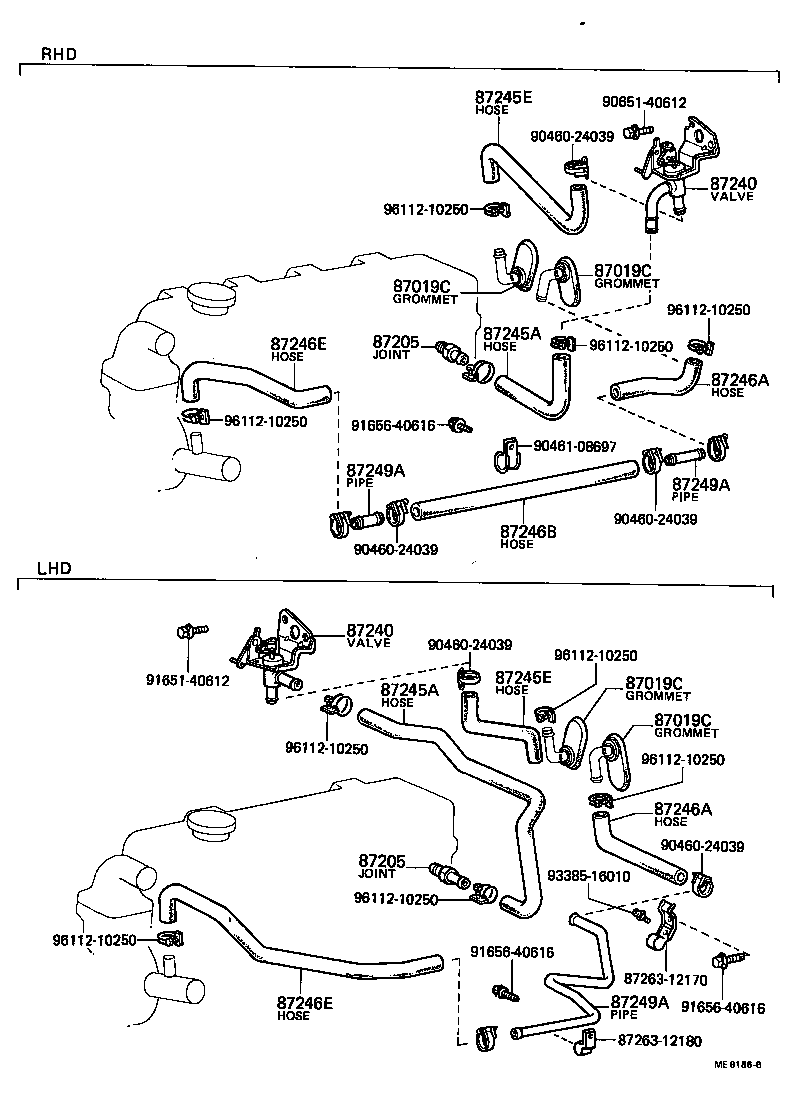

Click highlighted areas on diagram

diagram 87019C 87019C 87019C 87019C 87205 87205 87240 87240 87245A 87245A 87245E 87245E 87246A 87246A 87246B 87246E 87246E 87249A 87249A 87249A 8726312170 8726312180 9046024039 9046024039 9046024039 9046024039 9046024039 9046108697 9065140612 9165140612 9165640616 9165640616 9165640616 9338516010 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-01015

AE71,CE70,KE70,TE7#

 2
87019C - GROMMET, HEATER HOSE
90480-01015

AE71,CE70,KE70,TE7#

 2
87019C - GROMMET, HEATER HOSE
90480-01015

AE71,CE70,KE70,TE7#

 2
87019C - GROMMET, HEATER HOSE
90480-01015

AE71,CE70,KE70,TE7#

 2
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-14010

TE7#..DX,GL,SE,SR,STD,XE

 1
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-14010

TE7#..DX,GL,SE,SR,STD,XE

 1
87245A - HOSE, HEATER WATER, INLET A
87245-12500

TE7#..LHD..(DX,SE,SR,STD,XE)

 1
87245A - HOSE, HEATER WATER, INLET A
87245-12500

TE7#..LHD..(DX,SE,SR,STD,XE)

 1
87245E - HOSE, HEATER WATER, INLET E
87245-12490

CE70,KE70,TE7#..LHD

 1
87245E - HOSE, HEATER WATER, INLET E
87245-12490

CE70,KE70,TE7#..LHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-12520

CE70,KE70,TE7#..LHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-12520

CE70,KE70,TE7#..LHD

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-12530

TE7#..LHD..(DX,SE,SR,STD,XE)

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-12530

TE7#..LHD..(DX,SE,SR,STD,XE)

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-12200

CE70,TE7#..LHD

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-12200

CE70,TE7#..LHD

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-12200

CE70,TE7#..LHD

 1
Common parts
87263-12170
87263-12180
90460-24039
90461-08697
90651-40612
91651-40612
91656-40616
93385-16010
96112-10250
