TE72L-ELMECC (1982)

Toyota Corolla

Production Aug 1982 - May 1983
Engine 3TC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7908-8502)2T,2TB,3T#

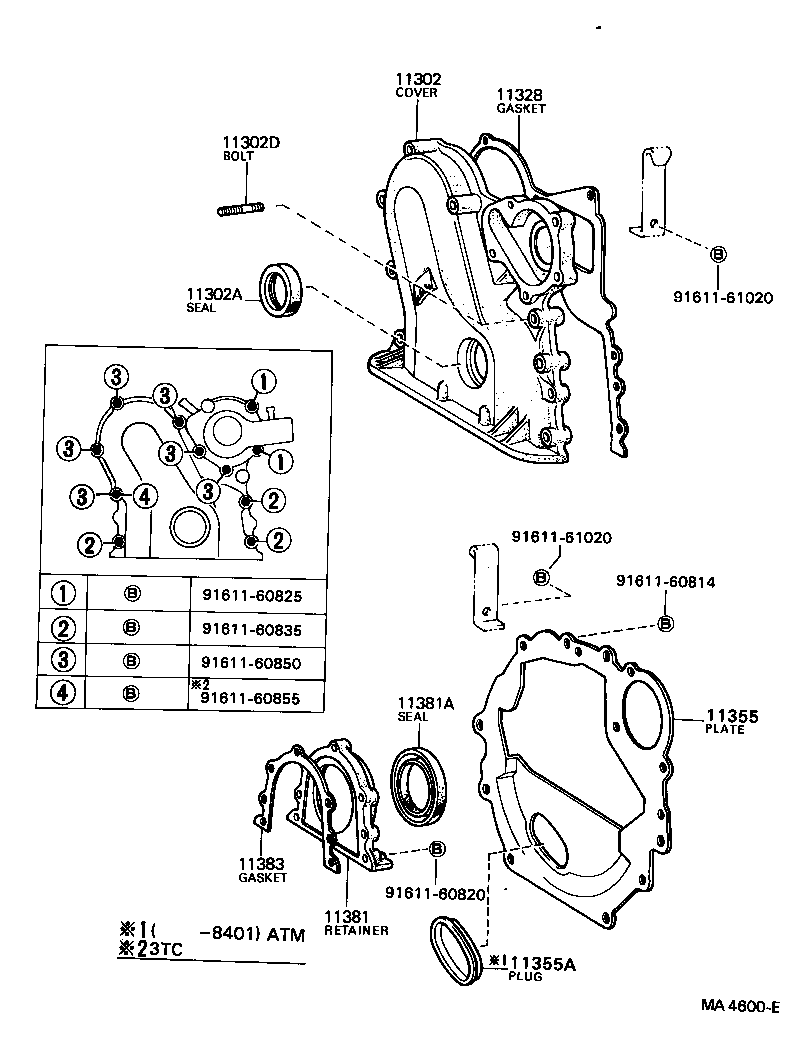

Click highlighted areas on diagram

diagram 11302 11302A 11302D 11328 11355 11355A 11381 11381A 11383 9161160814 9161160820 9161160825 9161160835 9161160850 9161160855 9161161020 9161161020
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-28010

2T,2TB,3TC..TE7#..ARL,EUR,GEN

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-38013

2T#,3T#..TE7#

HTC 38.5 58 11

 1
11302D - BOLT, STUD(FOR TIMING GEAR COVER)
90116-08057

2T,2TB,3T#..TE7#

L=28,S=13&13

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-25011

2T,2TB,3T#..TE7#

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-25010

2T#,3T#..TE7#

 1
11381A - SEAL, ENGINE REAR OIL
90311-75113

2T#,3T#..TE7#

HTC 75 100 13

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-25010

2T#,3T#..TE7#

 1
Common parts
91611-60814
91611-60820
91611-60825
91611-60835
91611-60850
91611-60855
91611-61020
