TE72L-ELKDCC (1979)

Toyota Corolla

Production Aug 1979 - Aug 1980
Engine 3TC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7908-8406)LB

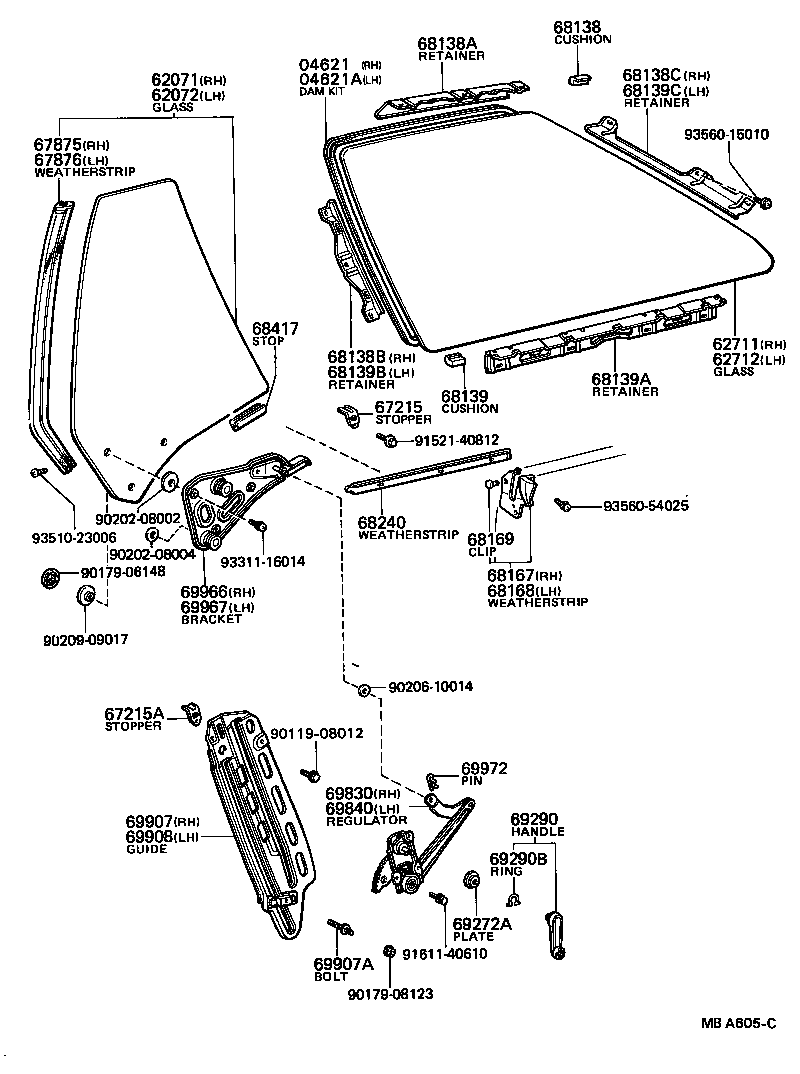

Click highlighted areas on diagram

diagram 04621 04621A 62071 62072 62711 62712 67215 67215A 67875 67876 68138 68138A 68138B 68138C 68139 68139A 68139B 68139C 68167 68168 68169 68240 68417 69272A 69290 69290B 69830 69840 69907 69907A 69908 69966 69967 69972 9011908012 9017906148 9017908123 9020208002 9020208004 9020610014 9020909017 9152140812 9161140610 9331116014 9351023006 9356015010 9356054025
Part # Description Qty Price
04621 - DAM KIT, QUARTER WINDOW, RH
04681-12010

KE70,TE7#..CP,LB

 1
04621A - DAM KIT, QUARTER WINDOW, LH
04681-12010

KE70,TE7#..CP,LB

 1
62071 - GLASS SUB-ASSY, QUARTER, RH
62071-12130

KE70,TE7#..LB..(ARL,EUR,GEN)

*TT,T=4.0

 1
62072 - GLASS SUB-ASSY, QUARTER, LH
62072-12130

KE70,TE7#..LB..(ARL,EUR,GEN)

*TT,T=4.0

 1
62711 - GLASS, QUARTER WINDOW, RH
68133-12040

KE70,TE7#..LB..(ARL,EUR,GEN)

*TT,T=4.0

 1
62712 - GLASS, QUARTER WINDOW, LH
68134-12040

KE70,TE7#..LB..(ARL,EUR,GEN)

*TT,T=4.0

 1
67215 - STOPPER, QUARTER WINDOW, UPPER FRONT
67215-95500

KE70,TE7#..LB

 2
67215A - STOPPER, QUARTER WINDOW, UPPER
67215-12030

KE70,TE7#..LB

 2
67875 - WEATHERSTRIP, REAR QUARTER WINDOW GLASS, RH
67081-12020

KE70,TE7#..LB

 1
67876 - WEATHERSTRIP, REAR QUARTER WINDOW GLASS, LH
67082-12020

KE70,TE7#..LB

 1
68138 - CUSHION, QUARTER WINDOW, NO.2 UPPER
68138-12020

KE70,TE7#..CP,LB

 6
68138A - RETAINER, QUARTER WINDOW, NO.2 UPPER
68144-12030

KE70,TE7#..LB

 2
68138B - RETAINER, QUARTER WINDOW, NO.2 FRONT RH
62761-12010

KE70,TE7#..LB

 1
68138C - RETAINER, QUARTER WINDOW, NO.2 REAR RH
62767-12020

KE70,TE7#..LB

 1
68139 - CUSHION, QUARTER WINDOW, NO.2 LOWER
68139-12030

KE70,TE7#..CP,LB

 4
68139A - RETAINER, QUARTER WINDOW, NO.2 LOWER
68185-12020

KE70,TE7#..LB

LH

 1
68145-12020

KE70,TE7#..LB

RH

 1
68139B - RETAINER, QUARTER WINDOW, NO.2 FRONT LH
62761-12010

KE70,TE7#..LB

 1
68139C - RETAINER, QUARTER WINDOW, NO.2 REAR LH
62768-12020

KE70,TE7#..LB

 1
68167 - WEATHERSTRIP, REAR QUARTER FRONT CORNER, RH
67941-12021

KE70,TE7#..LB

 1
68168 - WEATHERSTRIP, REAR QUARTER FRONT CORNER, LH
67942-12021

KE70,TE7#..LB

 1
68169 - CLIP, CORNER WEATHERSTRIP
67869-30020

KE70,TE7#..LB

 4
68240 - WEATHERSTRIP ASSY, QUARTER GLASS, INNER
68190-12090

KE70,TE7#..LB

RH

 1
68240-12040

KE70,TE7#..LB

LH

 1
68417 - STOPPER, REAR QUARTER GLASS, LOWER
67218-12010

KE70,TE7#..LB

 2
69272A - PLATE, DOOR WINDOW REGULATOR HANDLE
69285-22010

KE70,TE7#..LB

 2
69290 - HANDLE ASSY, QUARTER WINDOW REGULATOR
69260-1205001

KE70,TE7#..LB..(ARL,EUR,GEN)

KOJIMA,BLACK,BLACK,TRIM0#,2#

 2
69260-2005004

KE70,TE7#..LB..(ARL,EUR,GEN)

AISIN,BLUE,BLUE,TRIM8#

 2
69260-2005001

KE70,TE7#..LB..(ARL,EUR,GEN)

AISIN,BLACK,BLACK,TRIM0#,2#

 2
69260-1205005

KE70,TE7#..LB

KOJIMA,BEIGE,BEIGE,TRIM4#

 2
69260-1205004

KE70,TE7#..LB..(ARL,EUR,GEN)

KOJIMA,BLUE,BLUE,TRIM8#

 2
69260-2005005

KE70,TE7#..LB

AISIN,BEIGE,BEIGE,TRIM4#

 2
69290B - RING, SNAP(FOR QUARTER WINDOW REGULATOR HANDLE)
90520-01274

KE70,TE7#..LB

 2
69830 - REGULATOR ASSY, REAR QUARTER WINDOW, RH
69803-12040

KE70,TE7#..LB

 1
69840 - REGULATOR ASSY, REAR QUARTER WINDOW, LH
69804-12040

KE70,TE7#..LB

 1
69907 - GUIDE SUB-ASSY, QUARTER REGULATOR ROLLER, RH
67405-12030

KE70,TE7#..LB

 1
69907A - BOLT, STUD, NO.1(FOR QUARTER REGULATOR ROLLER GUIDE)
90116-08076

KE70,TE7#..LB

 2
69908 - GUIDE SUB-ASSY, QUARTER REGULATOR ROLLER, LH
67406-12030

KE70,TE7#..LB

 1
69966 - BRACKET, REAR QUARTER WINDOW GLASS, RH
69905-12060

KE70,TE7#..LB

 1
69967 - BRACKET, REAR QUARTER WINDOW GLASS, LH
69906-12050

KE70,TE7#..LB

 1
69972 - PIN, QUARTER GLASS CHANNEL SETTING
69972-30010

KE70,TE7#..LB

 2
Common parts
90119-08012
90179-06148
90179-08123
90202-08002
90202-08004
90206-10014
90209-09017
91521-40812
91611-40610
93311-16014
93510-23006
93560-15010
93560-54025
