TE72L-ELKDCC (1979)

Toyota Corolla

Production Aug 1979 - Aug 1980
Engine 3TC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7908- )GT..GEN ; (7908- )CE70,TE7#..ARL,EUR ; (8007- )SA

Click highlighted areas on diagram

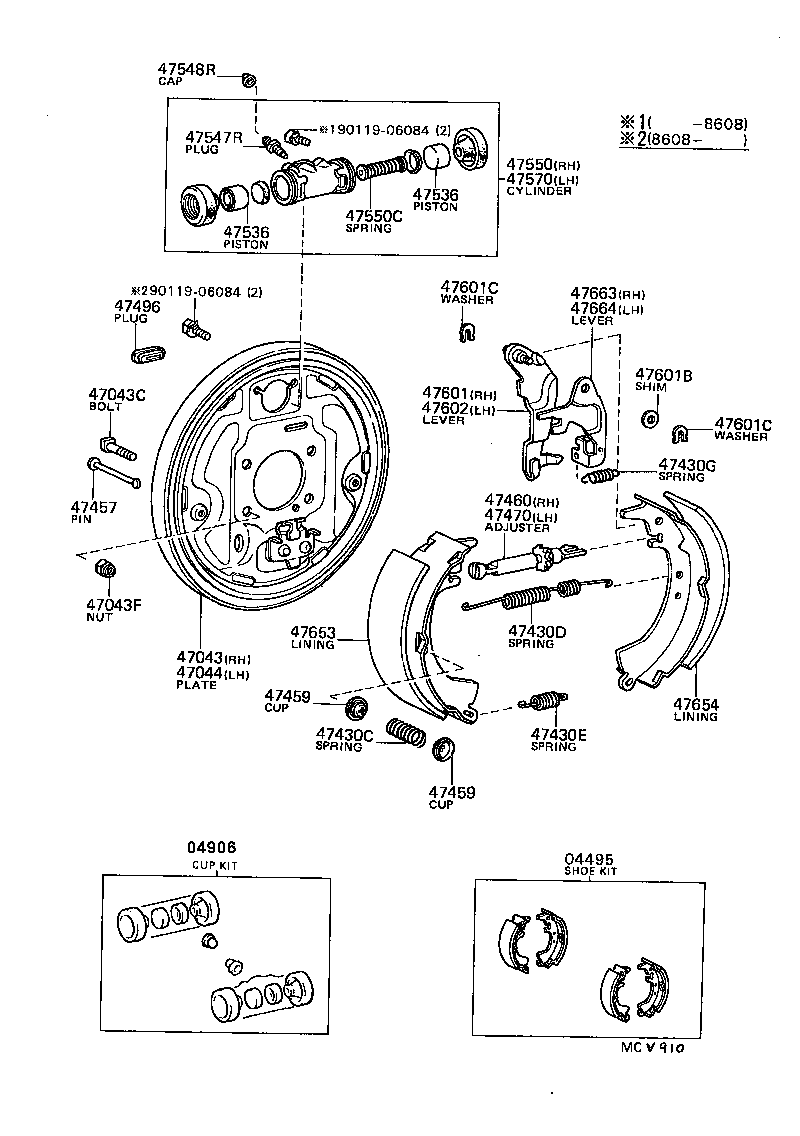

diagram 04495 04906 47043 47043C 47043F 47044 47430C 47430D 47430E 47430G 47457 47459 47459 47460 47470 47496 47536 47536 47547R 47548R 47550 47550C 47570 47601 47601B 47601C 47601C 47602 47653 47654 47663 47664 9011906084 9011906084
Part # Description Qty Price
04495 - SHOE KIT, REAR BRAKE
04495-14010

TE71..GT..GEN;CE70,TE71..EUG;TE72..(DX,SE)..(ARL,EUR)

 1
47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH
47043-20050

TE71..GT;TE72..ARL,EUR

 1
47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
42184-22011

TE71..GT;TE71..DV,WG;TE72..ARL,EUR

*10-1.25PX37-15

 8
47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
94181-11000

CE70,KE70,TE7#

 8
47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH
47044-20050

TE71..GT;TE72..ARL,EUR

 1
47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN)
90501-18017

TE71..GT..GEN;CE70,TE71..EUG;TE72..(DX,SE)..(ARL,EUR)

 4
47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
90506-23375

TE71..GT..GEN;CE70,TE71..EUG;TE72..(DX,SE)..(ARL,EUR)

 2
47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
90506-23346

TE71..GT..GEN;CE70,TE71..EUG;TE72..(DX,SE)..(ARL,EUR)

 2
47430G - SPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)
90506-12011

TE71..GT..GEN;CE70,TE71..EUG;TE72..(DX,SE)..(ARL,EUR)

 2
47457 - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47447-20030

TE71..GT..GEN;CE70,TE71..EUG;TE72..(DX,SE)..(ARL,EUR)

 4
47459 - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47449-30020

TE71..GT..GEN;CE70,TE71..EUG;TE72..(DX,SE)..(ARL,EUR)

 8
47459 - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47449-30020

TE71..GT..GEN;CE70,TE71..EUG;TE72..(DX,SE)..(ARL,EUR)

 8
47460 - ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)
47061-14021

TE71..GT..GEN;CE70,TE71..EUG;TE72..(DX,SE)..(ARL,EUR)

 1
47470 - ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)
47062-14021

TE71..GT..GEN;CE70,TE71..EUG;TE72..(DX,SE)..(ARL,EUR)

 1
47496 - PLUG, HOLE(FOR REAR BRAKE)
47491-20011

AE71,CE70,KE70,TE7#

 2
47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)
47051-22031

TE71..GT;TE72..ARL,EUR

WHEEL CYLINDER ID=19.05

 4
47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)
47051-22031

TE71..GT;TE72..ARL,EUR

WHEEL CYLINDER ID=19.05

 4
47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR)
47547-20010

AE71,CE70,KE70,TE7#

 2
47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
31478-30010

AE71,CE70,KE70,TE7#

 2
47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
47550-19125

TE71..GT;TE72..ARL,EUR

ID=19.05

 1
47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)
47509-12010

TE71..GT;TE72..ARL,EUR

WHEEL CYLINDER ID=19.05

 2
47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
47550-19125

TE71..GT;TE72..ARL,EUR

ID=19.05

 1
47601 - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)
47601-14010

TE71..GT..GEN;CE70,TE71..EUG;TE72..(DX,SE)..(ARL,EUR)

 1
47601B - SHIM, REAR PARKING BRAKE SHOE LEVER
90564-08152

AE71,CE70,KE70,TE7#

T=0.9,T=0.9

 2
90564-08172

AE71,CE70,KE70,TE7#

T=0.2,T=0.2

 2
90564-08173

AE71,CE70,KE70,TE7#

T=0.4,T=0.4

 2
90564-08150

AE71,CE70,KE70,TE7#

T=0.3,T=0.3

 2
90564-08151

AE71,CE70,KE70,TE7#

T=0.6,T=0.6

 2
90564-08174

AE71,CE70,KE70,TE7#

T=0.5,T=0.5

 2
47601C - WASHER, C(FOR REAR BRAKE)
90213-06013

AE71,CE70,KE70,TE7#

T=1.2

 4
47601C - WASHER, C(FOR REAR BRAKE)
90213-06013

AE71,CE70,KE70,TE7#

T=1.2

 4
47602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)
47602-14010

TE71..GT..GEN;CE70,TE71..EUG;TE72..(DX,SE)..(ARL,EUR)

 1
47653 - LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER)
47655-14010

TE71..GT..GEN;CE70,TE71..EUG;TE72..(DX,SE)..(ARL,EUR)

 2
47654 - LINING, REAR BRAKE SHOE(FOR REAR OR LOWER)
47655-14010

TE71..GT..GEN;CE70,TE71..EUG;TE72..(DX,SE)..(ARL,EUR)

 2
47663 - LEVER, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)
47643-20020

TE71..GT..GEN;CE70,TE71..EUG;TE72..(DX,SE)..(ARL,EUR)

 1
47664 - LEVER, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)
47644-20020

TE71..GT..GEN;CE70,TE71..EUG;TE72..(DX,SE)..(ARL,EUR)

 1
Common parts
90119-06084
