TE71RG-EYKRSN (1982)

Toyota Corolla

Production Nov 1982 - May 1984
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7908-8305)DV,SED,WG..2D ; (8305-8309)2D..ARL

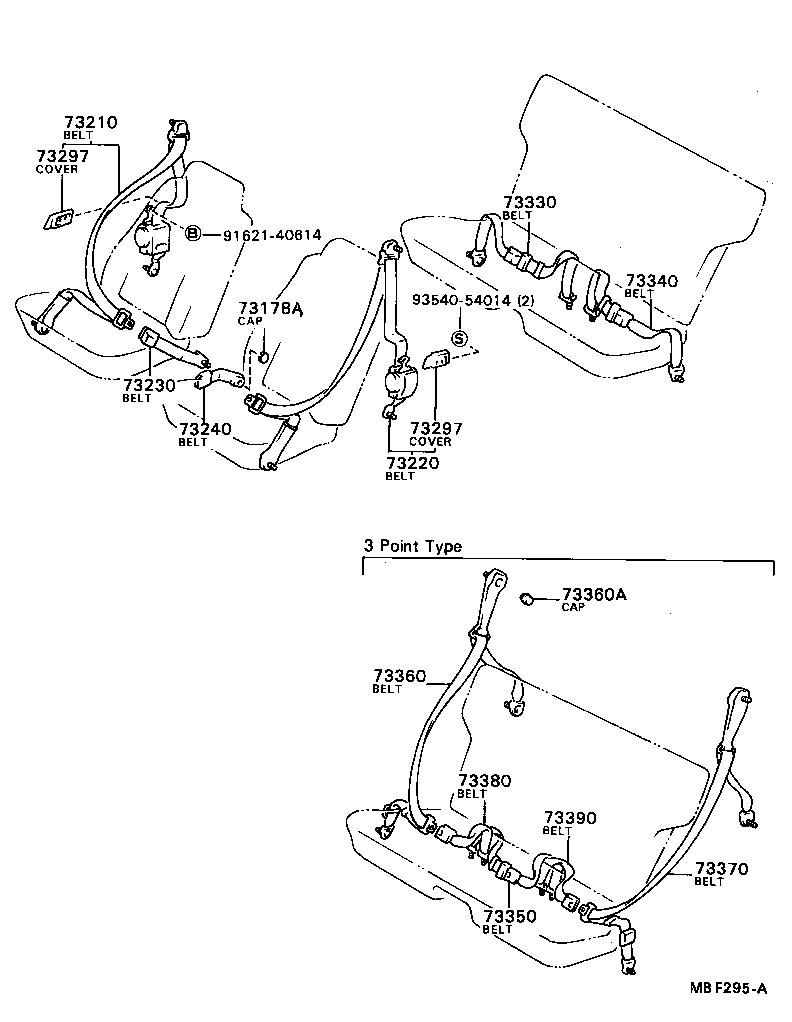

Click highlighted areas on diagram

diagram 73178A 73178A 73210 73220 73230 73240 73297 73297 73330 73340 73350 73360 73360A 73370 73380 73390 9095001113 9162140614 9354054014
Part # Description Qty Price
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-1238101

KE70,TE71..2D..STD..(GEN,SA)

BLACK,BLACK,TRIM0#,2#

 1
73210-1238116

KE70,TE71..2D..STD..(GEN,SA)

DARK BROWN,BROWN,TRIM4#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-1229101

KE70,TE71..2D..STD..(GEN,SA)

BLACK,BLACK,TRIM0#,2#

 1
73220-1229116

KE70,TE71..2D..STD..(GEN,SA)

DARK BROWN,BROWN,TRIM4#

 1
73297 - COVER, QUARTER TRIM OR CENTER PILLAR BELT HOLE
73297-1201001

CE70,KE70,TE71..(DV,SED,WG)..2D

RH,BLACK,BLACK,TRIM0#,2#

 1
73298-1201001

CE70,KE70,TE71..(DV,SED,WG)..2D

LH,BLACK,BLACK,TRIM0#,2#

 1
73297 - COVER, QUARTER TRIM OR CENTER PILLAR BELT HOLE
73297-1201001

CE70,KE70,TE71..(DV,SED,WG)..2D

RH,BLACK,BLACK,TRIM0#,2#

 1
73298-1201001

CE70,KE70,TE71..(DV,SED,WG)..2D

LH,BLACK,BLACK,TRIM0#,2#

 1
Common parts
90950-01113
91621-40614
93540-54014

(8305-8309)2D..STD..EUR,GEN,SA ; (8309- )DV

Click highlighted areas on diagram

diagram 73178A 73210 73220 73230 73240 73297 73297 73330 73340 73350 73360 73360A 73370 73380 73390 9162140614 9354054014
Part # Description Qty Price
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-1238101

KE70,TE71..2D..STD..(GEN,SA)

BLACK,BLACK,TRIM0#,2#

 1
73210-1238116

KE70,TE71..2D..STD..(GEN,SA)

DARK BROWN,BROWN,TRIM4#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-1229101

KE70,TE71..2D..STD..(GEN,SA)

BLACK,BLACK,TRIM0#,2#

 1
73220-1229116

KE70,TE71..2D..STD..(GEN,SA)

DARK BROWN,BROWN,TRIM4#

 1
73297 - COVER, QUARTER TRIM OR CENTER PILLAR BELT HOLE
73297-1201001

CE70,KE70,TE71..(DV,SED,WG)..2D

RH,BLACK,BLACK,TRIM0#,2#

 1
73298-1201001

CE70,KE70,TE71..(DV,SED,WG)..2D

LH,BLACK,BLACK,TRIM0#,2#

 1
73297 - COVER, QUARTER TRIM OR CENTER PILLAR BELT HOLE
73297-1201001

CE70,KE70,TE71..(DV,SED,WG)..2D

RH,BLACK,BLACK,TRIM0#,2#

 1
73298-1201001

CE70,KE70,TE71..(DV,SED,WG)..2D

LH,BLACK,BLACK,TRIM0#,2#

 1
Common parts
91621-40614
93540-54014
